Air Cleaner Inlet Duct Replacement

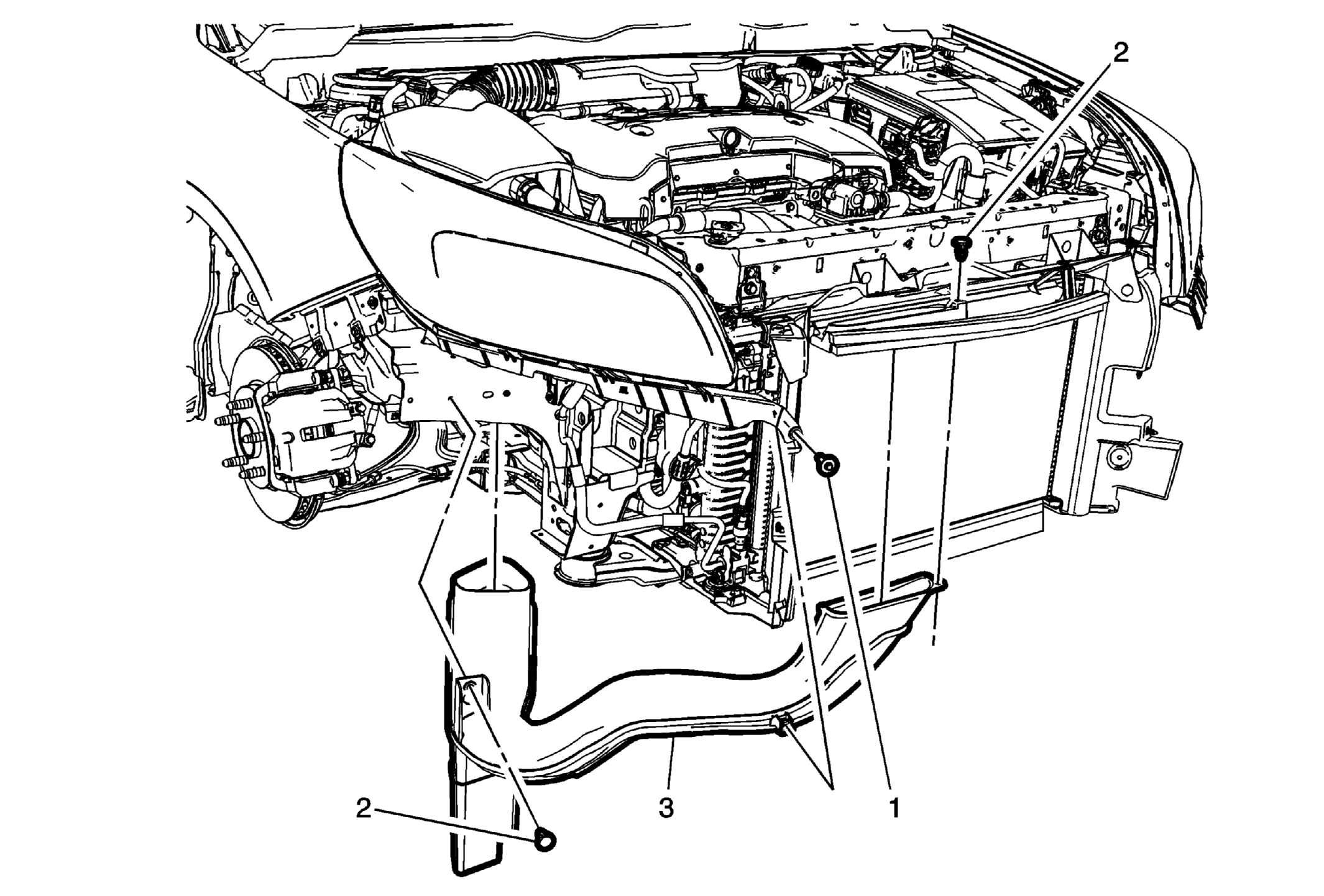

Fig 1: Air Cleaner Inlet Duct

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the right front headlamp. Refer to Headlamp Replacement (Left Side) and Headlamp Replacement (Right Side) .
1	Air Cleaner Inlet Duct Fastener CAUTION: Refer to Fastener Caution .
2	Air Cleaner Inlet Duct Retainer (Qty: 2)
3	Air Cleaner Inlet Duct Procedure Disconnect the air cleaner inlet duct from the front intake air deflector.
