Headlamp Replacement (Right Side)

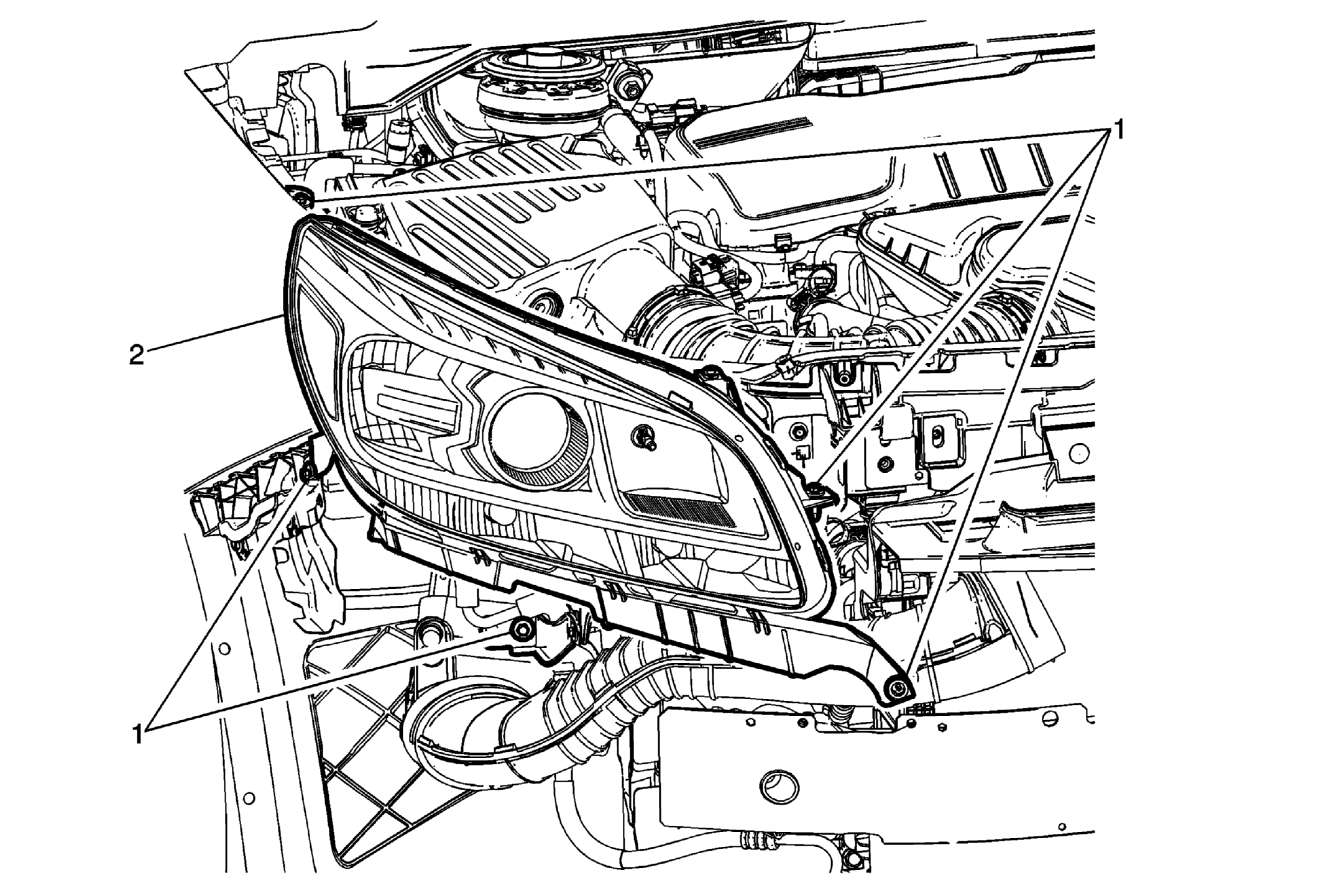

Fig 1: Headlamp Capsule (HID, Right Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Headlamp Assembly Screw (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Headlamp Assembly Procedure Disconnect the electrical connector bulb harness and remove the headlamp assembly. Aim the headlamps after replacement. Refer to Headlamp Aiming .

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .

Headlamp Assembly Screw (Qty: 5)

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Headlamp Assembly

Procedure

Disconnect the electrical connector bulb harness and remove the headlamp assembly.
Aim the headlamps after replacement. Refer to Headlamp Aiming .
