Radiator Air Side Baffle and Deflector Replacement (Right LTG)

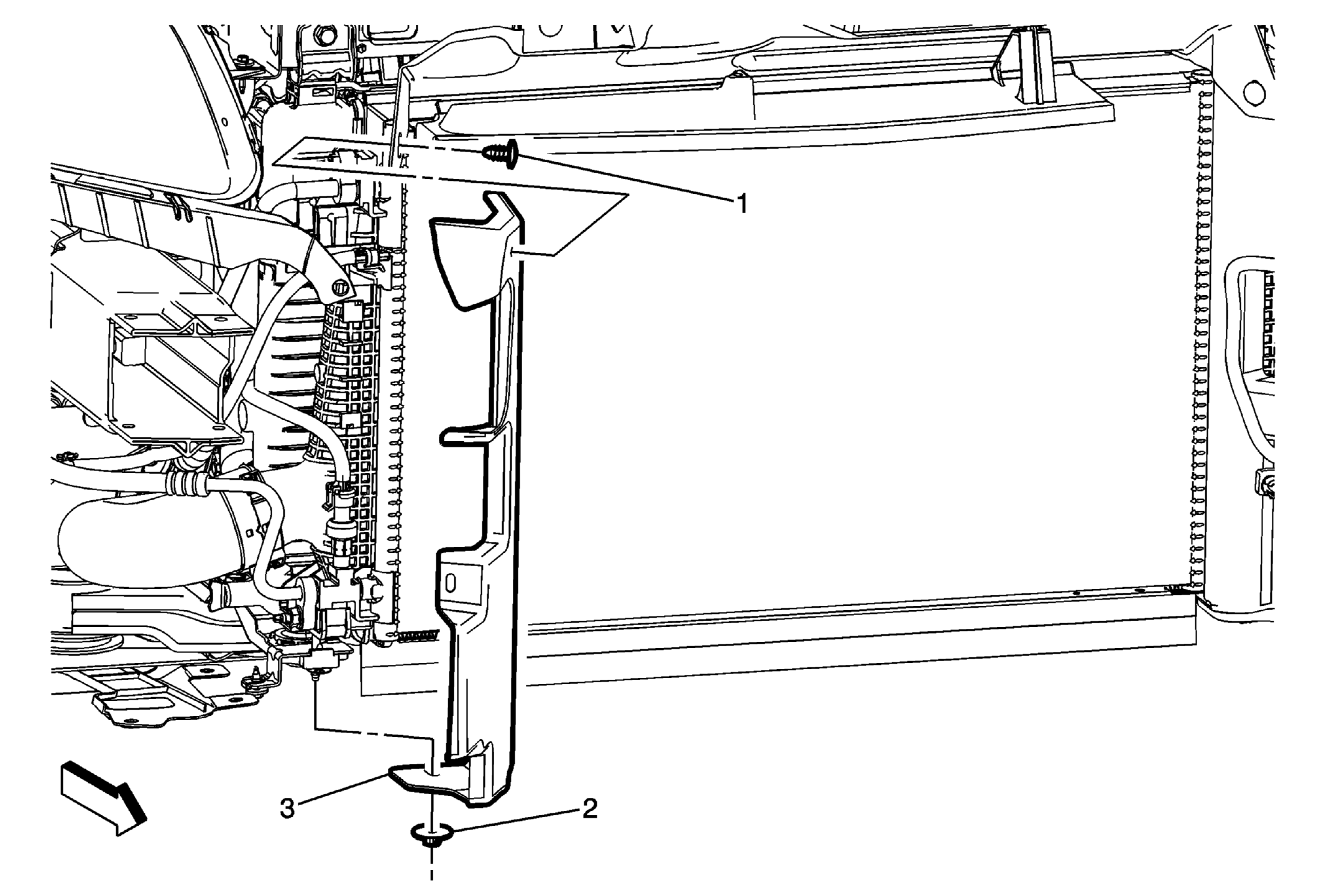

Fig 1: Radiator Air Side Baffle and Deflector (Right LTG)
GM2868081Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front bumper impact bar. Refer to Front Bumper Impact Bar Replacement .
  2. Air cleaner inlet duct. Refer to Air Cleaner Inlet Duct Replacement .
1 Radiator Air Side Baffle and Deflector Retainer
2 Radiator Air Side Baffle and Deflector Retainer
3 Radiator Air Side Baffle and Deflector
