Radiator Air Side Baffle and Deflector Replacement (Right LKW)

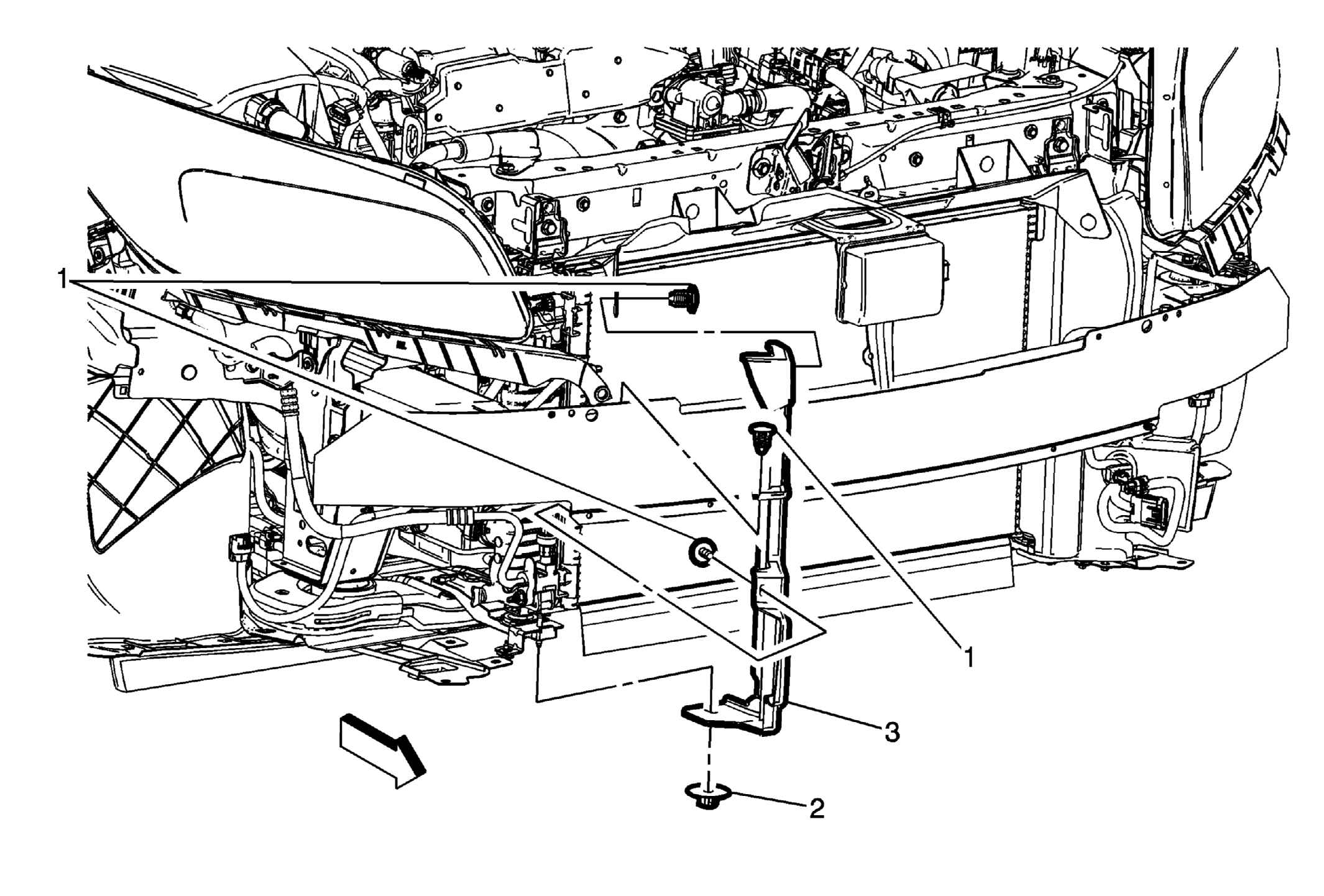

Fig 1: Radiator Air Side Baffle & Deflector (Right LKW)
GM3469677Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
  2. Remove the air cleaner inlet duct. Refer to Air Cleaner Inlet Duct Replacement .
1 Radiator Air Side Baffle and Deflector Retainer (Qty: 3)
2 Radiator Air Side Baffle and Deflector Retainer
CAUTION: Refer to Fastener Caution .
3 Radiator Air Side Baffle and Deflector
