Ambient Air Temperature Gauge Sensor Replacement (With VRI)

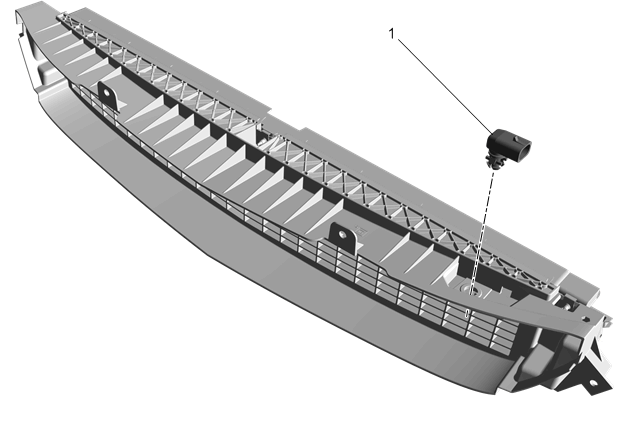

Fig 1: Ambient Air Temperature Gauge Sensor (With VRI)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Bumper Shutter Replacement
1	Ambient Air Temperature Gauge Sensor Procedure  Squeeze the tabs on the ambient air temperature gauge sensor to remove.
