Rear Bumper Fascia Center Bracket Replacement

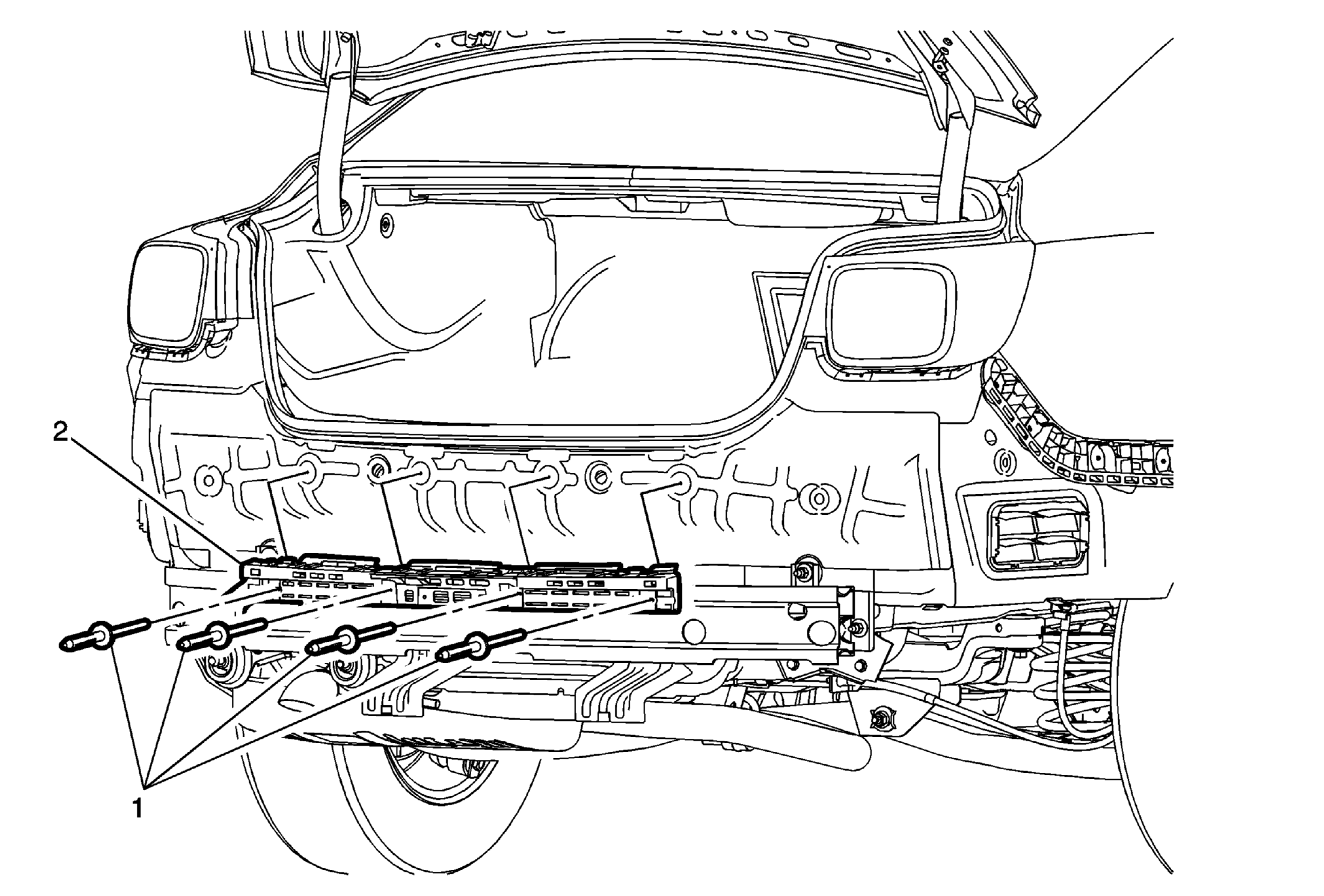

Fig 1: Rear Bumper Fascia Center Bracket & Rivets
GM2555886Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING: Refer to Eye Protection Warning .

Preliminary Procedures

  1. Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
  2. Remove the ignition lock key transmitter antenna - rear bumper fascia. Refer to Ignition Lock Key Transmitter Antenna Replacement - Rear Bumper Fascia .
1 Rear Bumper Fascia Center Bracket Rivet (Qty: 4)
Special Tools
BO-594-A  Hand Rivet Tongs
For equivalent regional tools, refer to Special Tools .
2 Rear Bumper Fascia Center Bracket
Procedure
Reposition the electrical connectors from the rear bumper fascia center bracket.
