Ignition Lock Key Transmitter Antenna Replacement - Rear Bumper Fascia

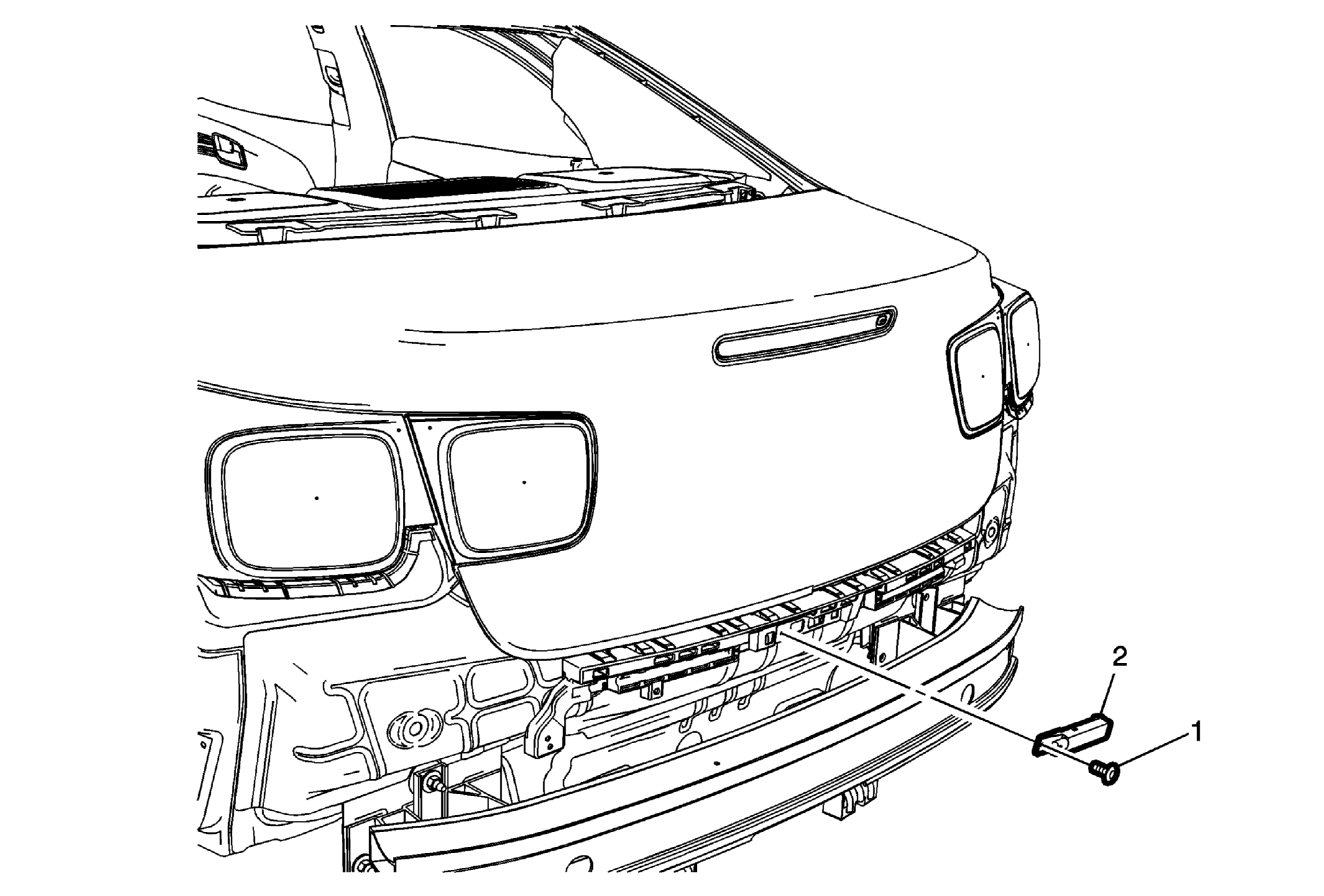

Fig 1: Ignition Lock Key Transmitter Antenna - Rear Bumper Fascia

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Eye Protection Warning . Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Ignition Lock Key Transmitter Antenna Rivet
2	Ignition Lock Key Transmitter Antenna Procedure  Disconnect the electrical connector.
