Front Bumper Lower Impact Bar Replacement

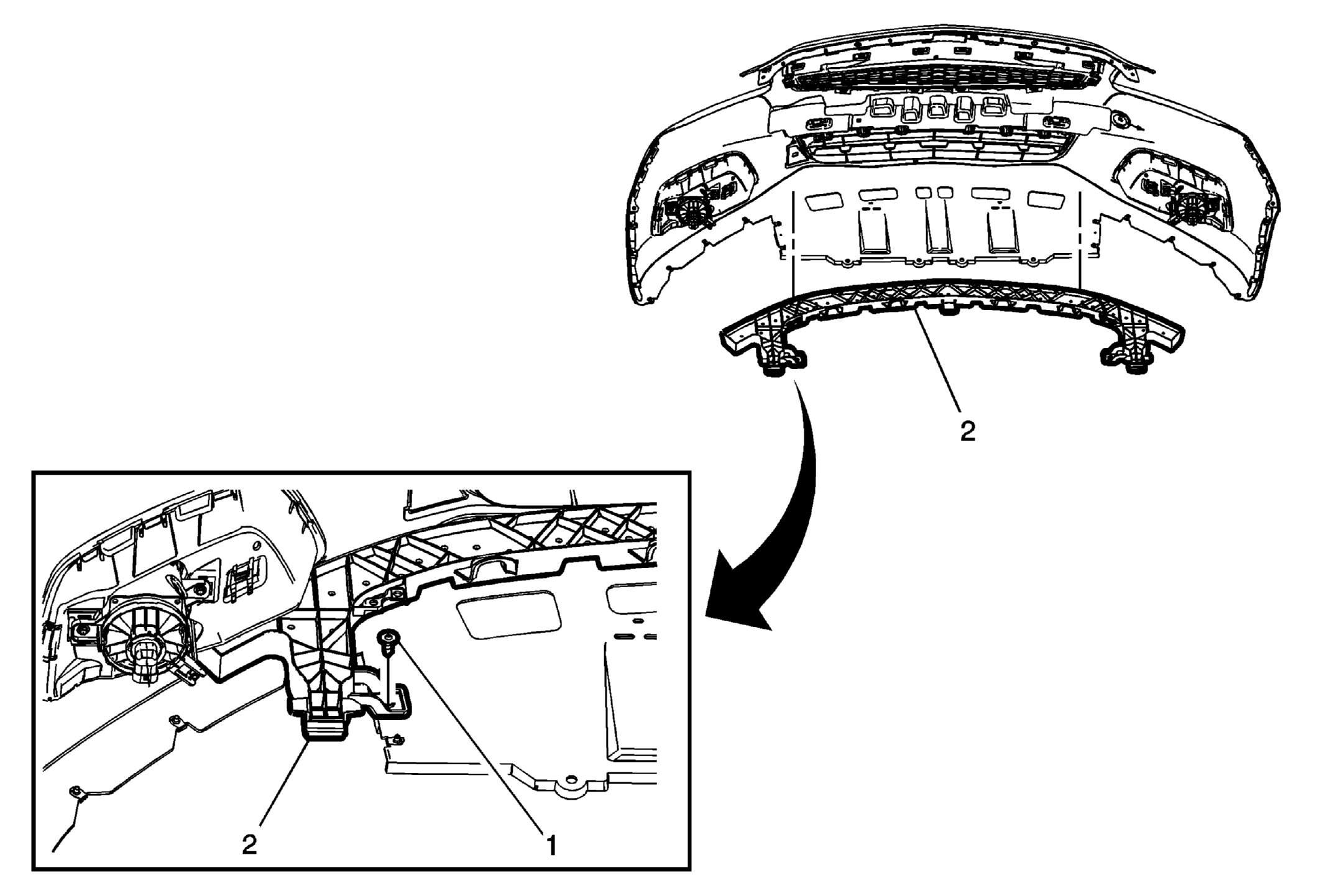

Fig 1: Front Bumper Lower Impact Bar & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia air deflector. Refer to Front Bumper Fascia Air Deflector Replacement .
1	Front Bumper Lower Impact Bar Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  3 N.m (36 lb in)
2	Front Bumper Lower Impact Bar Procedure  Reposition the electrical connectors and hoses from the lower impact bar.
