Front Bumper Fascia Air Deflector Replacement

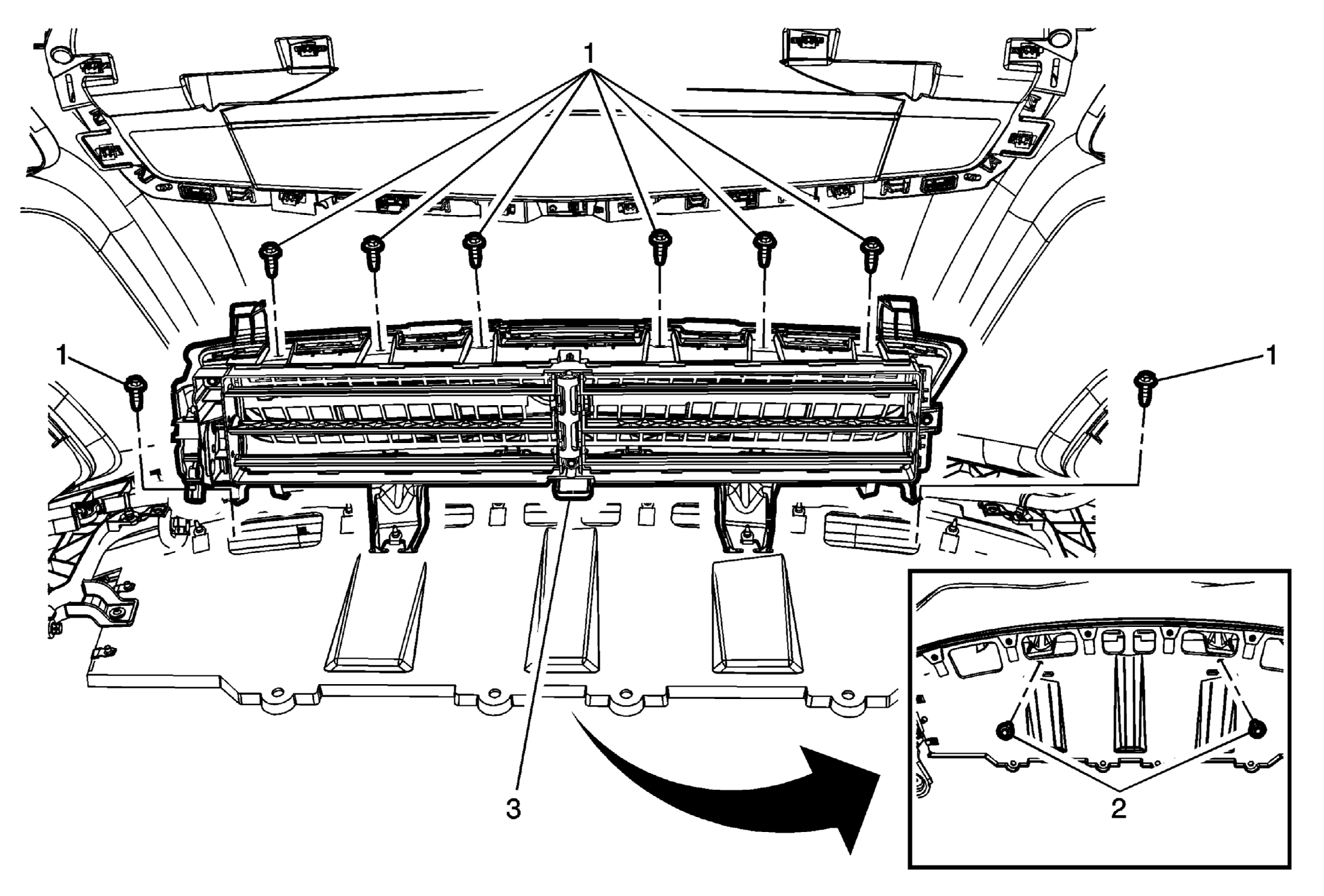

Fig 1: Front Bumper Fascia Air Deflector & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia energy upper absorber. Refer to Front Bumper Fascia Energy Upper Absorber Replacement .
1	Front Bumper Fascia Air Deflector Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten  2 N.m (18 lb in)
2	Front Bumper Fascia Air Deflector Nut (Qty: 2) Tighten  2 N.m (18 lb in)
3	Front Bumper Fascia Air Deflector Procedure  Disconnect the electrical connector from the actuator.
