Front Bumper Lower Impact Bar Bracket Replacement

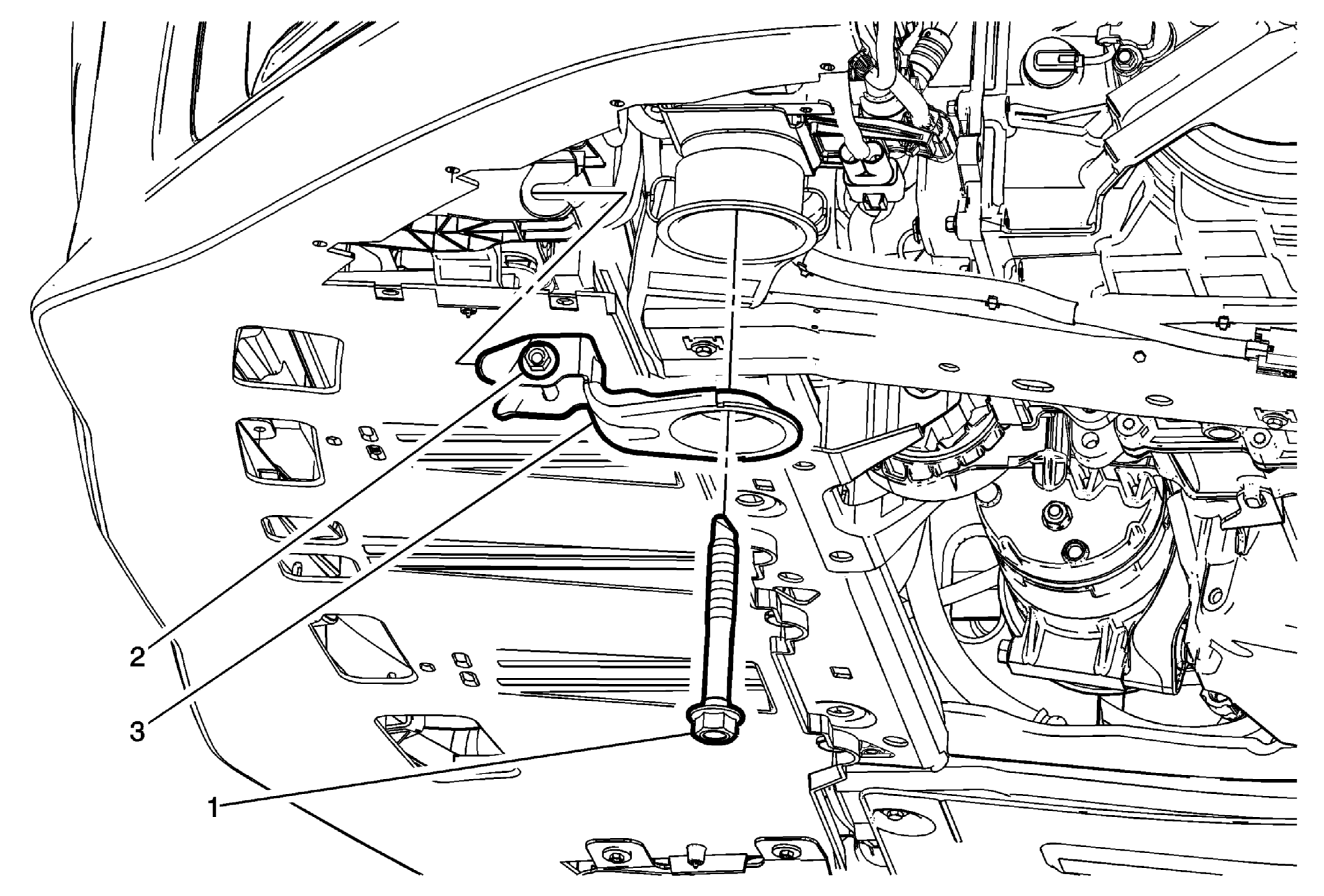

Fig 1: Front Bumper Lower Impact Bar Bracket & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front compartment splash shield. Refer to Front Compartment Splash Shield Replacement . Support the front suspension frame front crossmember.
1	Front Bumper Lower Impact Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 160 N.m (118 lb ft)
2	Front Bumper Lower Impact Bracket Bolt Procedure Loosen the bolt only. Tighten 25 N.m (18 lb ft)
3	Front Bumper Lower Impact Bracket Procedure Rotate the lower impact bar bracket from the back, then down and back.
