Front Compartment Splash Shield Replacement

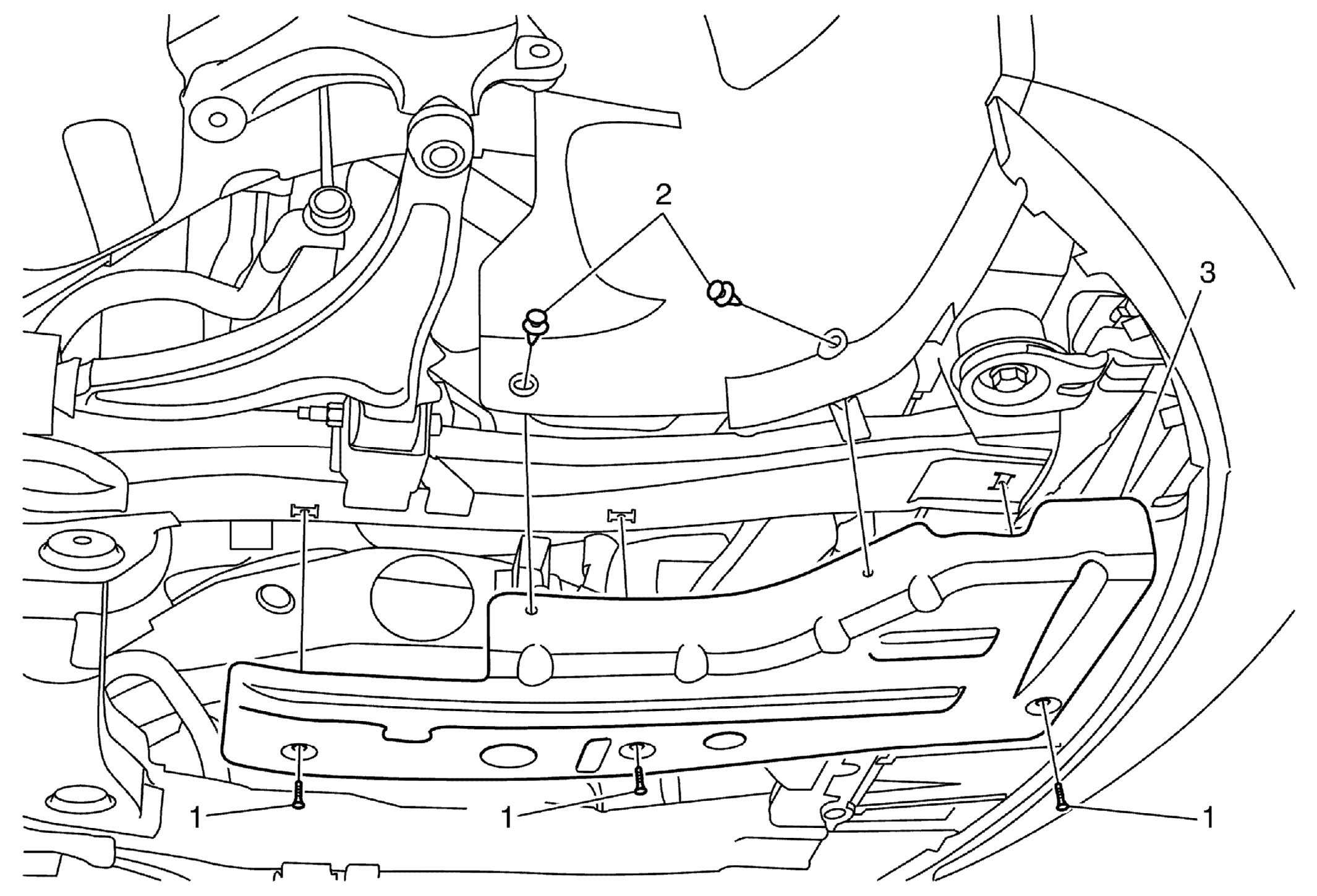

Fig 1: Front Compartment Splash Shield & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Remove the front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement (Left Side) and Front Wheelhouse Front Liner Replacement (Right Side) .
1	Front Compartment Splash Shield Fastener (Qty 3) CAUTION: Refer to Fastener Caution .
2	Front Compartment Splash Shield Retainer (Qty 2)
3	Front Compartment Splash Shield
