Front Bumper Fascia Center Support Replacement

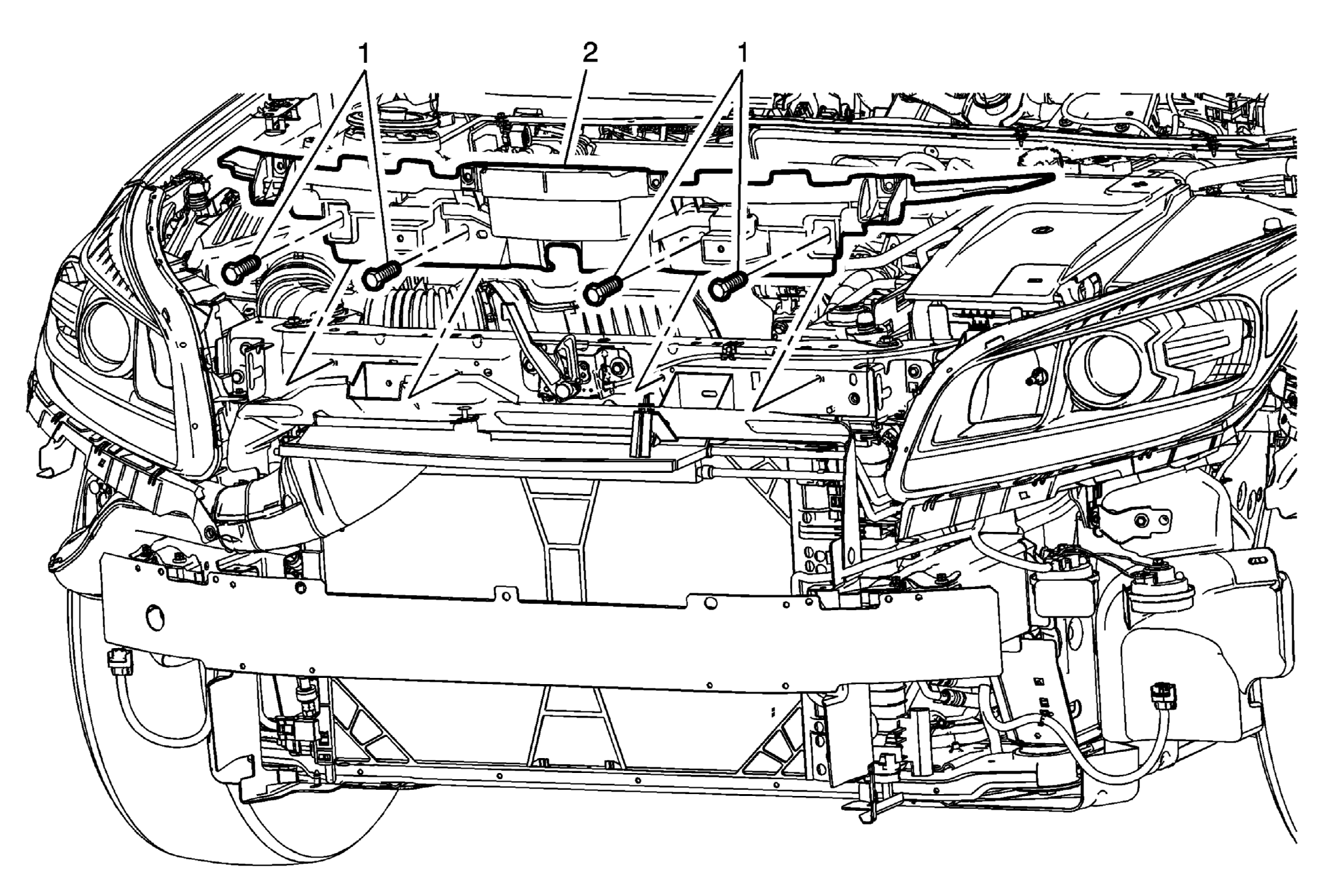

Fig 1: Front Bumper Fascia Center Support & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the radiator air upper baffle and deflector upper 2 retainers. Refer to Radiator Air Upper Baffle and Deflector Replacement (LTG) and Radiator Air Upper Baffle and Deflector Replacement (LKW) .
1	Front Bumper Fascia Center Support Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Front Bumper Fascia Center Support

Callout

Component Name

Preliminary Procedures

Front Bumper Fascia Center Support Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten
6 N.m (53 lb in)

Front Bumper Fascia Center Support
