Radiator Air Upper Baffle and Deflector Replacement (LKW)

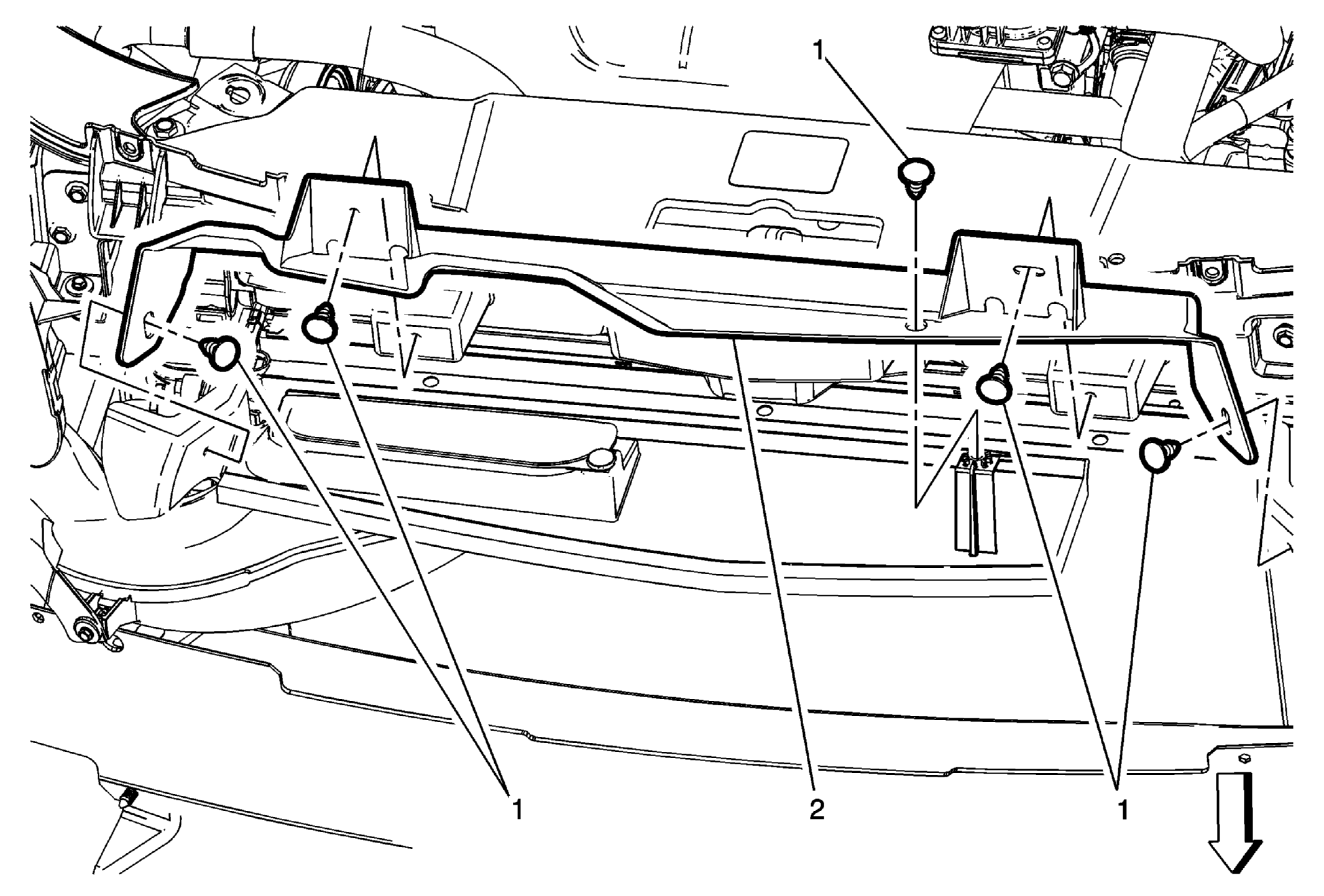

Fig 1: Radiator Air Upper Baffle & Deflector (LKW)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front fascia. Refer to Front Bumper Fascia Replacement .
1	Radiator Air Upper Baffle and Deflector Retainers (Qty 5)
2	Radiator Air Upper Baffle and Deflector
