Rear Seat Center Shoulder Belt Replacement

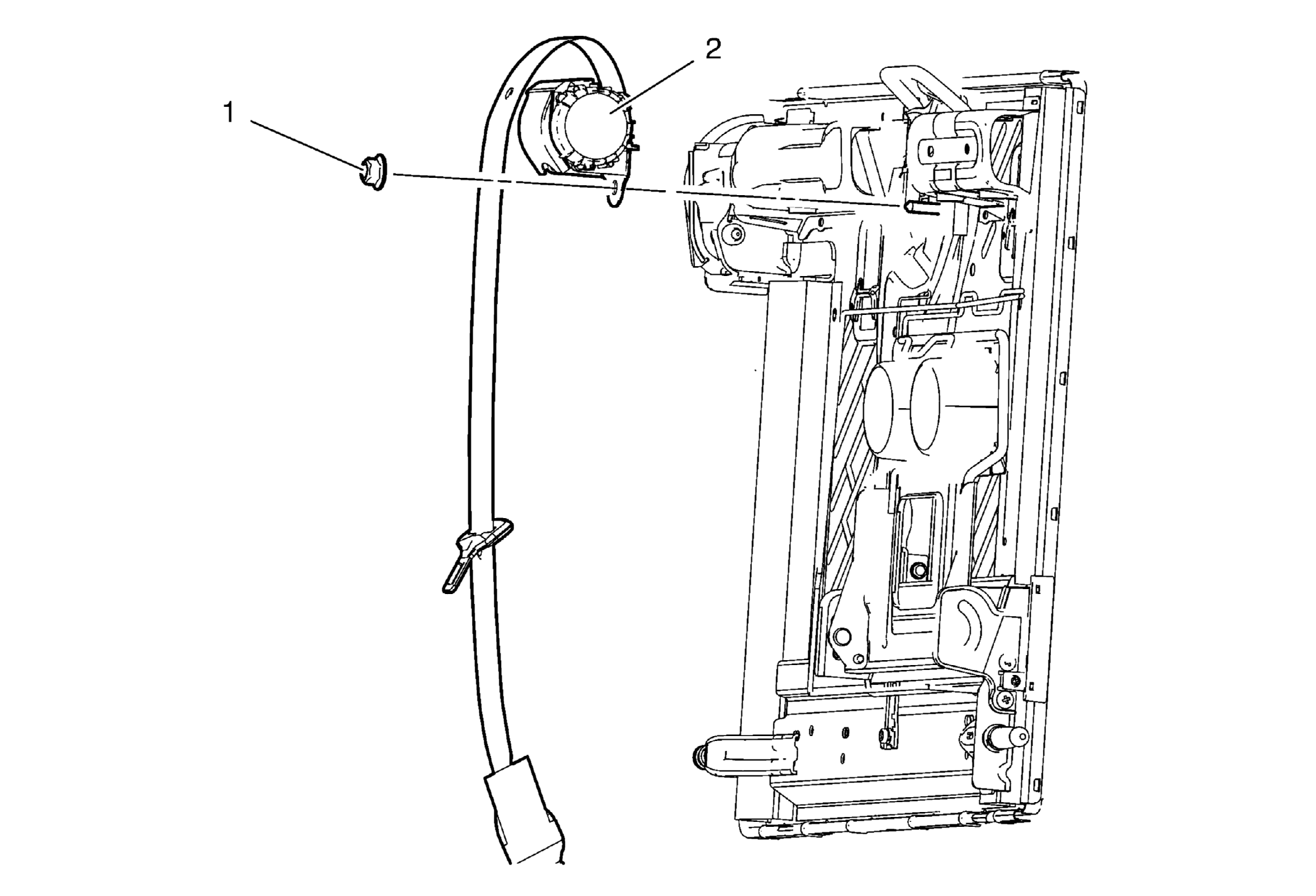

Fig 1: Rear Seat Center Shoulder Belt And Rear Seat Center Shoulder Belt Nut

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the right rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement - Right Side .
1	Rear Seat Center Shoulder Belt Nut CAUTION: Refer to Fastener Caution . Tighten  45 N.m (33 lb ft)
2	Rear Seat Center Shoulder Belt
