Instrument Panel Lower Airbag Replacement - Driver Side

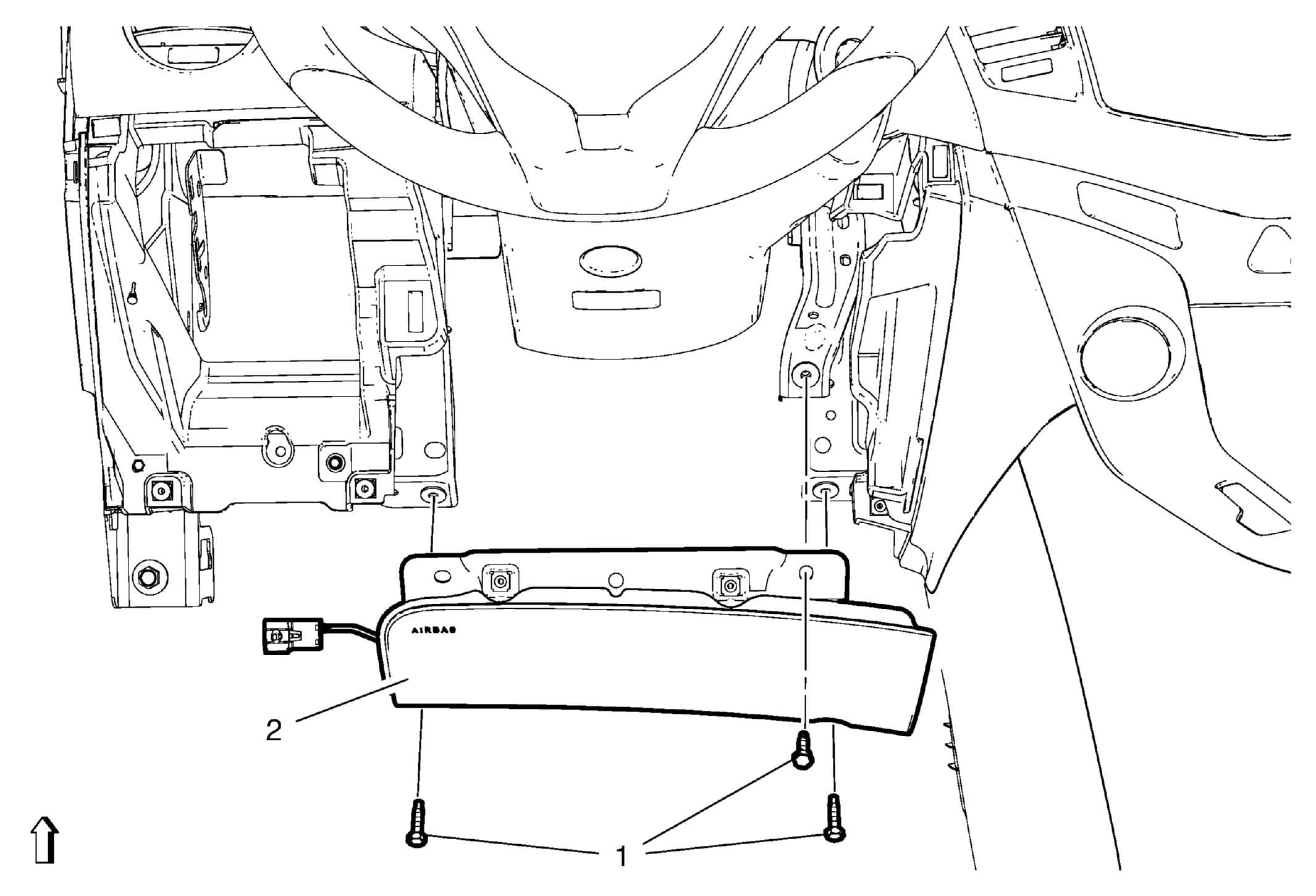

Fig 1: Instrument Panel Lower Airbag - Driver Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the instrument panel lower trim pad cover. Refer to Instrument Panel Lower Trim Pad Cover Replacement (without Knee Airbag) and Instrument Panel Lower Trim Pad Cover Replacement (with Knee Airbag) .
1	Inflatable Restraint Instrument Panel Lower Module Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Inflatable Restraint Instrument Panel Lower Module Procedure Disconnect electrical connector. For proper handling and scrapping, refer to Inflatable Restraint Module Handling and Scrapping .

Callout

Component Name

WARNING: Refer to SIR Warning .

Preliminary Procedures

Inflatable Restraint Instrument Panel Lower Module Fastener (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Inflatable Restraint Instrument Panel Lower Module

Procedure

Disconnect electrical connector.
For proper handling and scrapping, refer to Inflatable Restraint Module Handling and Scrapping .
