Instrument Panel Airbag Arming Status Display Replacement

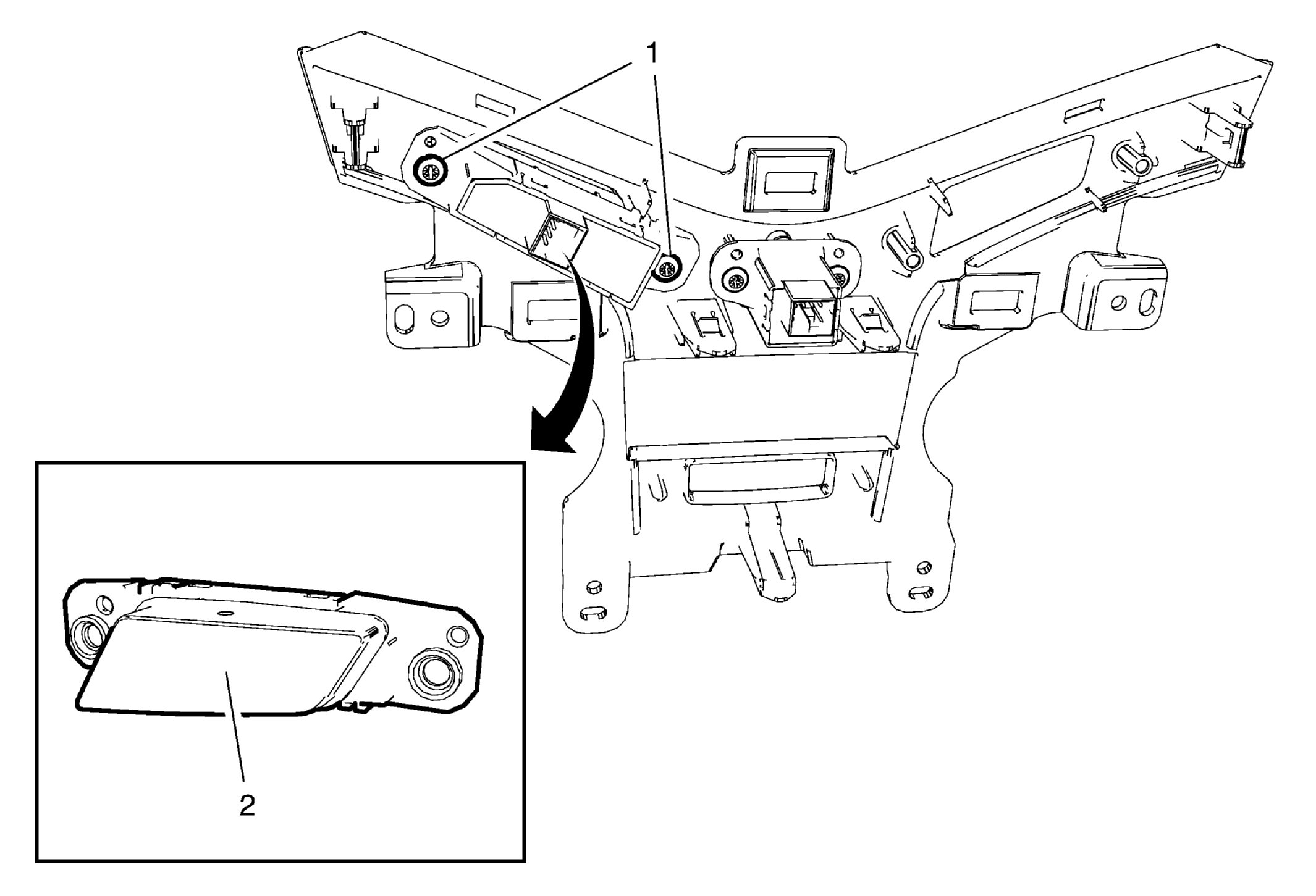

Fig 1: Inflatable Restraint Instrument Panel Module Indicator And Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the instrument panel accessory bezel. Refer to Instrument Panel Accessory Bezel Replacement .
1	Instrument Panel Airbag Arming Status Display Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  1.5 N.m (13 lb in)
2	Instrument Panel Airbag Arming Status Display Procedure  Disconnect electrical connector.
