Airbag Instrument Panel Module Replacement

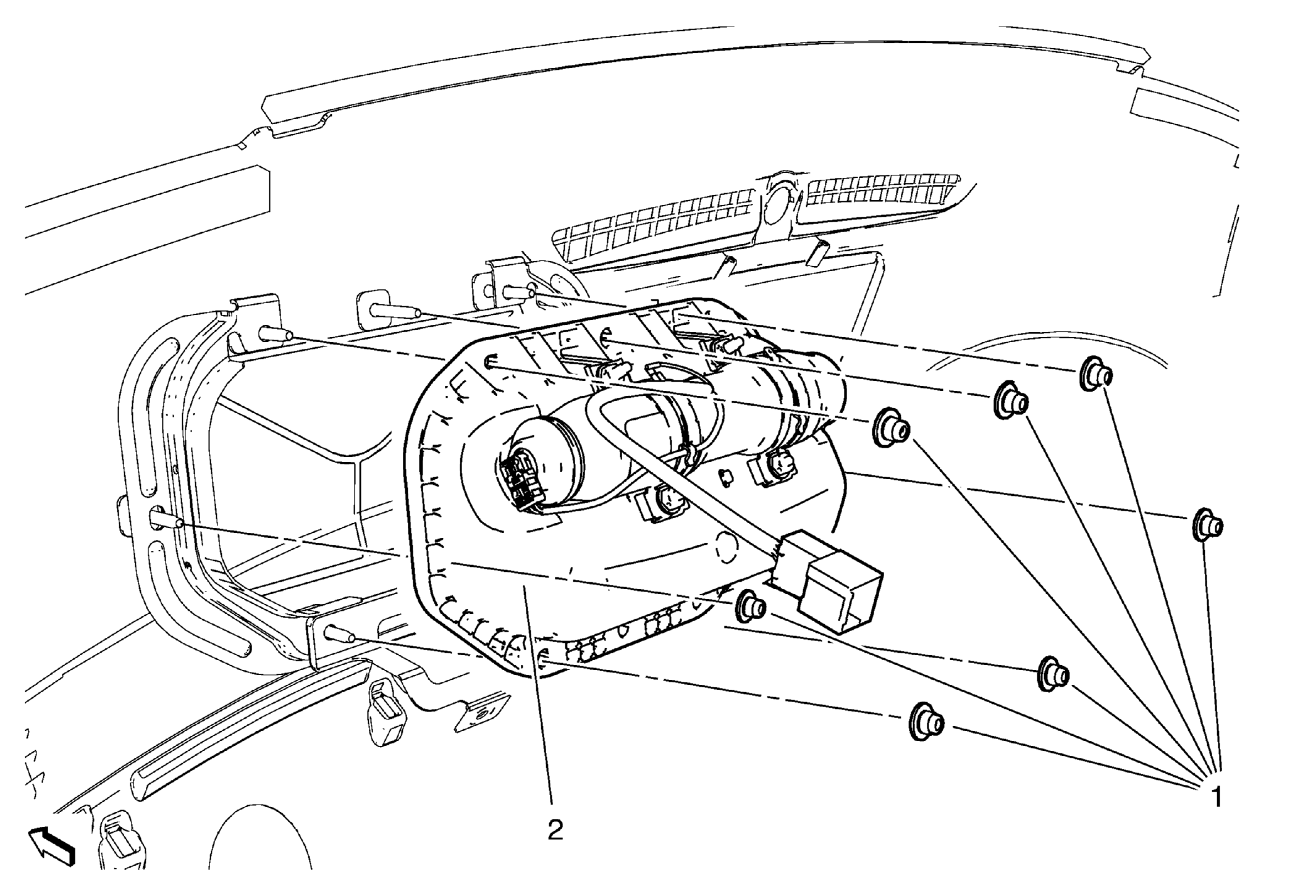

Fig 1: Instrument Panel Inflatable Restraint Module And Nut

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
1	Instrument Panel Inflatable Restraint Module Nut (Qty: 7) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Instrument Panel Inflatable Restraint Module Procedure Disconnect the electrical connectors.

Callout

Component Name

WARNING: Refer to SIR Warning .

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .

Instrument Panel Inflatable Restraint Module Nut (Qty: 7)

CAUTION: Refer to Fastener Caution .

Tighten
5 N.m (44 lb in)

Instrument Panel Inflatable Restraint Module
Procedure
Disconnect the electrical connectors.
