Windshield Defroster Nozzle Replacement

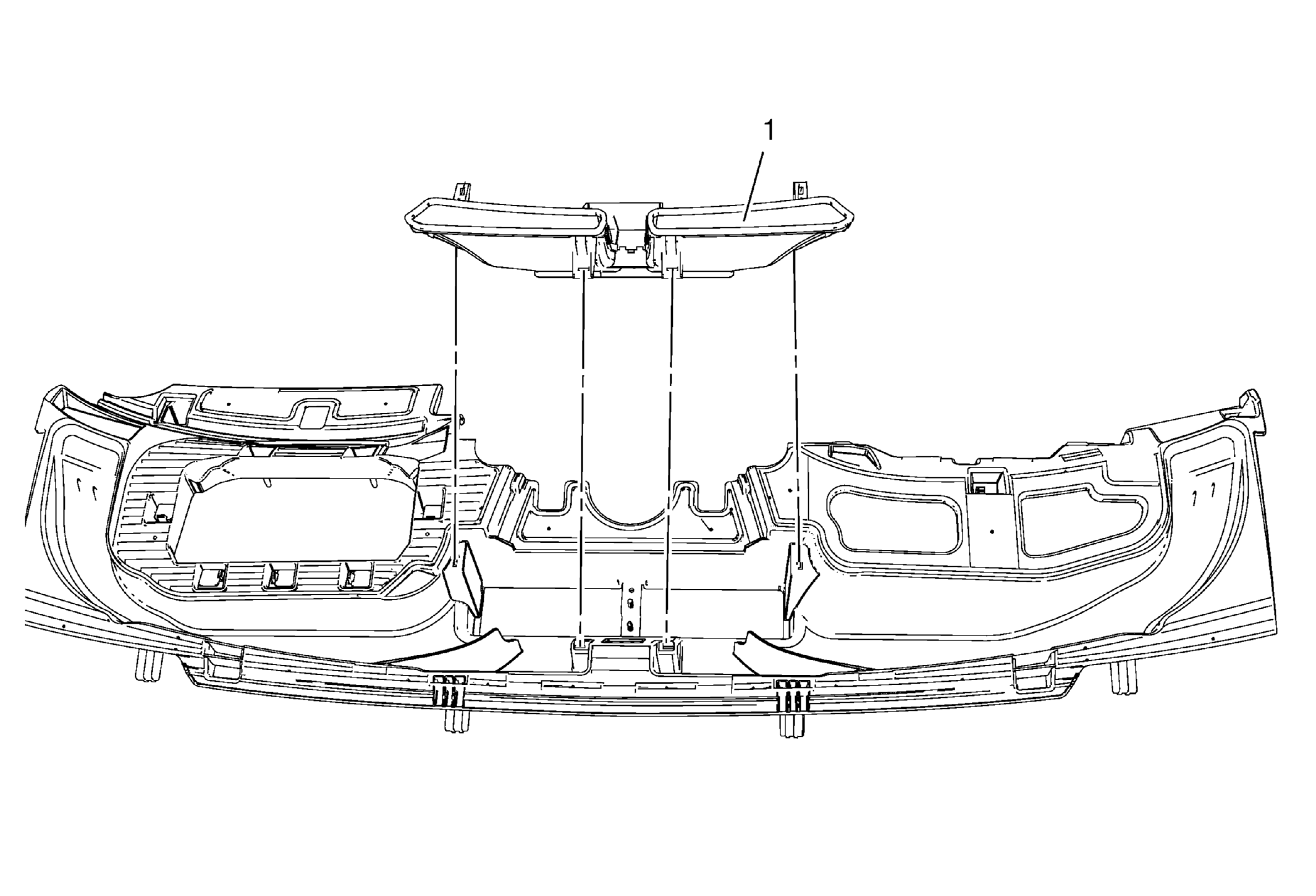

Fig 1: Windshield Defroster Nozzle
GM2027584Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove instrument panel. Refer to Instrument Panel Assembly Replacement
1 Windshield Defroster Nozzle
Procedure
Unclip from instrument panel assembly.
