Instrument Panel Outer Air Outlet Replacement - Right Side

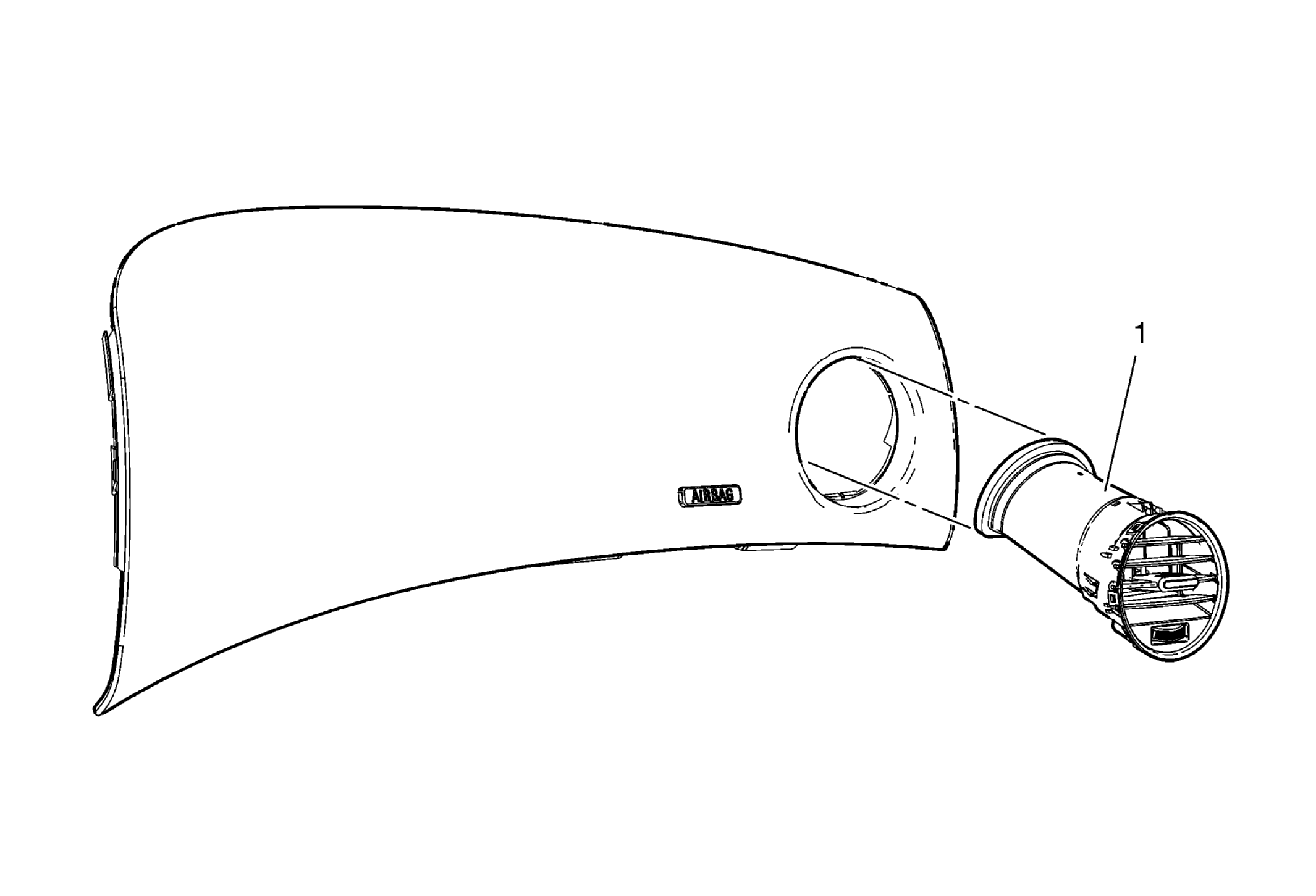

Fig 1: Instrument Panel Outer Air Outlet - Right Side
GM2027288Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement - Right Side .
1 Instrument Panel Outer Air Outlet Assembly

Procedure

  1. Remove instrument panel outer air outlet duct right side.
  2. Remove clip (Qty: 4).
