Instrument Panel Outer Air Outlet Replacement - Left Side

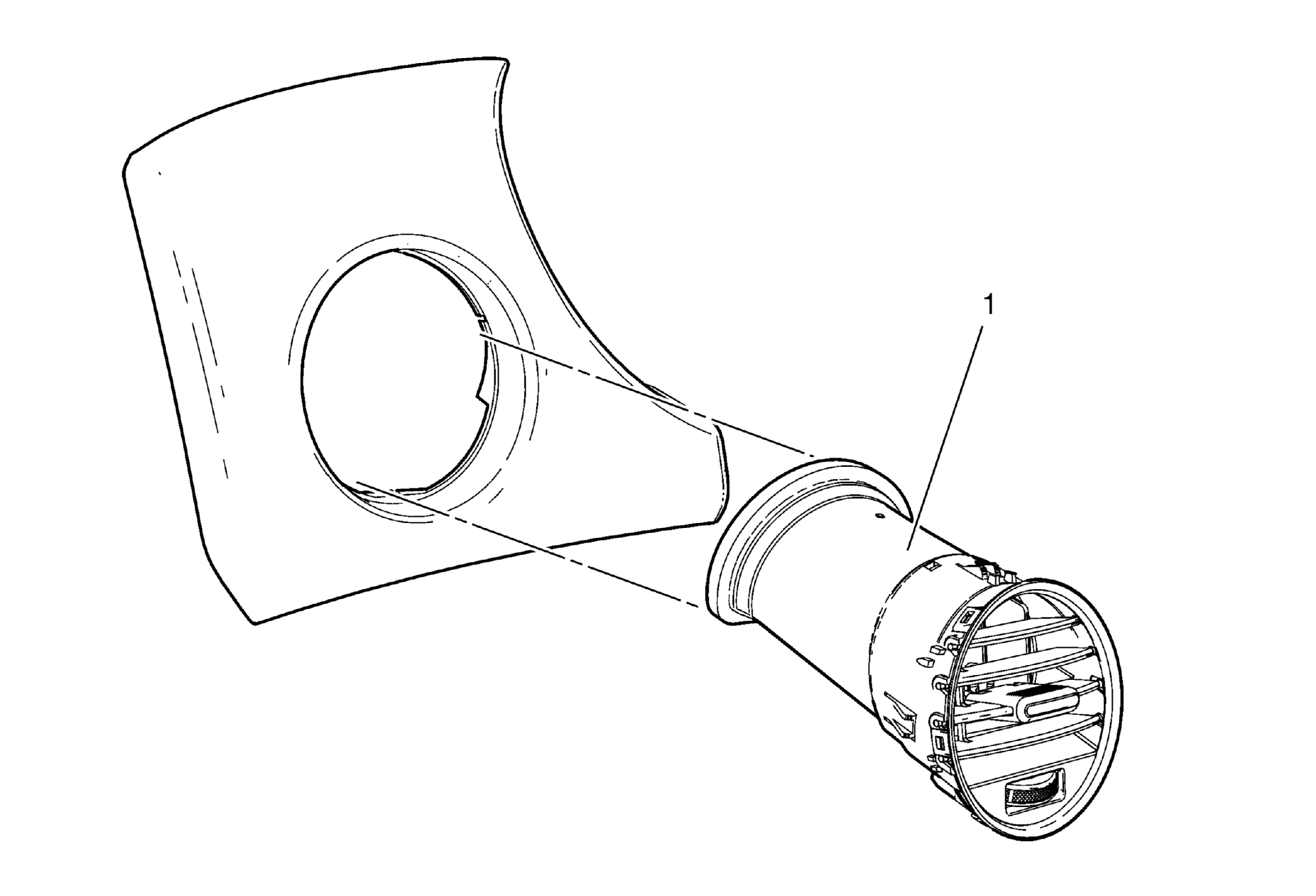

Fig 1: Instrument Panel Outer Air Outlet - Left Side
GM2027285Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement - Left Side .
1 Instrument Panel Outer Air Outlet
Procedure
Remove clip (Qty: 4).
