Instrument Panel Outer Air Outlet Duct Replacement

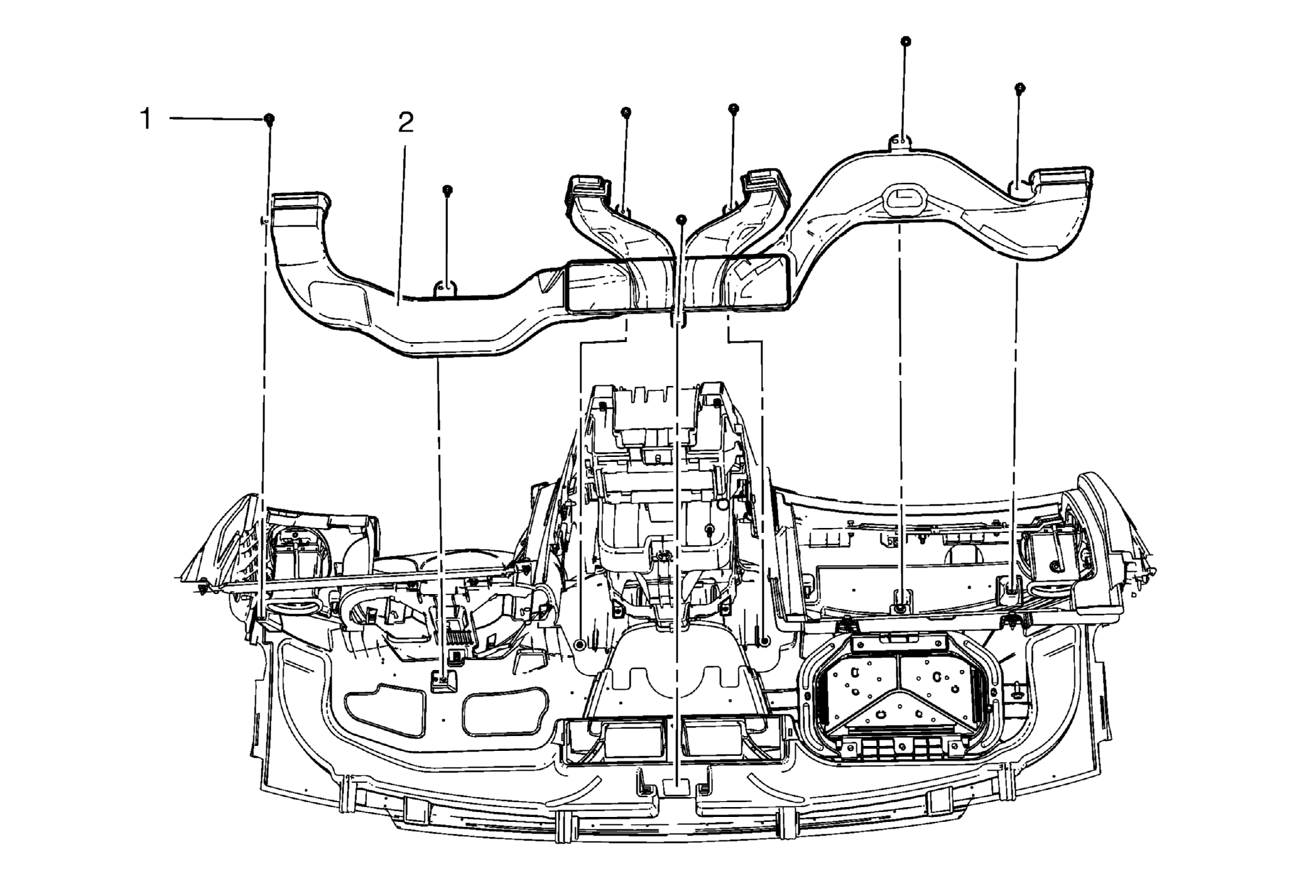

Fig 1: Instrument Panel Outer Air Outlet Duct
GM2027575Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
1 Instrument Panel Outer Air Outlet Duct Screw (Qty: 7)
CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)
2 Instrument Panel Outer Air Outlet Duct
