Instrument Panel Center Air Outlet Replacement

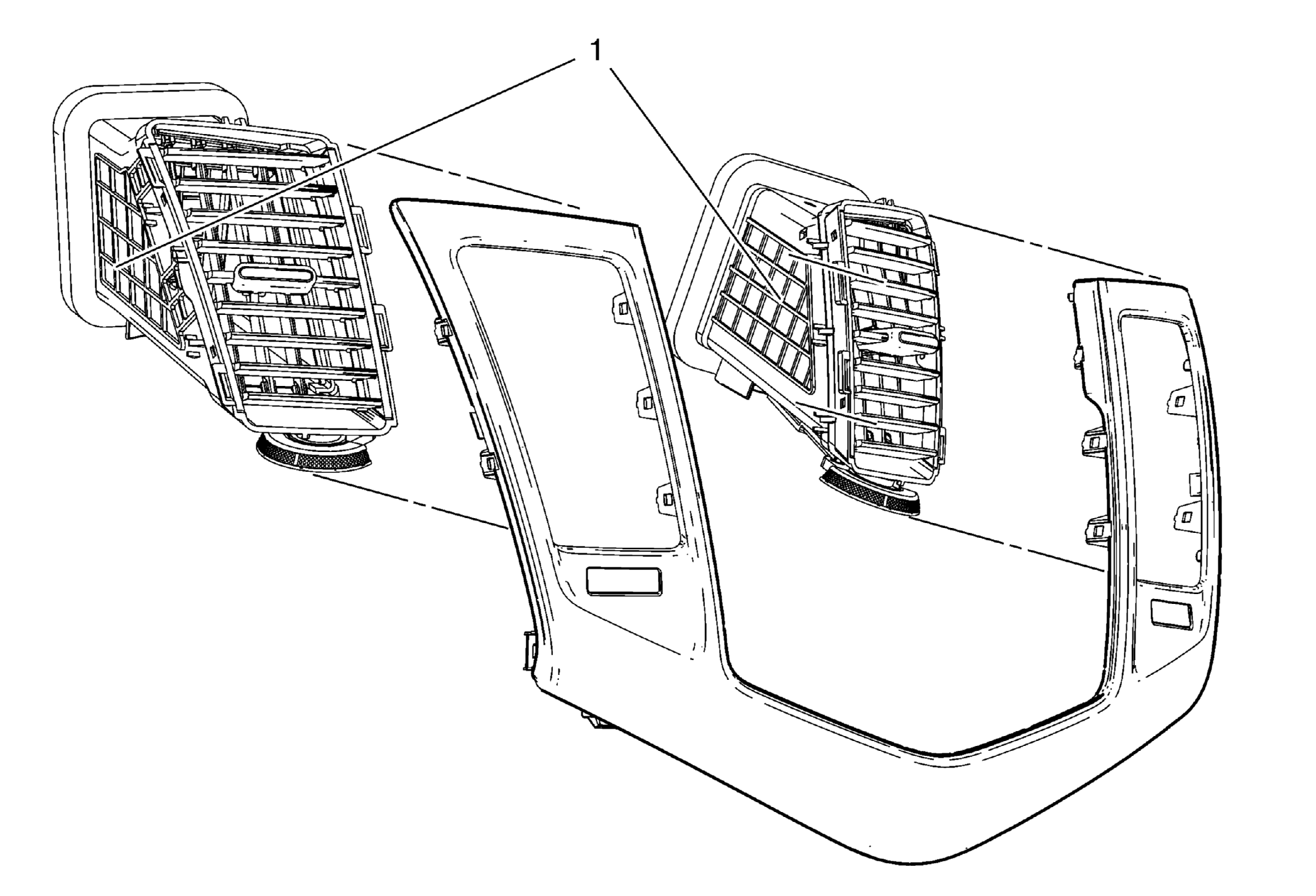

Fig 1: Instrument Panel Center Air Outlet
GM2027290Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove instrument panel center upper molding. Refer to Instrument Panel Center Upper Molding Replacement .
1 Instrument Panel Center Air Outlet
Procedure
Unclip instrument panel center air outlet from instrument panel center upper molding.
