Heater and Air Conditioning Remote Control Replacement

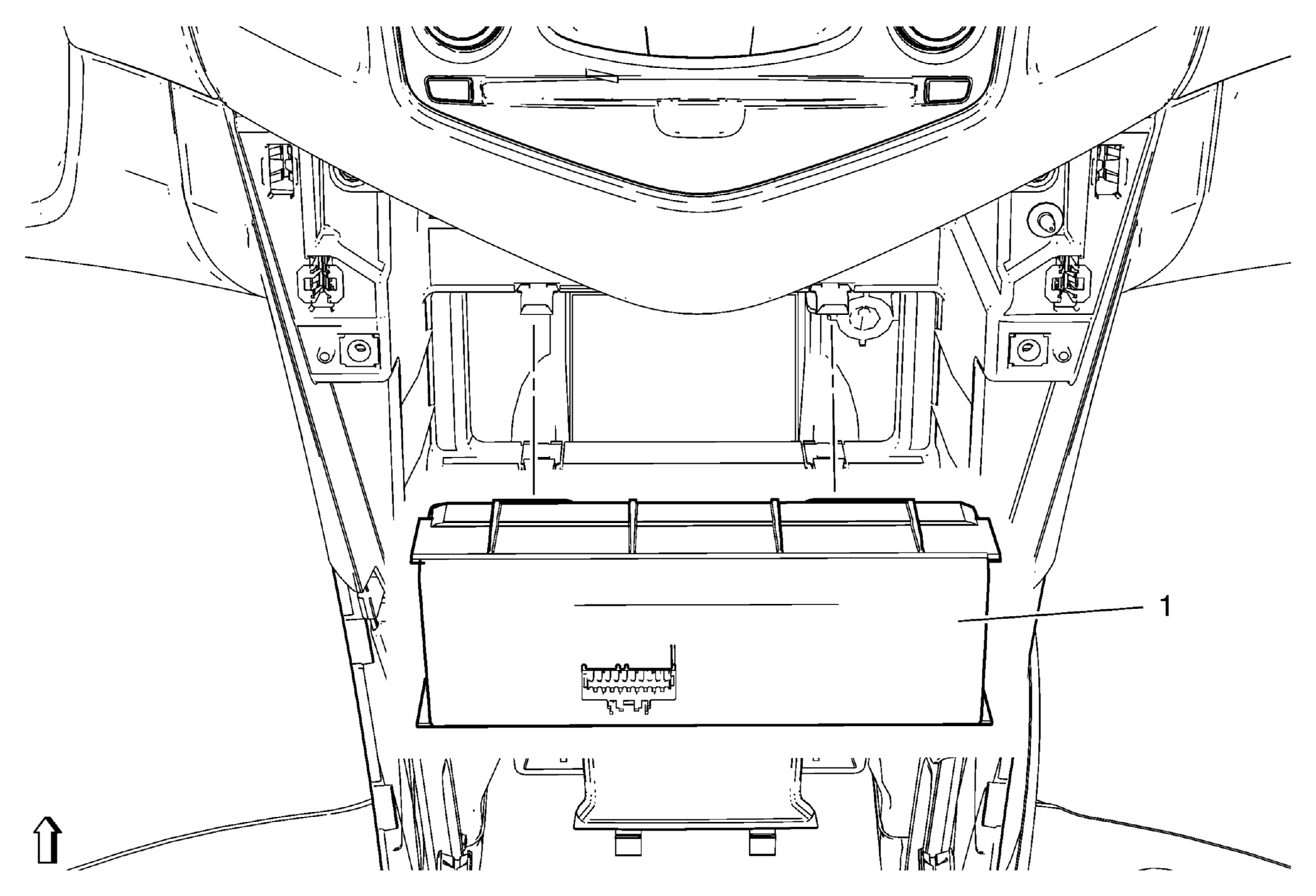

Fig 1: Heater and Air Conditioning Remote Control
GM2189650Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Prepare heater and air conditioning remote control for replacement, refer to Control Module References .
  2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
  3. Remove heater and air conditioning control. Refer to Heater and Air Conditioning Control Replacement .
1 Heater and Air Conditioning Remote Control

Procedure

  1. Disconnect electrical components.
  2. Unclip remote control from instrument panel.
  3. After repairs, refer to Control Module References for programming and set up information.
