Heater and Air Conditioning Control Replacement

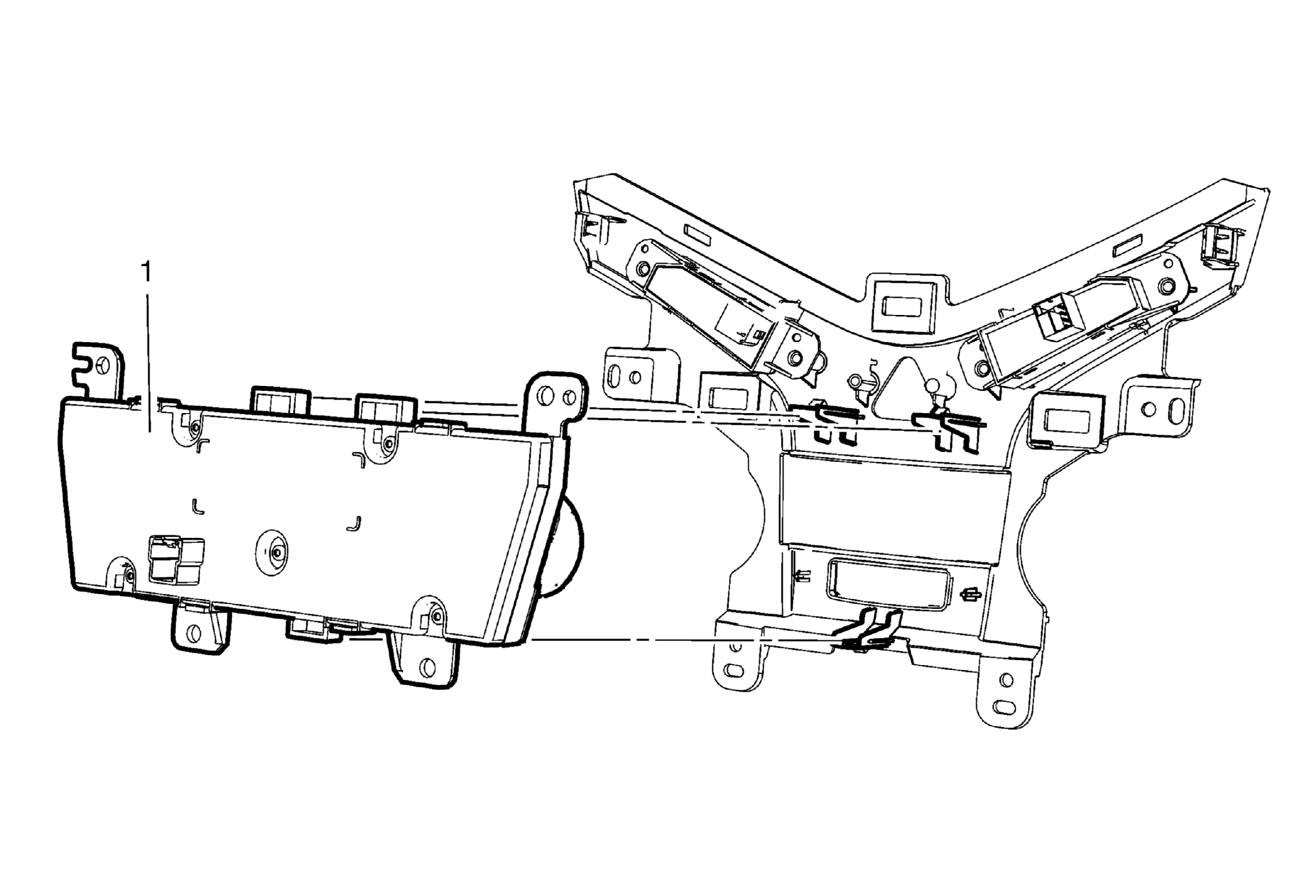

Fig 1: Heater And Air Conditioning Control
GM2512744Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove instrument panel accessory bezel. Refer to Instrument Panel Accessory Bezel Replacement .
1 Heater and Air Conditioning Control

Procedure

  1. Unclip the retainer tabs.
  2. For programming and set up information, refer to Control Module References
