Removal Procedure

  1. Remove instrument outer trim cover - left side. Refer to Instrument Panel Outer Trim Cover Replacement - Left Side .
  2. Remove instrument panel lower trim pad cover - left side. Refer to Instrument Panel Lower Trim Pad Cover Replacement (without Knee Airbag) and Instrument Panel Lower Trim Pad Cover Replacement (with Knee Airbag) .
  3. Remove floor air outlet duct bolt (1) - left side.

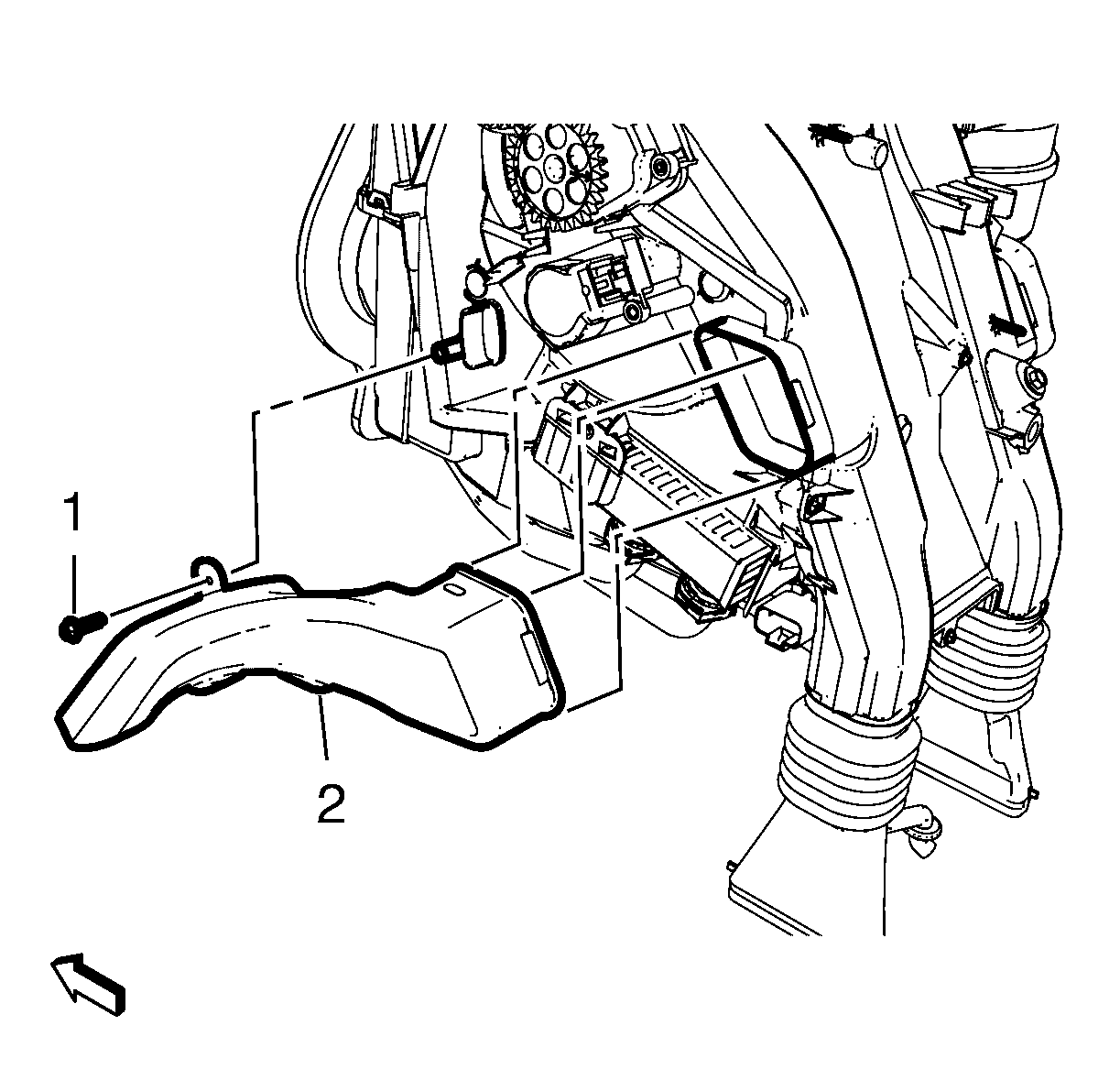

    Fig 1: Floor Air Outlet Duct
    GM3459212Courtesy of GENERAL MOTORS COMPANY
  4. Remove floor air outlet duct (2) - left side.
