Compressor Pressure Relief Valve Replacement (2.0L Diesel LUZ)

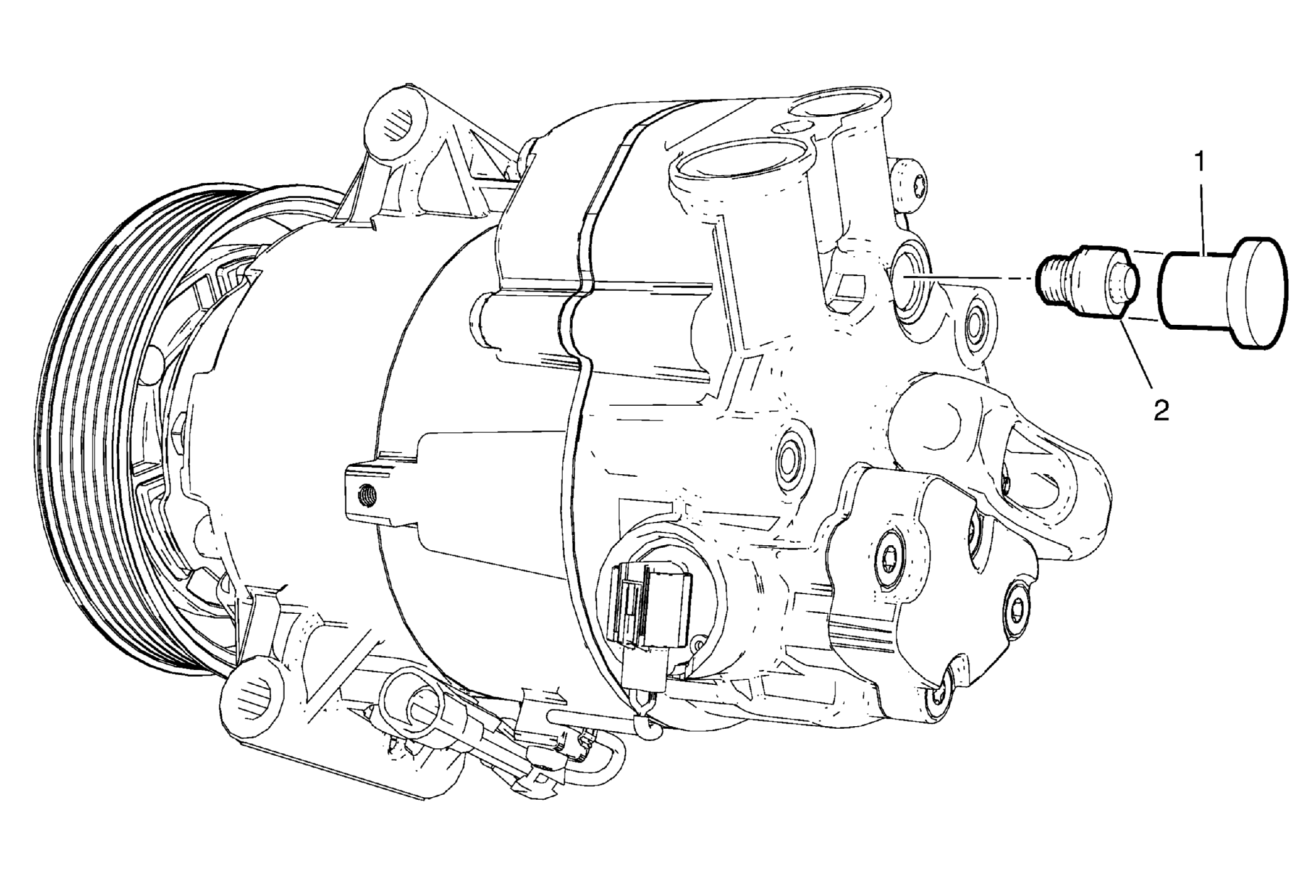

Fig 1: Compressor Pressure Relief Valve (2.0L Diesel LUZ)
GM3352051Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  2. Remove the air conditioning compressor. Refer to Air Conditioning Compressor Replacement (2.0L Diesel LUZ) .
1 Air Conditioning Compressor Pressure Relief Valve Cap
2 Air Conditioning Compressor Pressure Relief Valve
CAUTION: Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)
