Removal Procedure

  1. Remove the right floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side .
  2. Remove the blower motor wire harness connector.
  3. Remove the blower motor cup bolts (1).

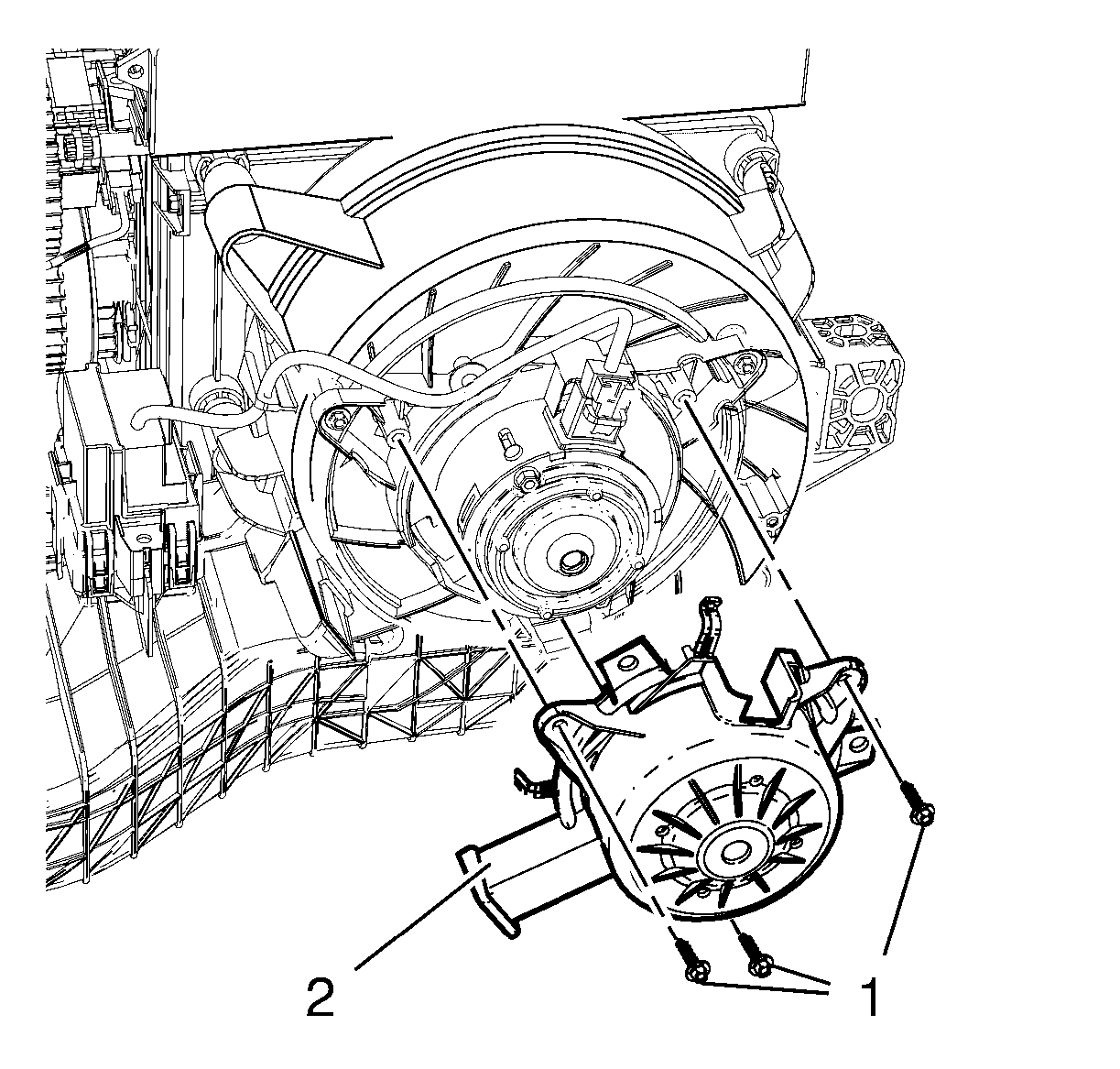

    Fig 1: Blower Motor Cup And Bolts
    GM2026973Courtesy of GENERAL MOTORS COMPANY
  4. Remove the blower motor cup from the blower motor (2).
  5. Remove the blower motor bolts (1).
    Fig 2: Blower Motor And Bolts
    GM2026974Courtesy of GENERAL MOTORS COMPANY
  6. Remove the blower motor (2) from the heater case.
