Installation Procedure

  1. Install the new blower motor (2) to the heater case.

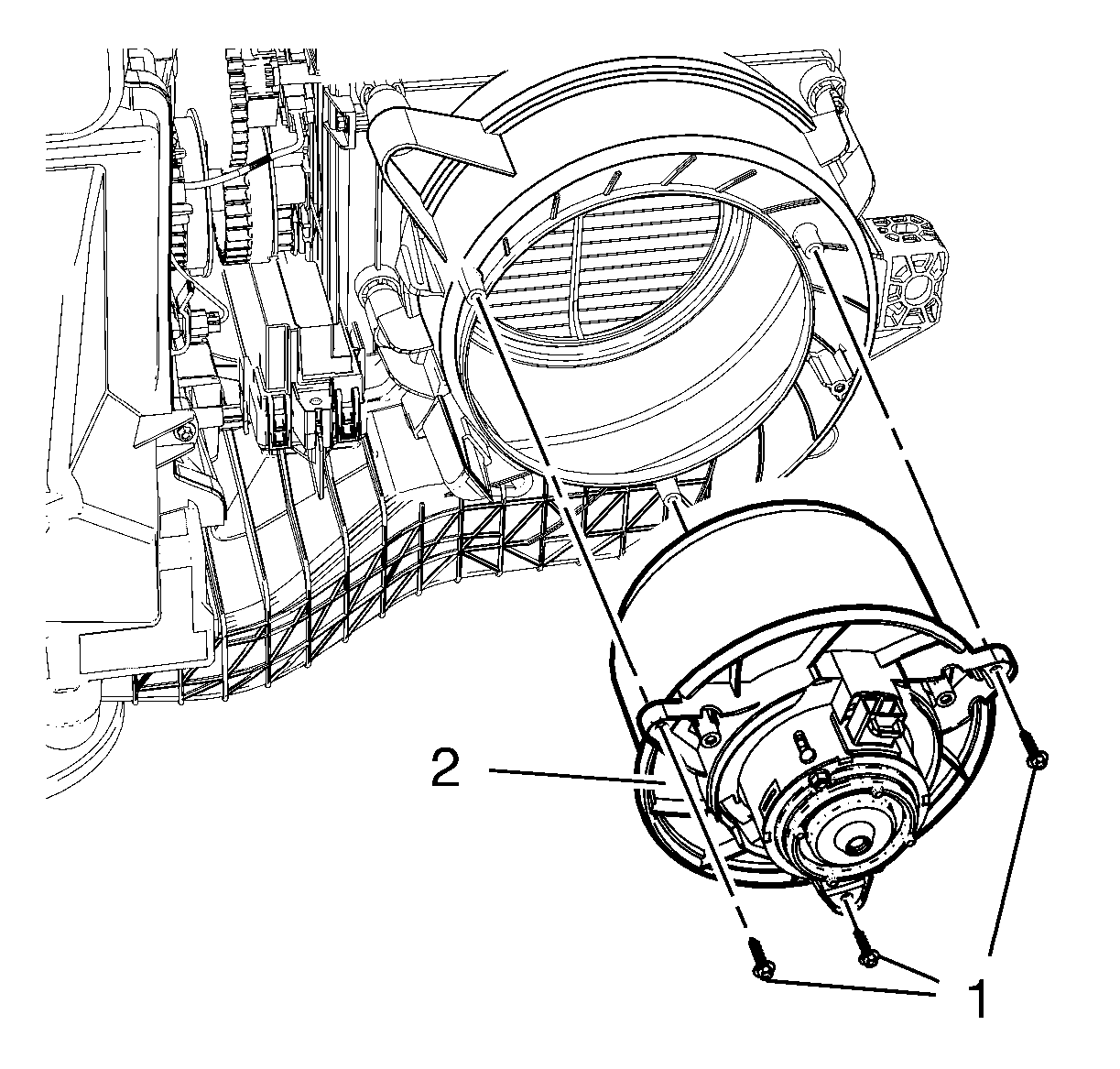

    Fig 1: Blower Motor And Bolts
    GM2026974Courtesy of GENERAL MOTORS COMPANY
  2. Install the blower motor bolts (1) and tighten to 4.5 N.m (40 lb in).
    CAUTION: Refer to Fastener Caution
  3. Install the motor blower cup to the blower motor.
  4. Install the blower motor cup bolts and tighten to 2.5 N.m (23 lb in).
  5. Install the blower motor wire harness connector.
  6. Install the right floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side .
