Installation Procedure

  1. Install air inlet valve and inside air valve control cam. Refer to Air Inlet Valve and Inside Air Valve Control Cam Replacement .
  2. Install air inlet valve actuator. Refer to Air Inlet Valve Actuator Replacement .
  3. Install air inlet housing (2) to heater and air conditioning evaporator and blower module (1).

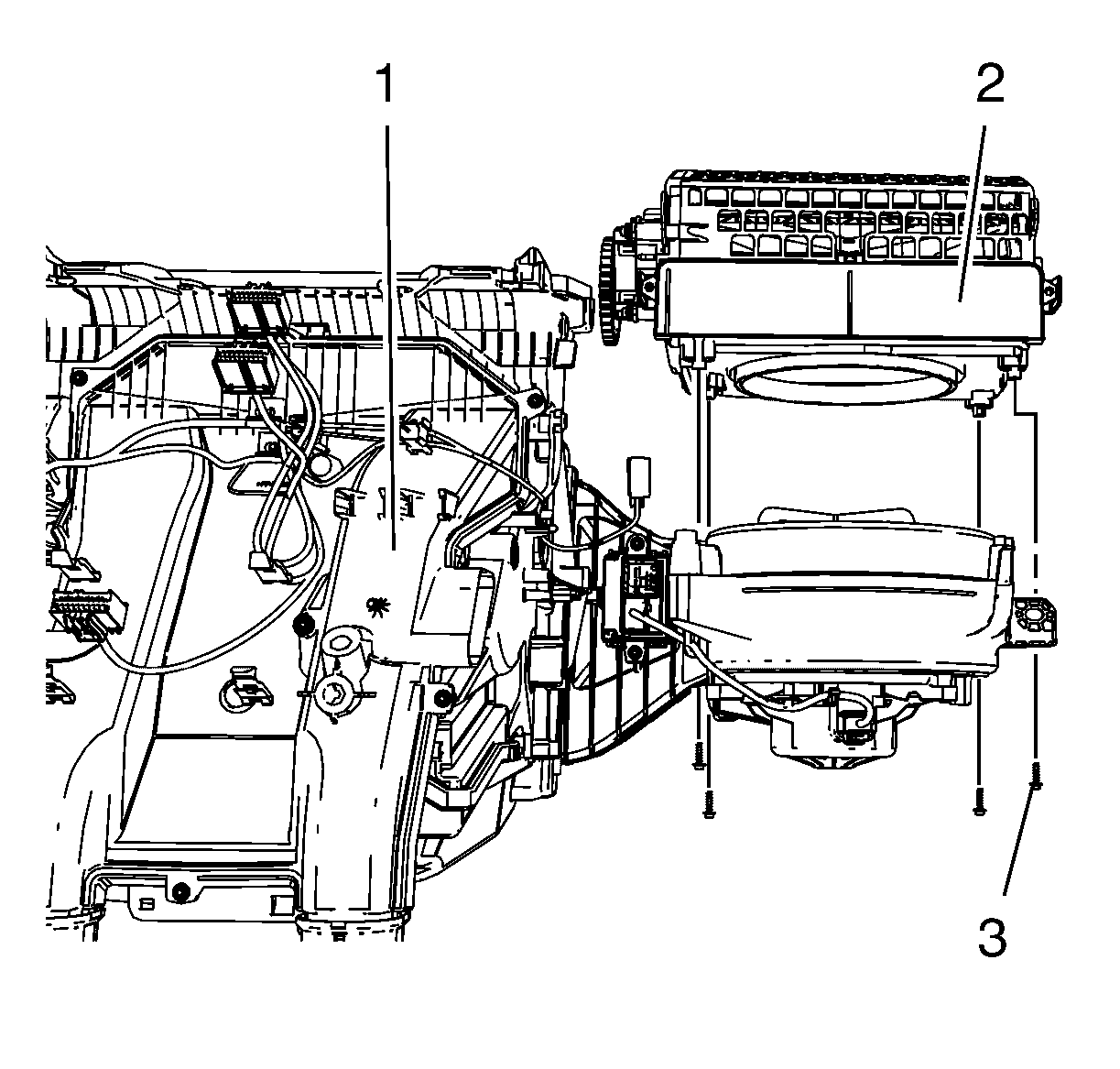

    Fig 1: Air Inlet Housing
    GM2027919Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
    • Connect electrical connectors.
    • Install 4 air inlet housing bolts (3) and tighten to 2.5 N.m (22 lb in).
  4. Install heater and air conditioning evaporator and blower module. Refer to Heater and Air Conditioning Evaporator Case Replacement .
