Air Inlet Valve Actuator Replacement

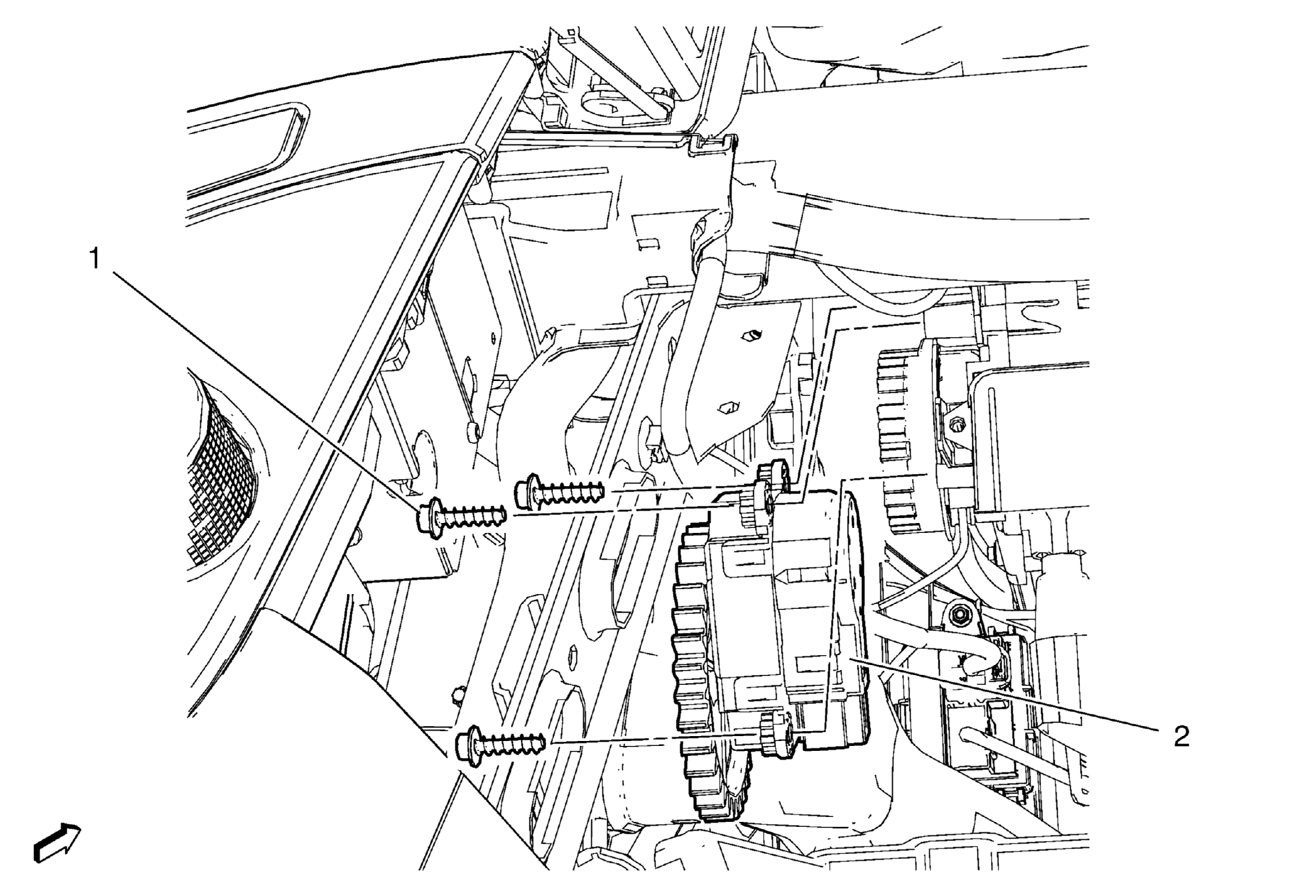

Fig 1: Air Inlet Valve Actuator And Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1	Air Inlet Valve Actuator Bolt (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Air Inlet Valve Actuator Procedure Disconnect the electrical connector. Recalibrate the air inlet valve actuator, Refer to Actuator Recalibration .

Callout

Component Name

Preliminary Procedures
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .

Air Inlet Valve Actuator Bolt (Qty: 3)

CAUTION: Refer to Fastener Caution .

Air Inlet Valve Actuator

Procedure
