Installation Procedure

  1. Install 2 mode valve lever (1).

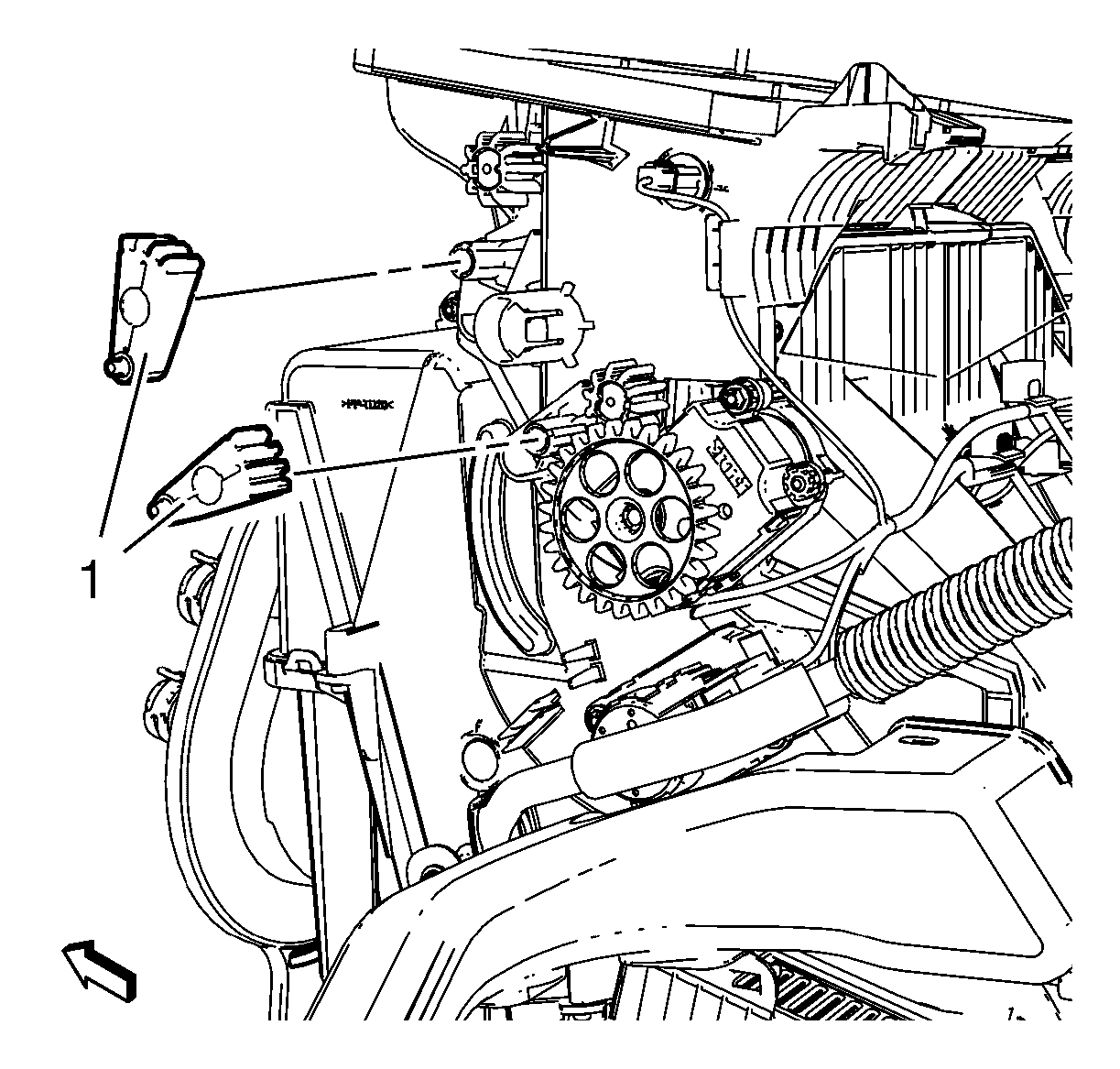

    Fig 1: Mode Valve Lever
    GM2028007Courtesy of GENERAL MOTORS COMPANY
  2. Make sure that mode valve gears of mode valve levers (1) are fitted as shown in graphic above.

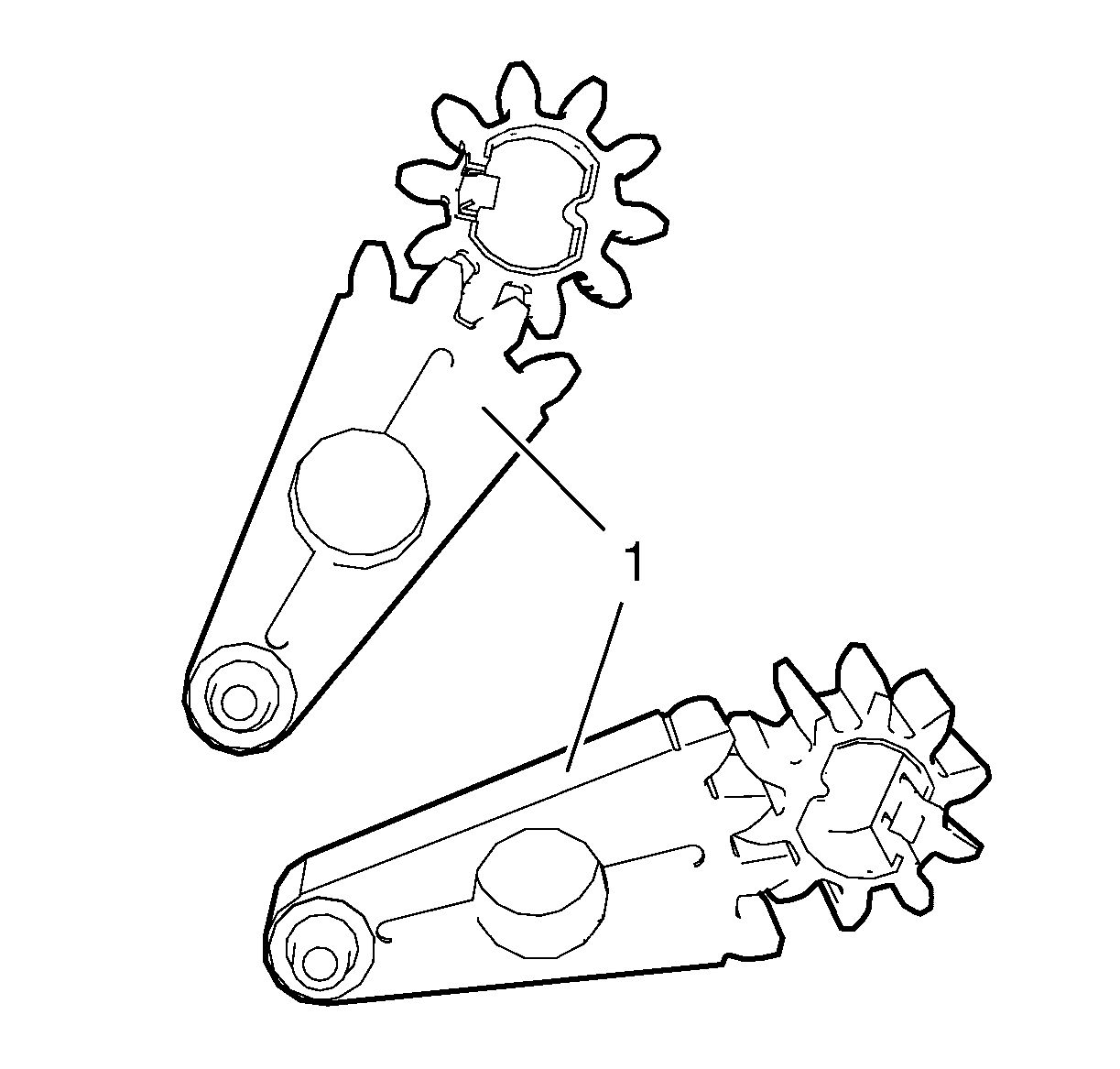

    Fig 2: Mode Valve Levers
    GM2027978Courtesy of GENERAL MOTORS COMPANY
    NOTE: The mode valve levers have to be fitted to the according mode valve gears in figured position. The ventilation dampers have to be in middle position.
  3. Install mode control cam (1).

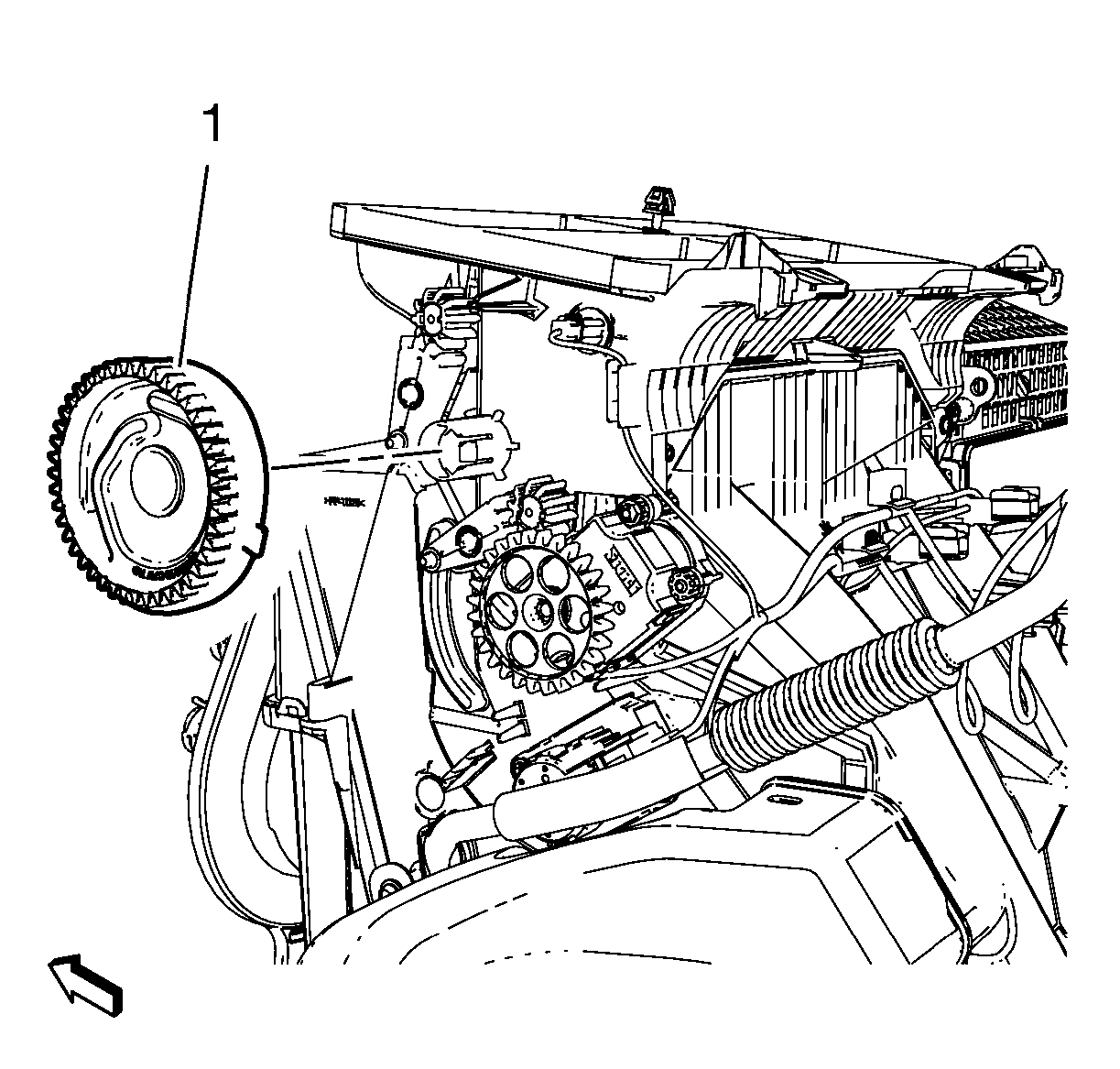

    Fig 3: Mode Control Cam
    GM2027962Courtesy of GENERAL MOTORS COMPANY
    NOTE: The mode control cam can only be fitted in one position.
  4. Install instrument panel tie bar (2).

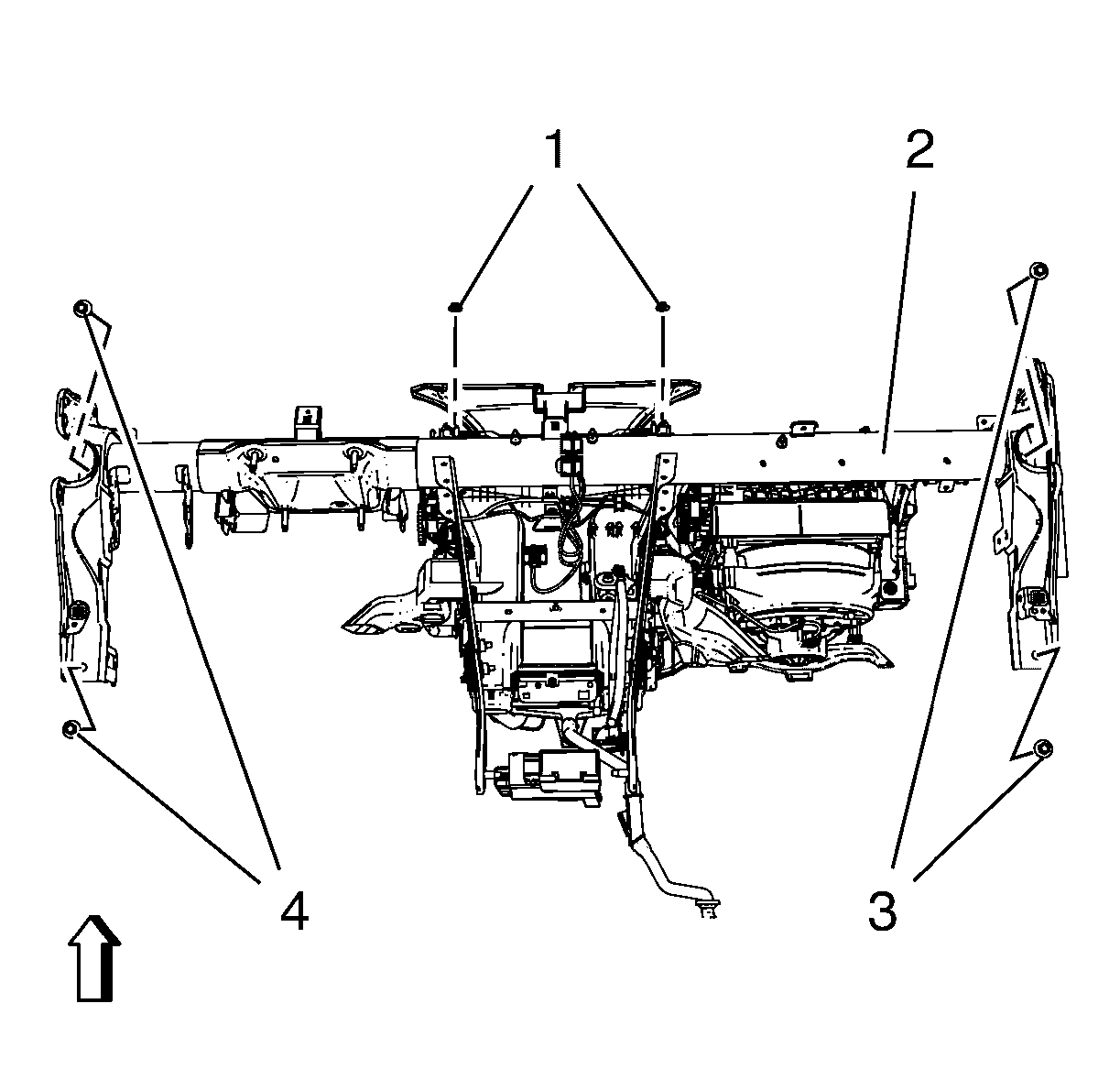

    Fig 4: Instrument Panel Tie Bar, Bolts And Nuts
    GM2027821Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution
    • Install 4 instrument panel tie bar bolts (3, 4) and tighten to 22 N.m (17 lb ft).
    • Install 2 instrument panel tie bar nuts (1) and tighten to 9 N.m (80 lb in).
  5. Install instrument panel wiring harness (2) from instrument panel tie bar (1).

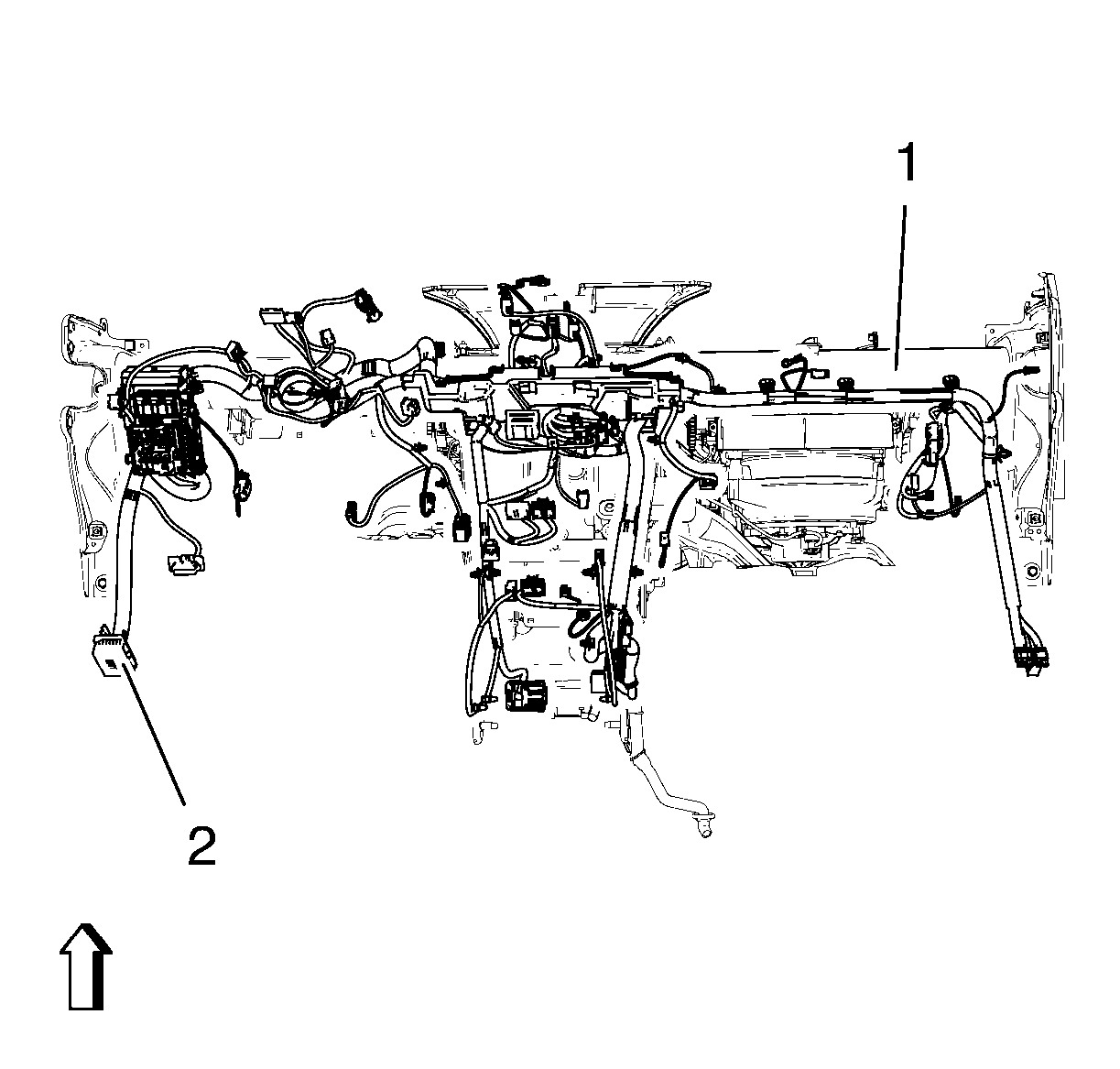

    Fig 5: Instrument Panel Wiring Harness And Instrument Panel Tie Bar
    GM2027818Courtesy of GENERAL MOTORS COMPANY

    Connect electrical connectors.

  6. Install instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
