Mode Control Cam Actuator Replacement

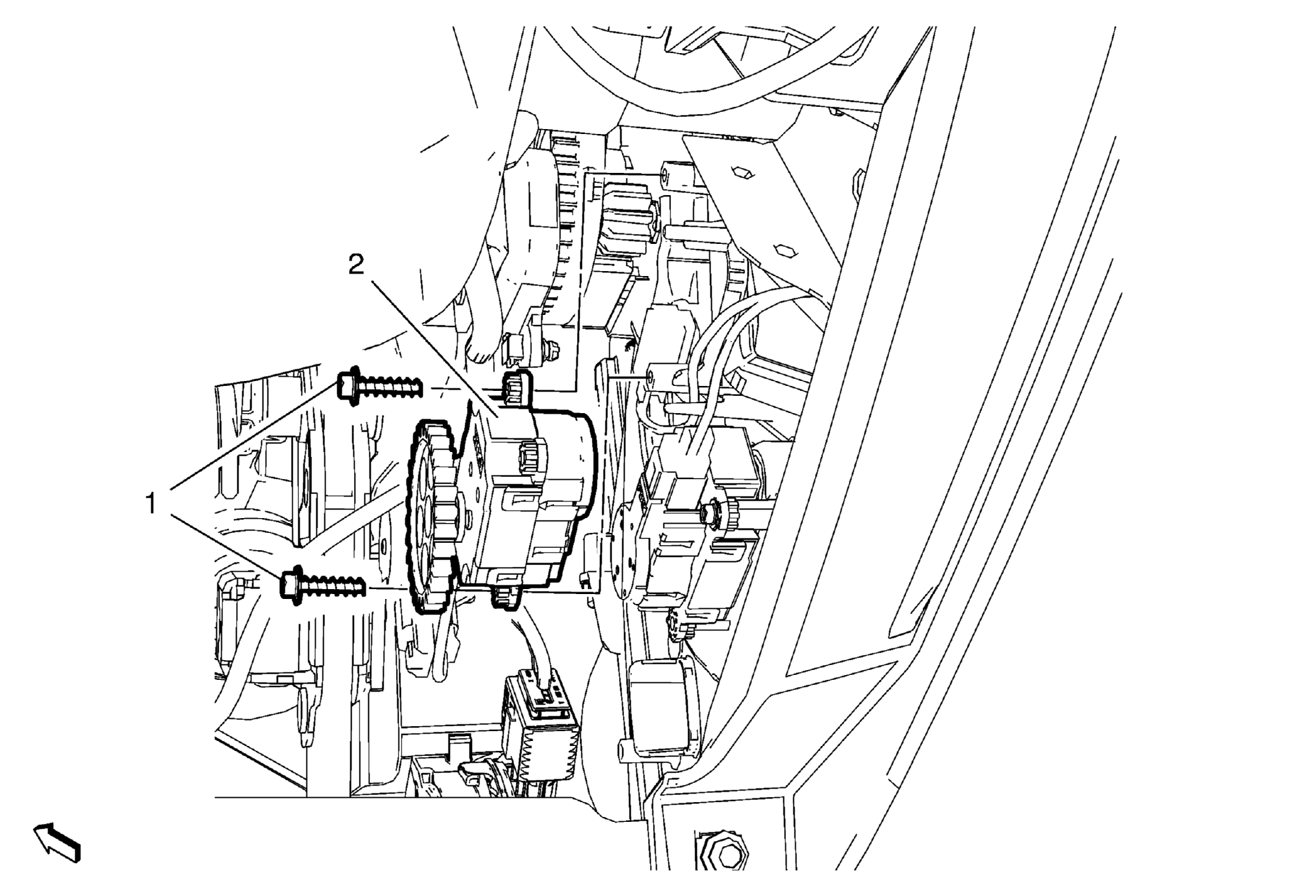

Fig 1: Mode Control Cam Actuator And Bolts
GM2371781Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument lower trim pad cover. Refer to Instrument Panel Lower Trim Pad Cover Replacement (without Knee Airbag) and Instrument Panel Lower Trim Pad Cover Replacement (with Knee Airbag) .
1 Mode Control Cam Actuator Bolt (Qty: 2)
CAUTION: Refer to Fastener Caution .
2 Mode Control Cam Actuator

Procedure

  1. Disconnect electrical connector.
  2. Recalibrate the mode control cam actuator. Refer to Actuator Recalibration .
