Air Inlet Valve Actuator Gear Replacement

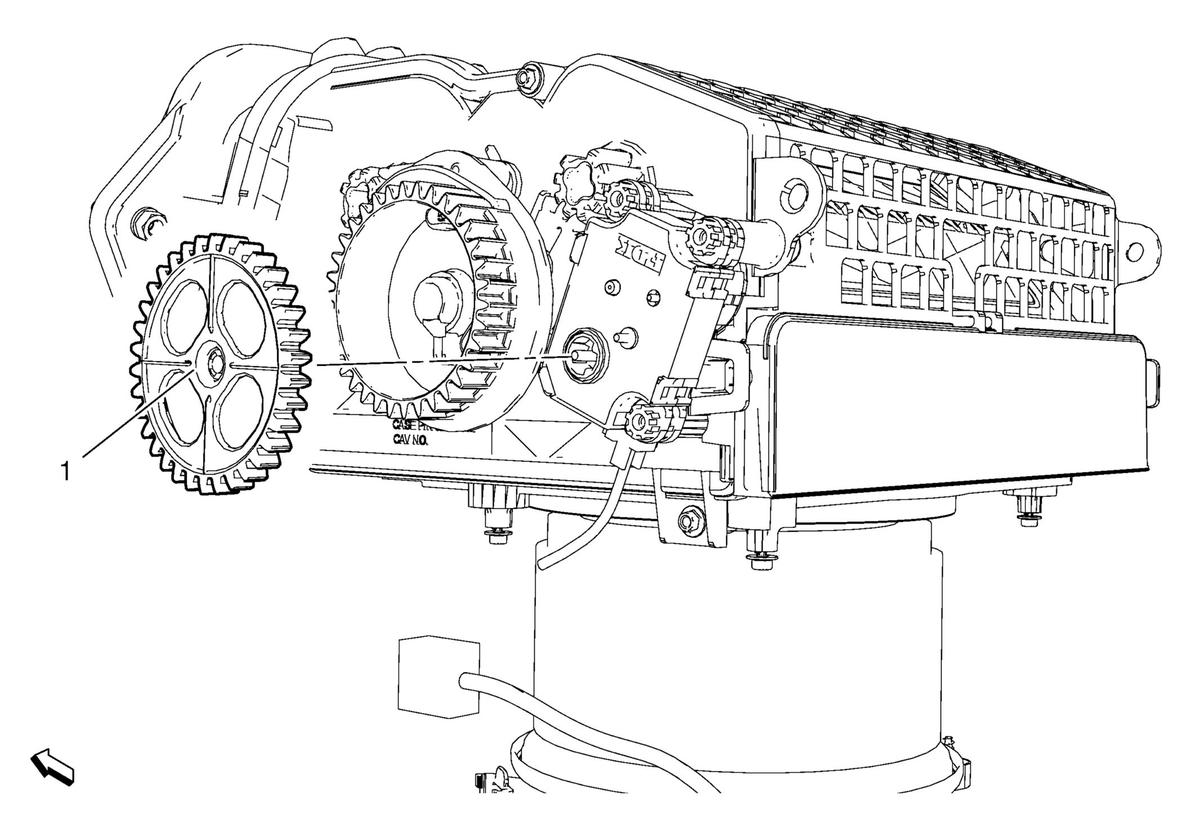

Fig 1: Air Inlet Valve Actuator Gear (Left Hand Drive)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1	Air Inlet Valve Actuator Gear Procedure  Pull air inlet valve actuator gear from air inlet valve actuator.
