Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install a NEW throttle body gasket.
  2. Install the throttle body (1).

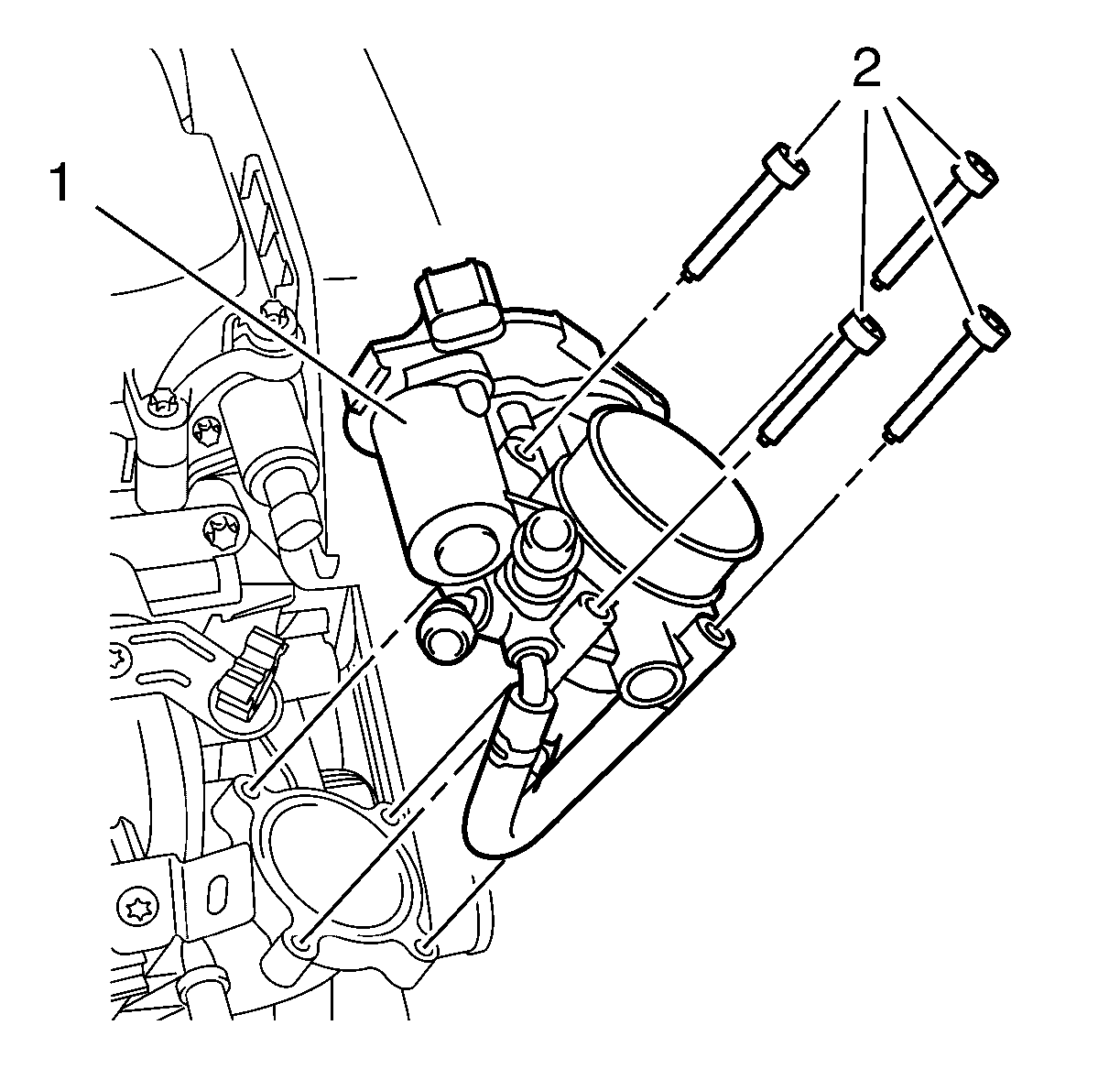

    Fig 1: Throttle Body
    GM2026836Courtesy of GENERAL MOTORS COMPANY
  3. Install the 4 throttle body bolts (2) and tighten to 8 N.m (71 lb in).
    CAUTION: Refer to Fastener Caution .
  4. Connect the throttle body heater inlet pipe (3).

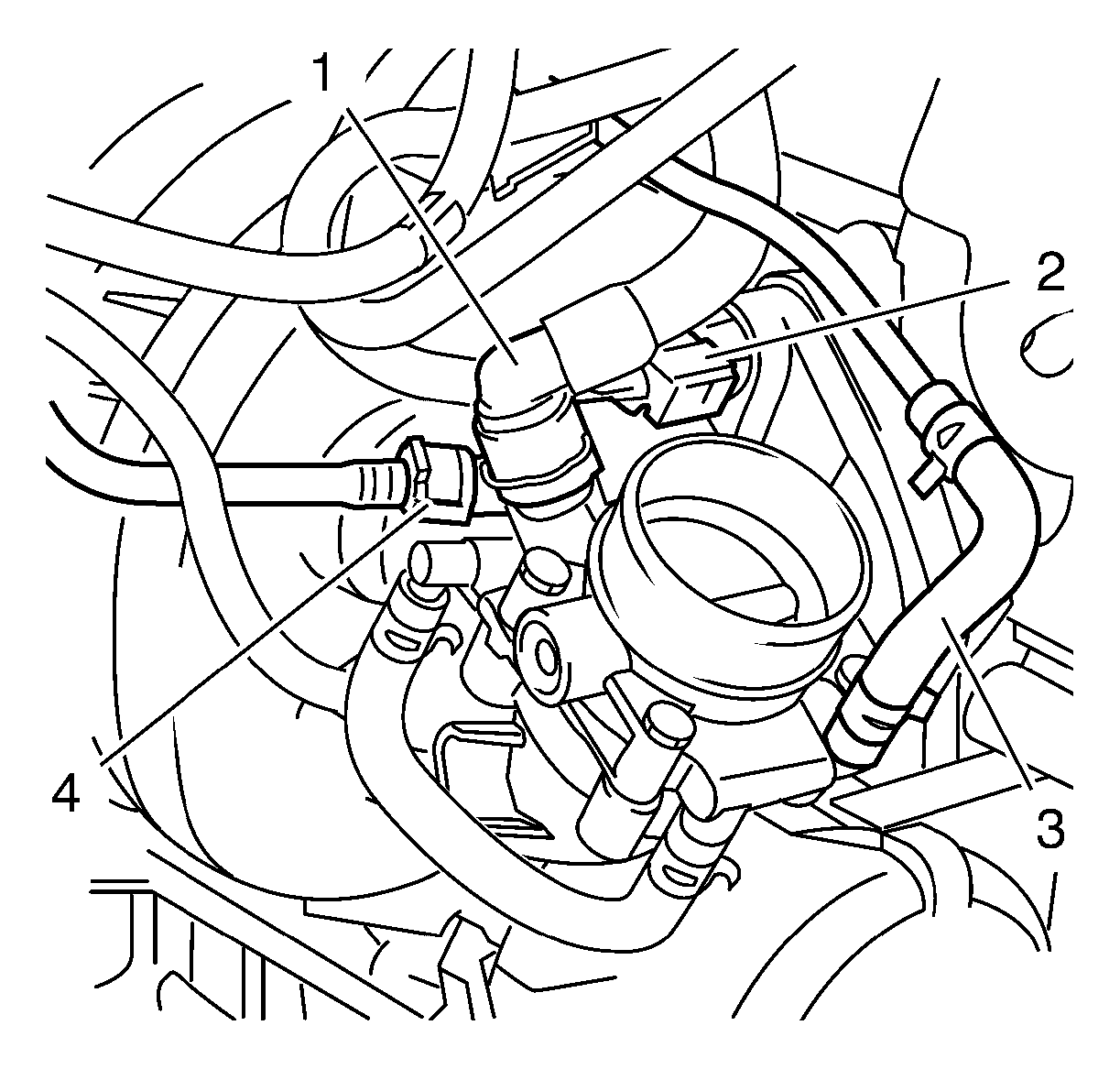

    Fig 2: Throttle Body Heater Outlet Pipe, Throttle Body Heater Inlet Pipe And Positive Crankcase Ventilation Pipe
    GM2027480Courtesy of GENERAL MOTORS COMPANY
  5. Connect the throttle body heater outlet pipe (4).
  6. Connect the positive crankcase ventilation pipe (1).
  7. Connect the wiring harness plug (2).
  8. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  9. Perform the throttle/idle learn procedure. Refer to Throttle/Idle Learn .
