Engine Oil Pressure Indicator Switch Replacement
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the air conditioning compressor. Refer to Air Conditioning Compressor Replacement (1.8L LUW and LWE) . |
|

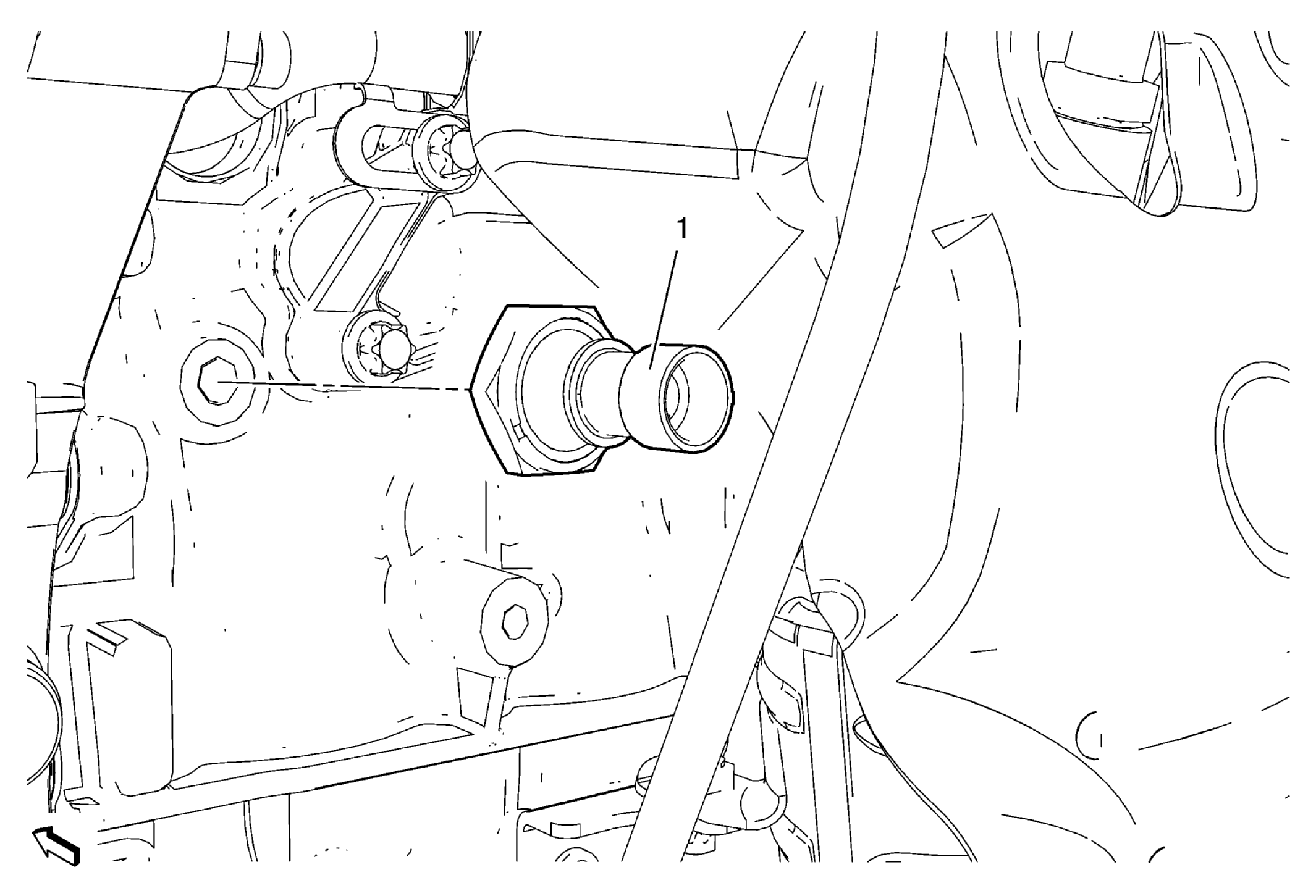

| 1 | Oil Pressure Switch
CAUTION:
Refer to Fastener Caution
. Procedure Disconnect the oil pressure switch wiring harness plug and remove the switch. Tighten 30 N.m (22 lb ft) |
