Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the air cleaner upper housing (2).

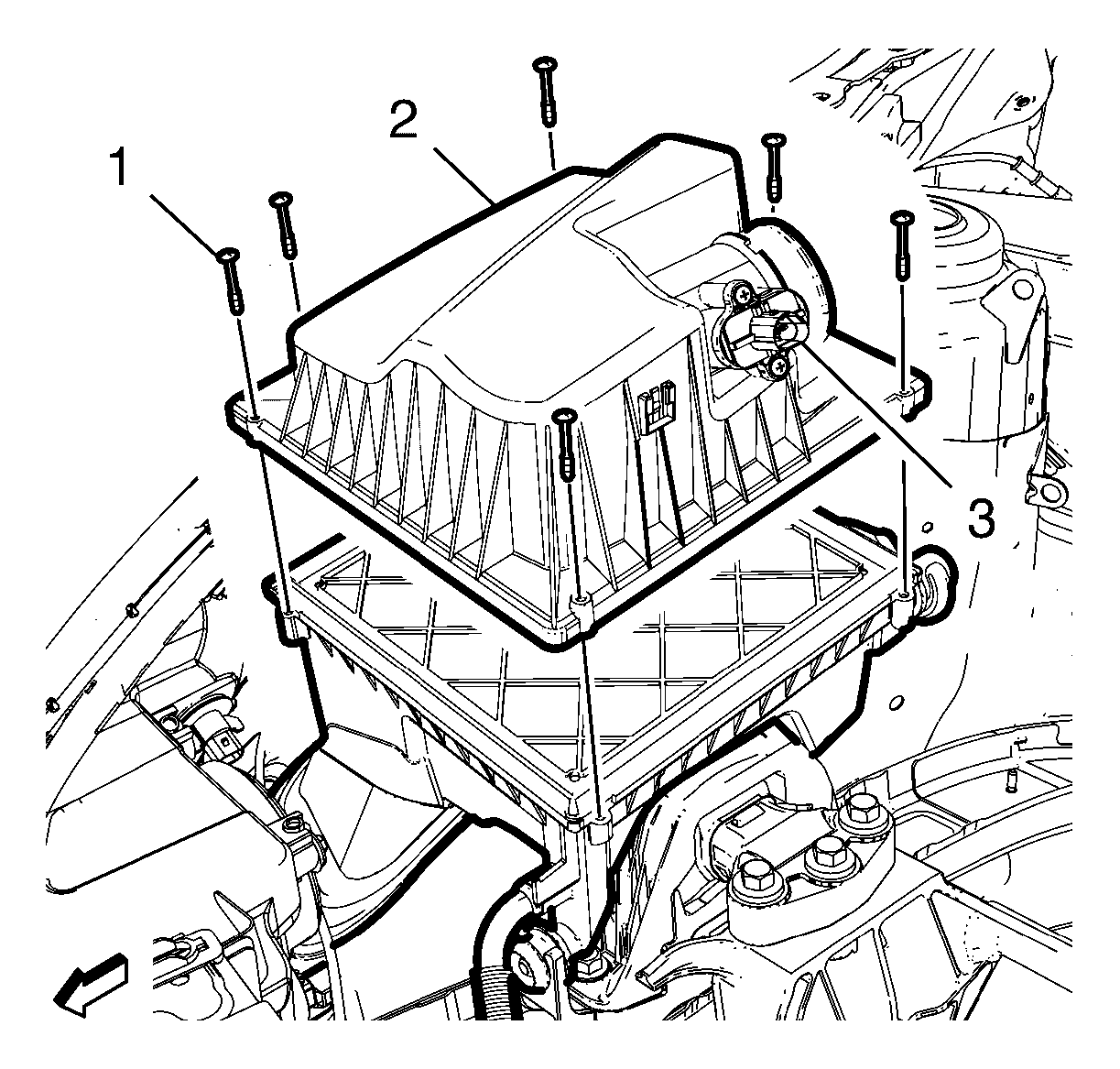

    Fig 1: Intake Air Temperature Sensor
    GM2756343Courtesy of GENERAL MOTORS COMPANY
  2. Install the 6 air cleaner housing cover bolts (1) and tighten to 5 N.m (44 lb in).
    CAUTION: Refer to Fastener Caution .
  3. Install the mass airflow sensor (3) from the air cleaner upper housing (2). Refer to Mass Airflow Sensor Replacement
  4. Install the air cleaner outlet duct (1). Refer to Air Cleaner Outlet Duct Replacement .

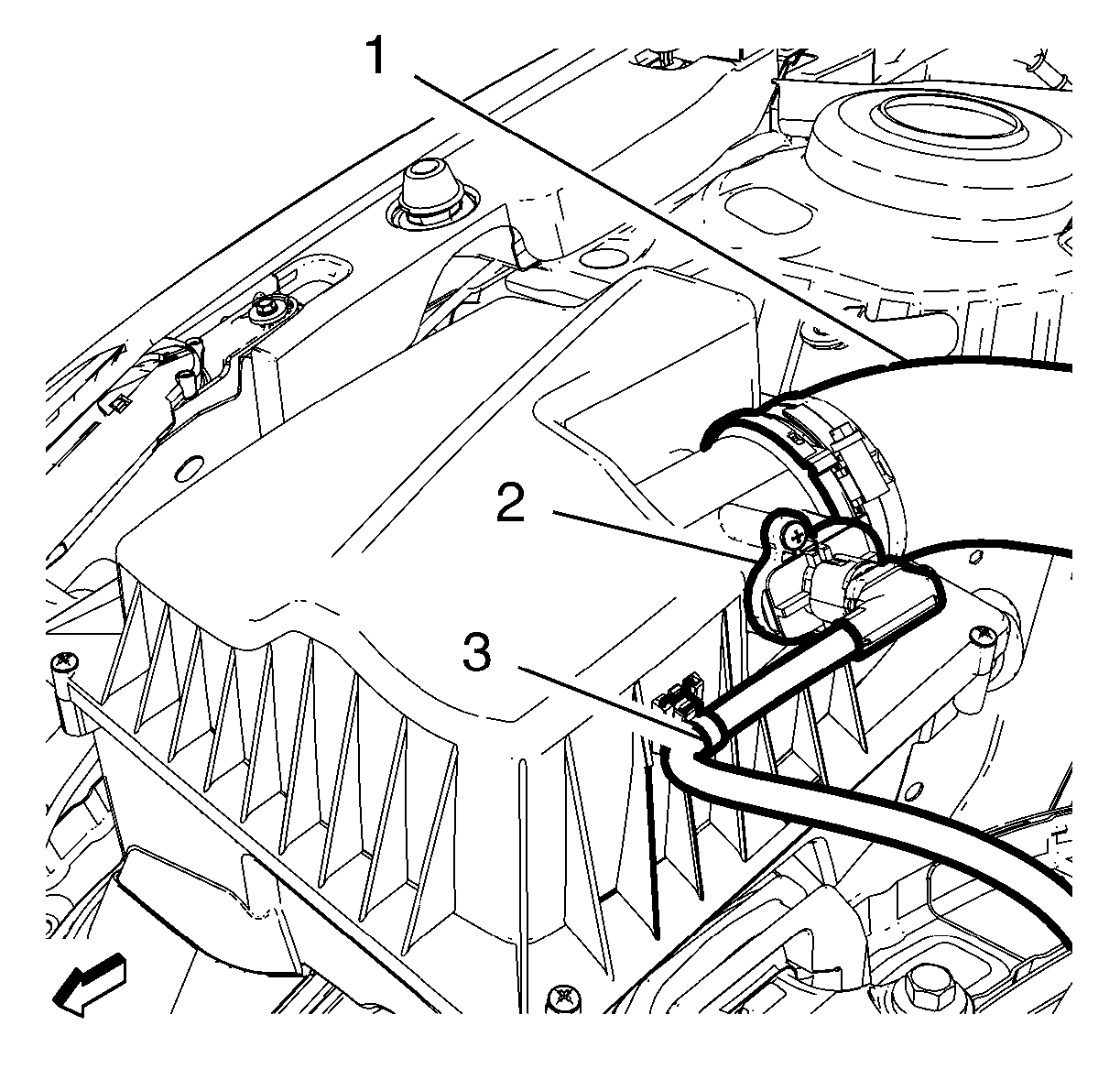

    Fig 2: ECM Wiring Harness
    GM2756342Courtesy of GENERAL MOTORS COMPANY
  5. Connect the mass airflow sensor/intake air temperature sensor wiring harness plug (2).
  6. Clip in the ECM wiring harness (3) the air cleaner housing.
