Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Open the hood.
  2. Disconnect the intake air sensor wiring harness plug (1).
    Fig 1: Intake Air Sensor Wiring Harness Plug
    GM2027620Courtesy of GENERAL MOTORS COMPANY
  3. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  4. Remove the 6 air cleaner housing cover bolts (3)

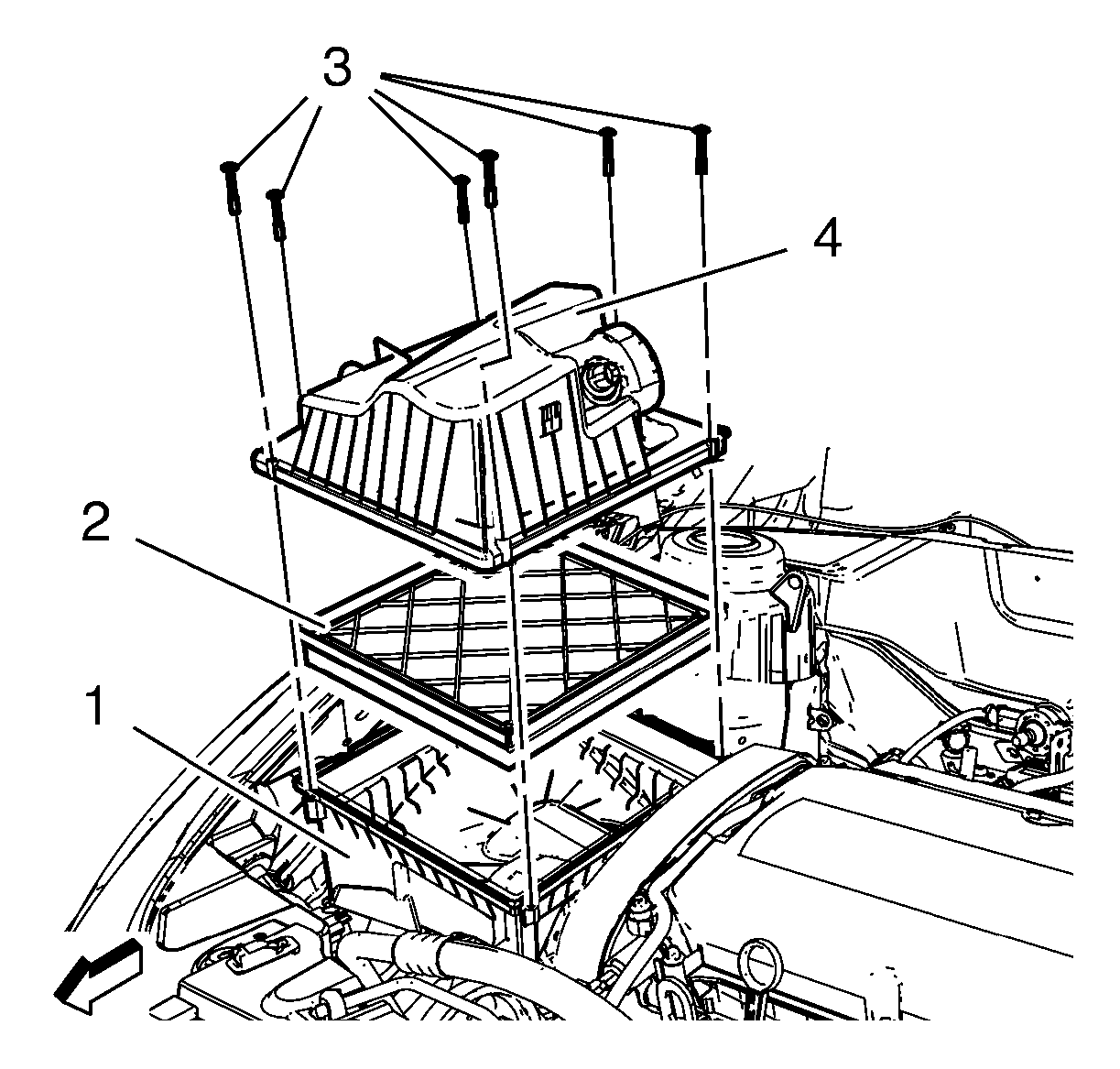

    Fig 2: Air Cleaner Element, Air Cleaner Housing, Air Cleaner Housing Cover And Bolts
    GM2027590Courtesy of GENERAL MOTORS COMPANY
  5. Remove the air cleaner housing cover (4).
  6. Remove the air cleaner element (2) from the air cleaner housing (1).
