Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Open the hood.
  2. Disconnect the intake air temperature sensor wiring harness plug (1).

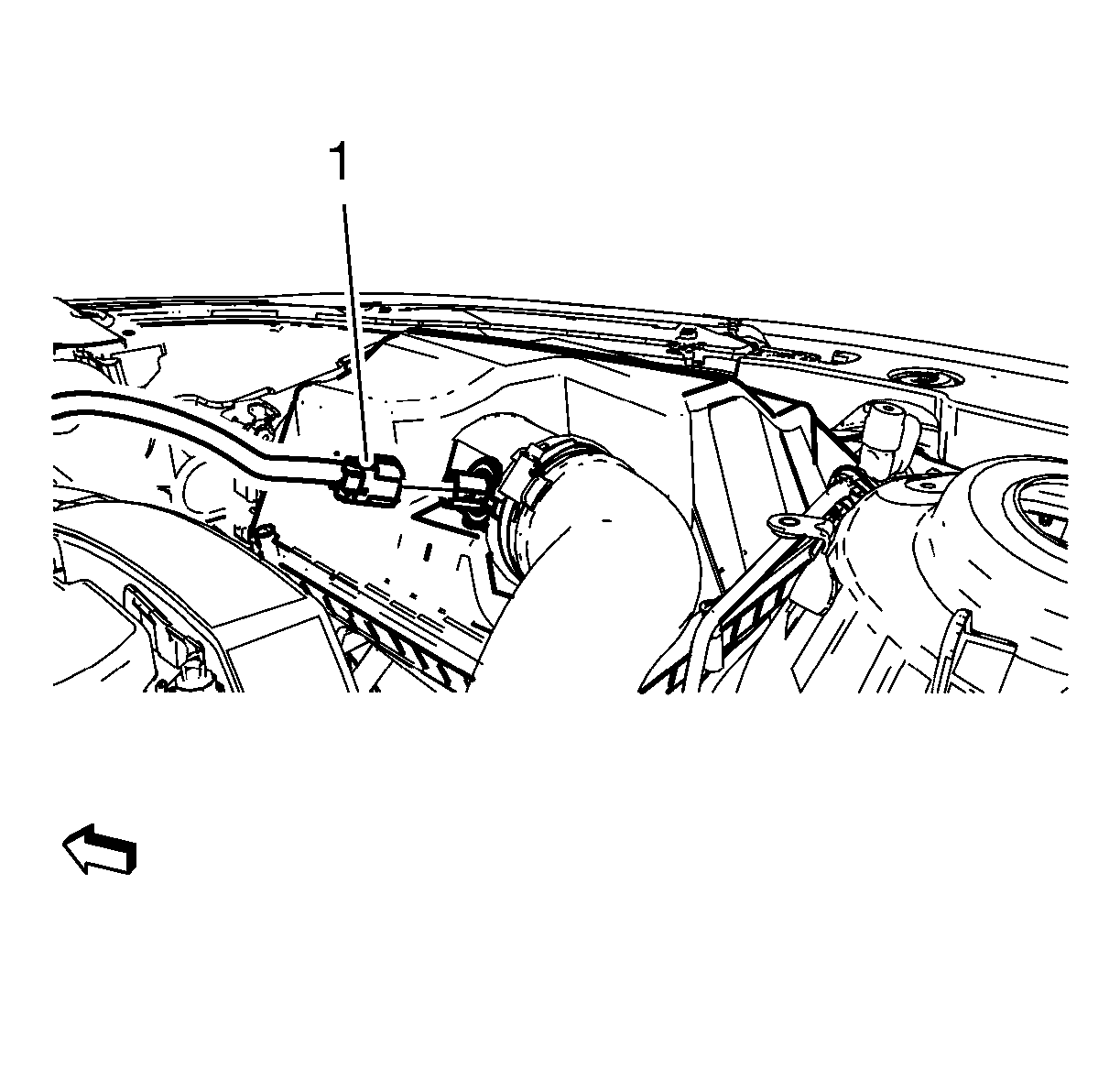

    Fig 1: Intake Air Sensor Wiring Harness Plug
    GM2027620Courtesy of GENERAL MOTORS COMPANY
  3. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  4. Remove the air cleaner assembly (1).

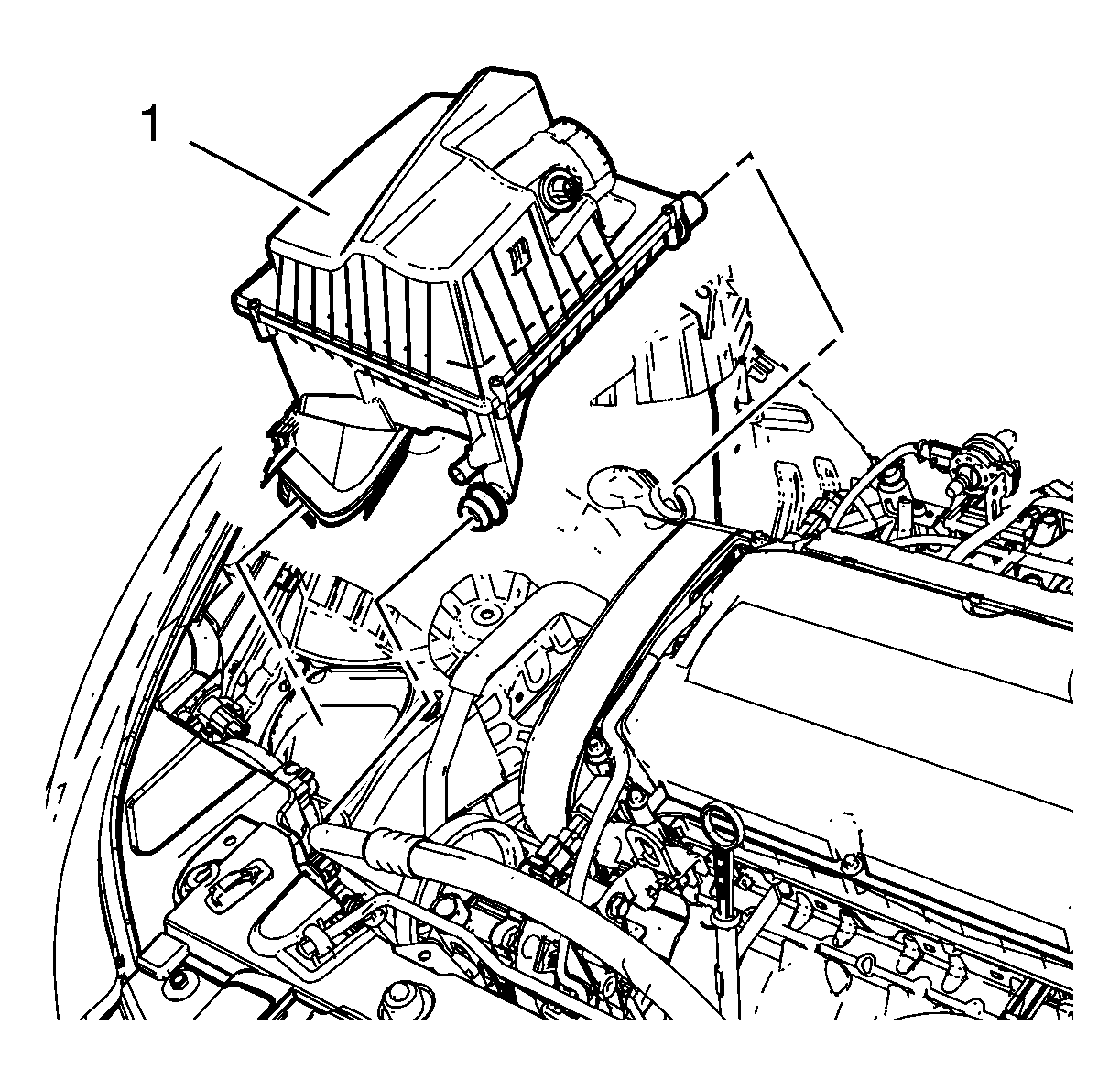

    Fig 2: Air Cleaner Assembly (LUW)
    GM2027600Courtesy of GENERAL MOTORS COMPANY
    • Unclip the air cleaner inlet duct
    • Unclip the drain hose, if equipped
