Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Clean the sealing surfaces.
  2. Apply an approximately 3.5 mm (0.14 in) thick bead of oil pan sealant to the joints (arrows).
    Fig 1: View Of Joints For Sealant
    GM1944491Courtesy of GENERAL MOTORS COMPANY
  3. Apply an approximately 3.5 mm (0.14 in) thick bead of oil pan sealant (1) as shown.
    Fig 2: Sealant Application Area
    GM2189266Courtesy of GENERAL MOTORS COMPANY
    NOTE: The assembly time including torque check must take no longer than 10 minutes.
  4. Install the 15 oil pan bolts (1) to the oil pan (2) and tighten to 10 N.m (89 lb in).
    Fig 3: Oil Pan And Bolts
    GM2027008Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .

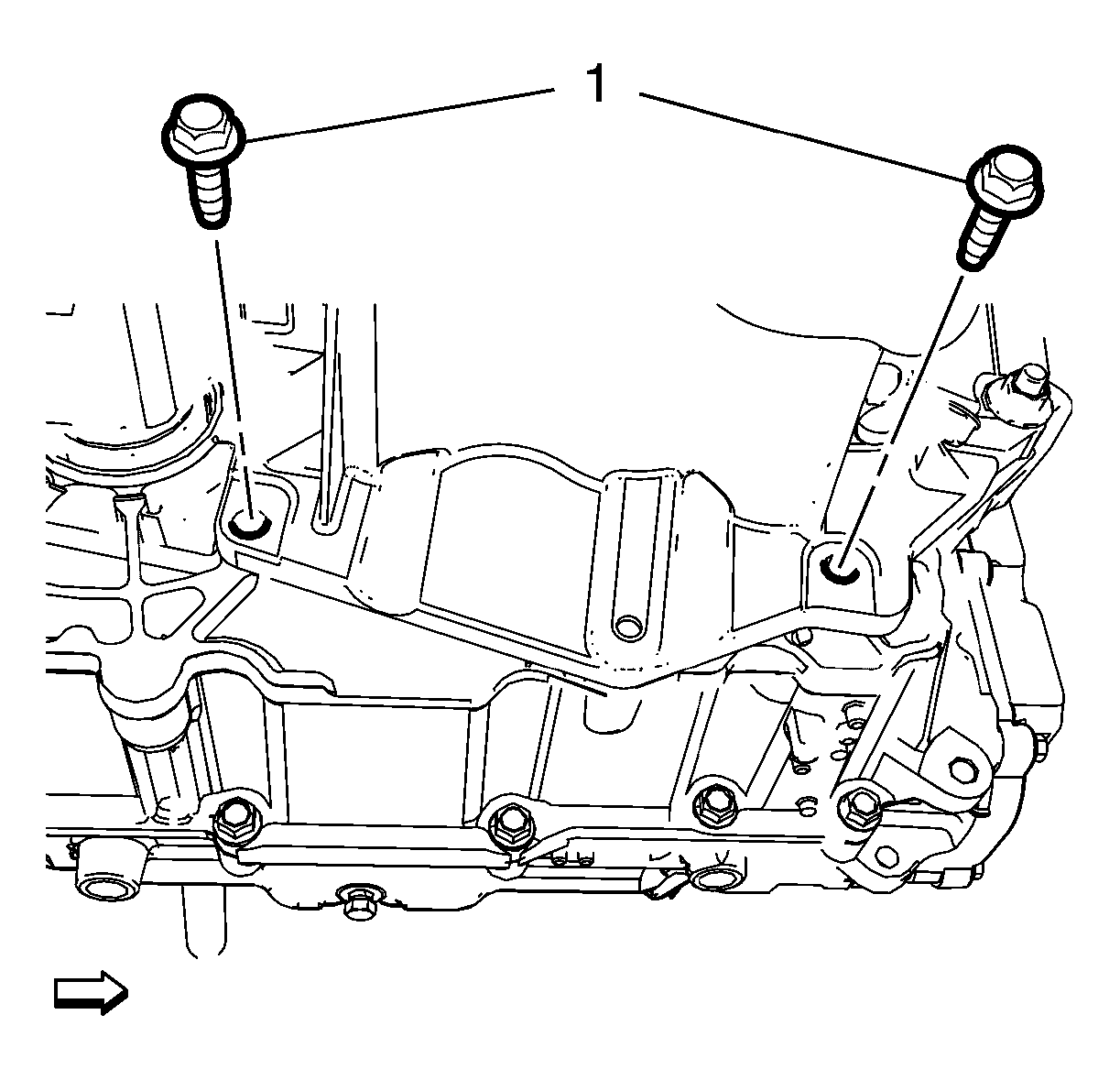

  5. Install the 2 oil pan bolts (1) to the transmission and tighten to 58 N.m (43 lb ft).
    Fig 4: Oil Pan Bolts
    GM3213258Courtesy of GENERAL MOTORS COMPANY
  6. Install the exhaust front pipe. Refer to Exhaust Front Pipe Replacement .
  7. Install the engine oil heater. Refer to Engine Oil Heater Replacement .
  8. Install the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  9. Lower the vehicle.
  10. Install the oil level indicator tube. Refer to Oil Level Indicator Tube Replacement .
  11. Refill the collected engine oil.
    NOTE: Inspect the engine oil level and correct if necessary.
