Engine Oil Heater Replacement
WARNING: This page is about a different variant/trim than selected.

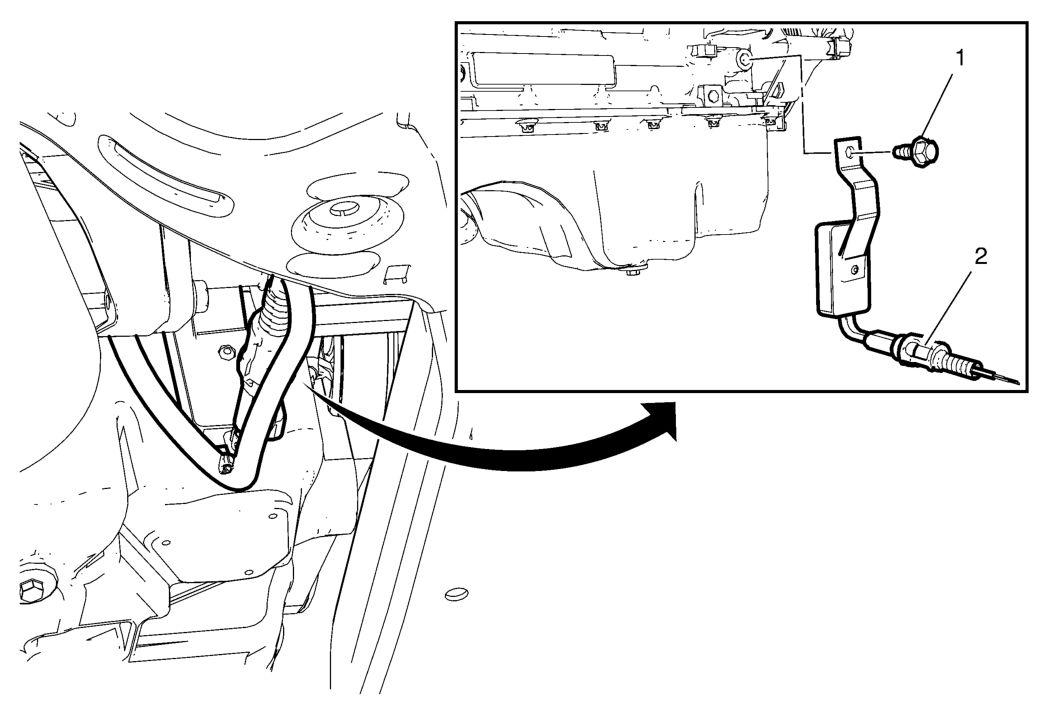

| Callout | Component Name |
|---|---|
|
WARNING:
While engine is operating, the exhaust system will become extremely hot. To prevent burns avoid contacting a hot exhaust system. Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection
. |
|
| 1 | Engine Oil Heater Bolt
CAUTION:
Refer to Fastener Caution
. Tighten 40 N.m (30 lb ft) |
| 2 | Engine Oil Heater Procedure Disconnect the wiring harness plug. |
