Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Clean sealing surface.
  2. Install a NEW engine front cover seal (1).

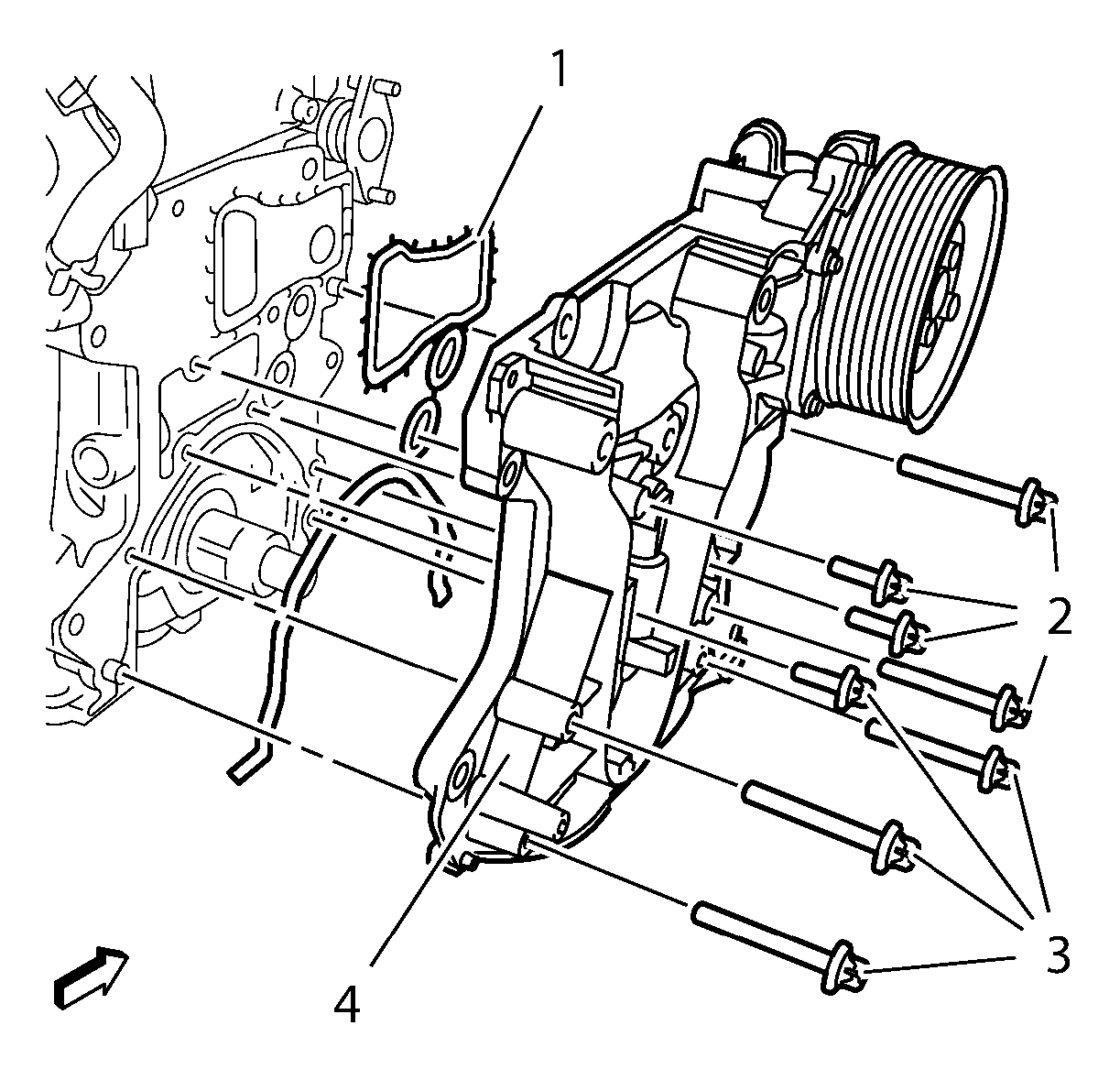

    Fig 1: Engine Front Cover, Seal And Bolts
    GM2027688Courtesy of GENERAL MOTORS COMPANY
  3. Install the engine front cover (4).
  4. Install the 8 engine front cover bolts (2, 3) and tighten to 20 N.m (15 lb ft).
    CAUTION: Refer to Fastener Caution .
  5. Push the engine oil cooler outlet pipe (3) to the water pump (6).

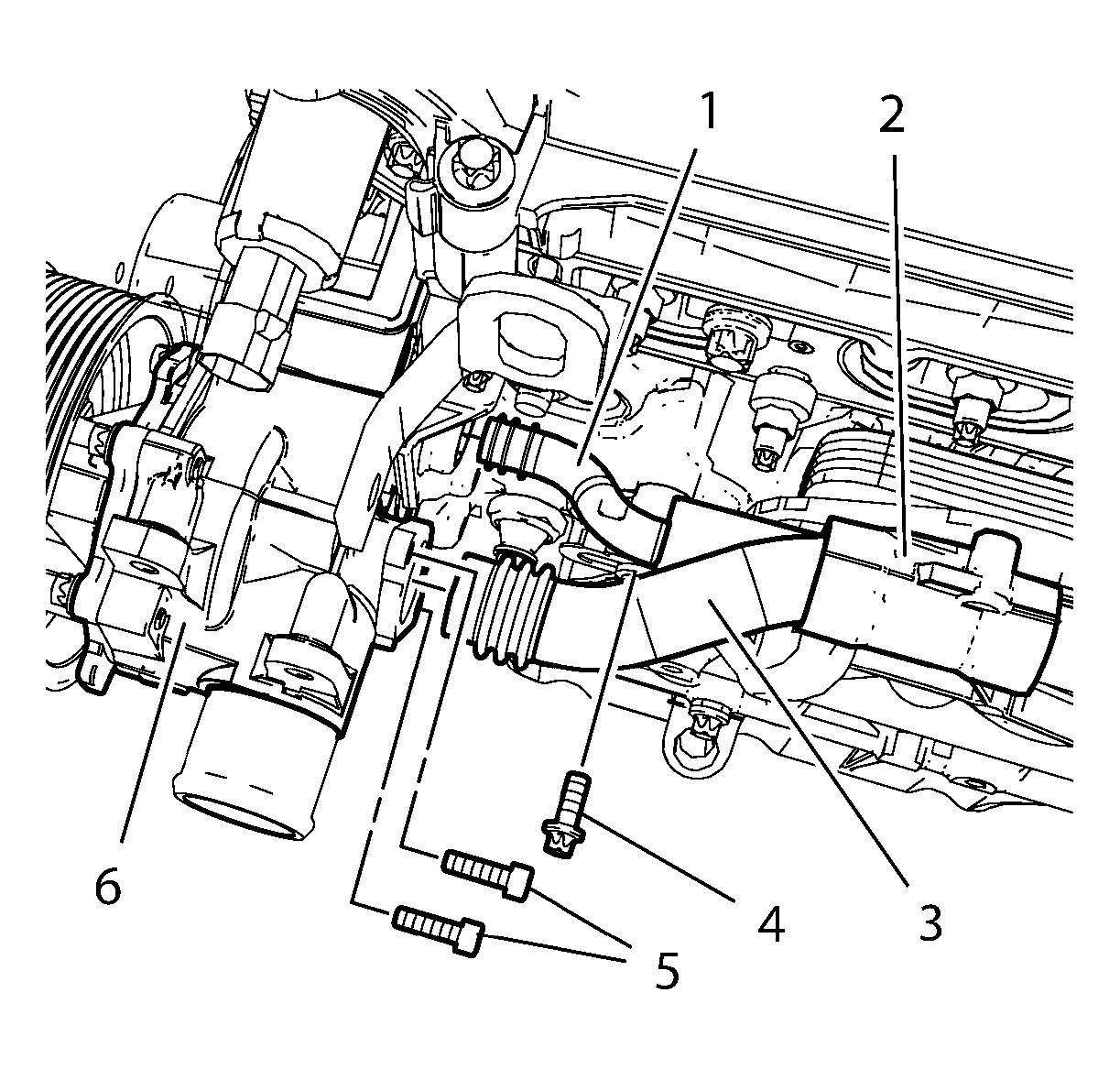

    Fig 2: Engine Oil Cooler Outlet Pipe And Bolts
    GM2027690Courtesy of GENERAL MOTORS COMPANY
  6. Install the engine oil cooler outlet pipe bolts (5) and tighten to 8 N.m (71 lb in).
  7. Push the engine oil cooler inlet pipe (1) into the water pump (6).
  8. Install the engine oil cooler inlet pipe bolt (4) and tighten to 8 N.m (71 lb in).
  9. Install the radiator outlet hose to the water pump. Refer to Radiator Outlet Hose Replacement (1.8L LUW and LWE) .
  10. Install the oil pan. Refer to Oil Pan Replacement (Manual Transmission)  and Oil Pan Replacement (Automatic Transmission) .
  11. Install the timing belt rear cover. Refer to Timing Belt Rear Cover Replacement .
  12. Install the generator. Refer to Generator Replacement (1.8L LUW and LWE) .
  13. Install the air conditioning compressor. Refer to Air Conditioning Compressor Replacement (1.8L LUW and LWE) .
  14. Install the exhaust manifold. Refer to Exhaust Manifold Replacement (1.8L LUW and LWE) .
  15. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  16. Fill the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill) and Cooling System Draining and Filling (Static Fill) .
  17. Close the hood.
