Ignition Coil Removal

Special Tools

EN-6009  Remover/Installer Ignition Module

For equivalent regional tools, refer to Special Tools .

1. Remove the cover of the DIS ignition coil in the direction of the arrow.
   NOTE: Note the arrow on the cover.
2. Remove the 2 ignition coil bolts.
3. Install the EN-6009  remover/installer (1).

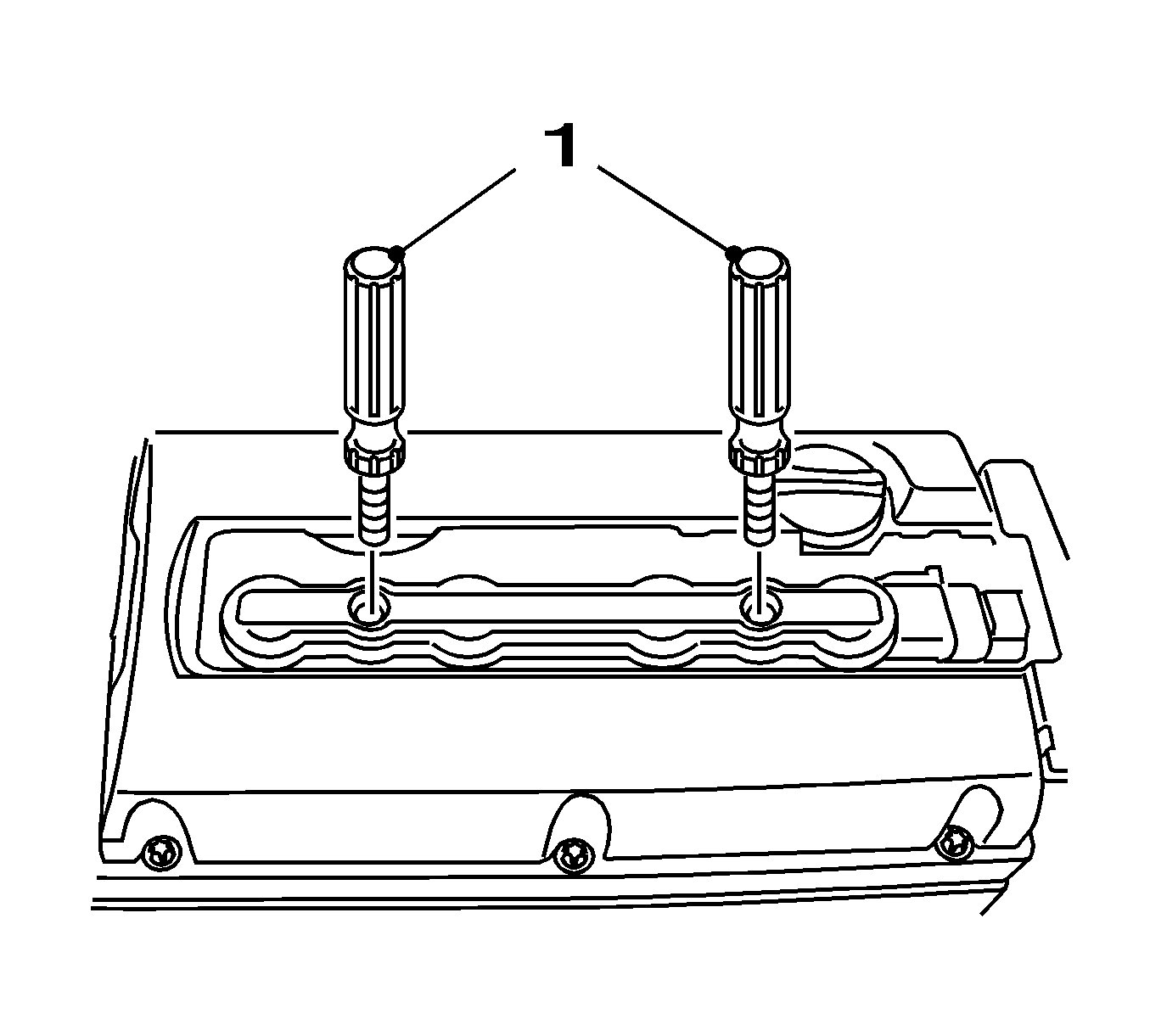

   Fig 1: View Of KM-6009

   Courtesy of GENERAL MOTORS COMPANY
4. Remove the ignition coil module (2) with the EN-6009  remover/installer (1).
   Fig 2: Ignition Coil Module And Special Tool

   Courtesy of GENERAL MOTORS COMPANY
