Special Tools
WARNING: This page is about a different variant/trim than selected.
| Illustration | Tool Number/Description |
|---|---|

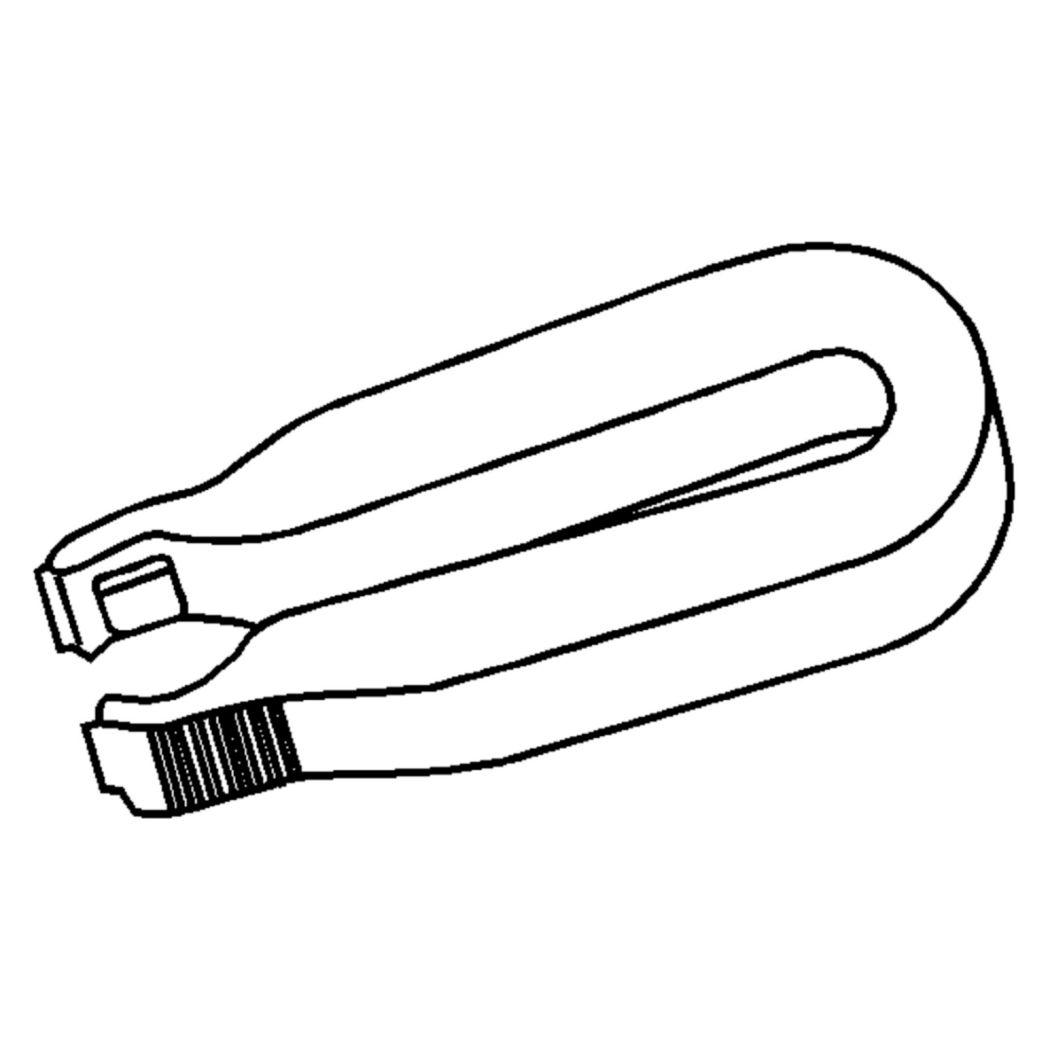

| 207649 Rod Hairpins |
|

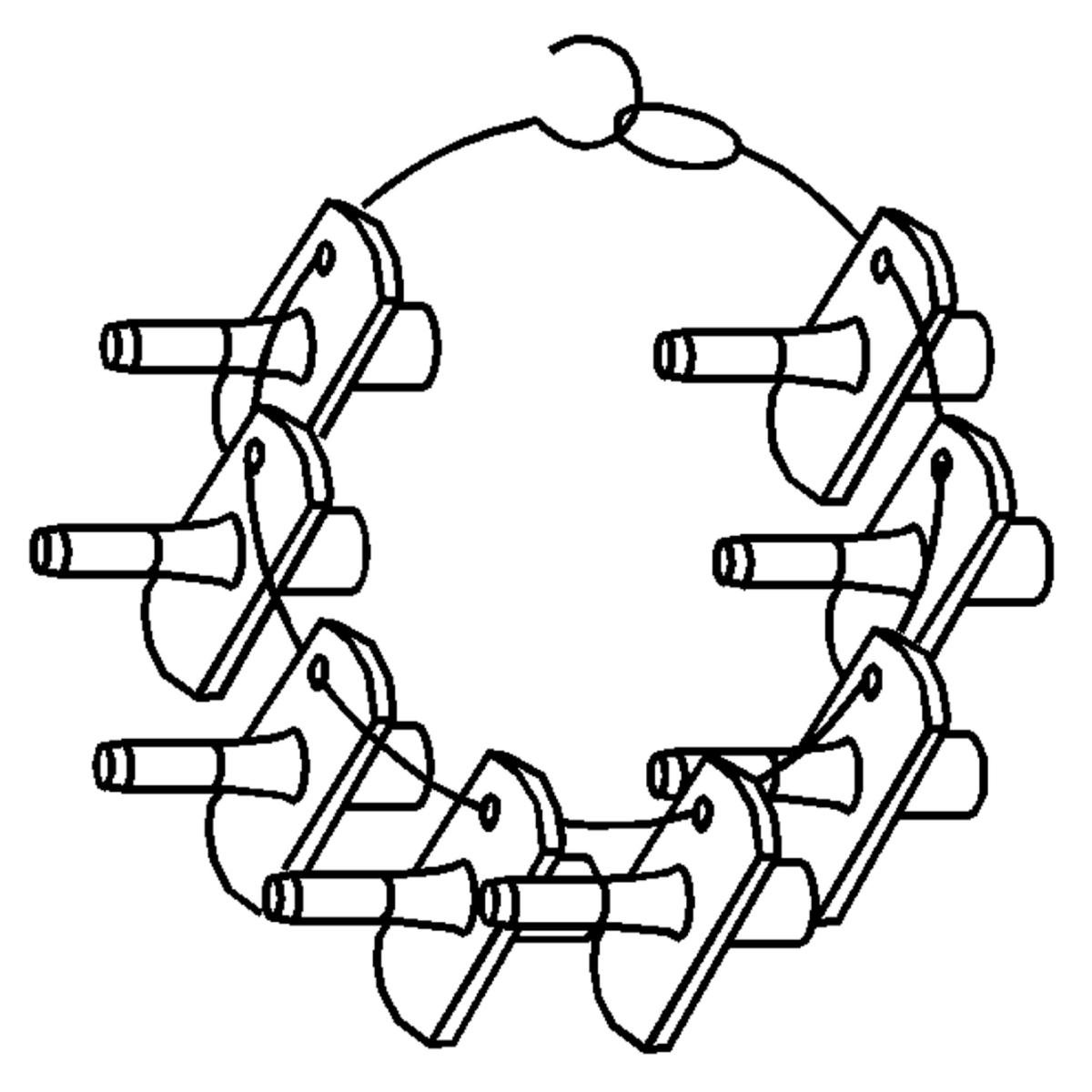

| 547324 Flange Screws |
|
| EN-232 KM-232 J-21867-L40 Oil Pressure Check Adapter |
|
| EN-235-6 KM-235-6 Installer |
|
| EN-328-B GE-328-B KM-328-B GE-6125-1B Remover |
|
| EN-422 KM-422 83 94 959 Installer |
|

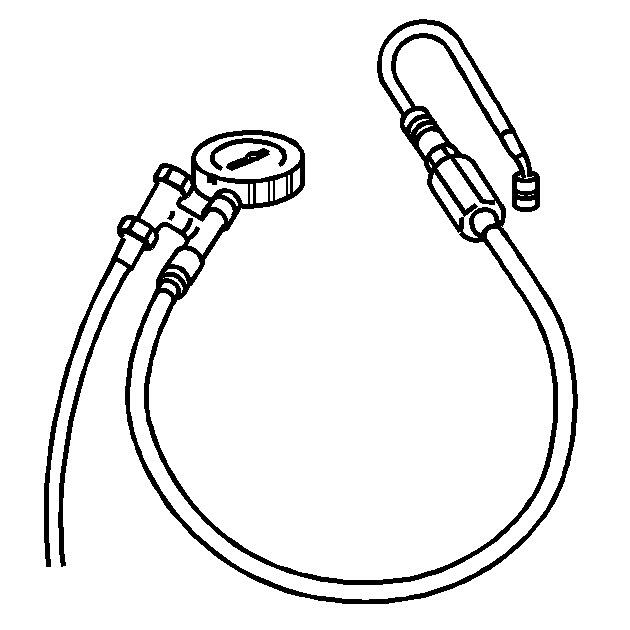

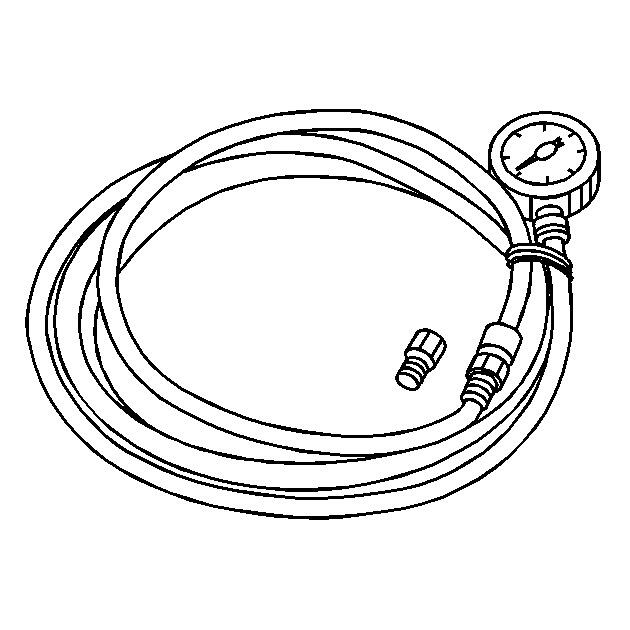

| EN-498-B GE-21867-A J-21867-A KM-498-B CH-48027 Pressure Gauge and Adapter Set |
|
| EN-652 KM-652 Flywheel Holder |
|
| EN-658-1 KM-658-1 J-35264 Installer |
|
| EN-796 KM-796-A Dismantler |
|
| CH-807 KM-807 Closure Plugs |
|
| EN-840 KM-840 EN-46116 83 94 157 Remover |
|
| EN-845 KM-845 Suction Device |
|
| EN-849 KM-849 Assembly Tray |
|
| EN-958 KM-958 Valve Stem Seal Installer |
|
| EN-6009 KM-6009 83 96 335 J-43301 Remover/Installer |
|
| EN-6333 KM-6333 Locking Pin |
|
| EN-6340 KM-6340 Locking Tool |
|
| EN-6349 KM-6349 Locking Pin |
|
| EN-6351 KM-6351 Assembly Sleeves |
|
| EN-6361 KM-6361 Feeler Gauge Set |
|
| EN-6624 KM-6624 Remover |
|
| EN-6625 KM-6625 Flywheel Locking Device |
|
| EN-6628-A KM-6628-A Locking Tool |
|
| EN-8087 J-8087 Cylinder Bore Gauge |
|
| EN-28467-B J-28467-B Universal Engine Support Fixture |
|
| EN-34730-91 KM-34730-91 Pressure Tester |
|
| EN-36857 J-36857 Engine Lift Bracket |
|
| EN-43405 J-43405 Support Foot Set |
|
| EN-45000 KM-45000 J-45000 Seal Remover |
|
| EN-45059 J-45059 Angle Meter |
|
| GE-571-B MKM-571-B GE-8001 J-8001 Dial Gauge |
|
| GE-22738-B J-22738-B Valve Spring Tester |
|
| J-37088-A KM-37088A Fuel Line Disconnect Tool Set |
|
| EN-50717-1 Stands |
|
| EN-50717-2 Compressor |
|
| EN-8062 J-8062 Valve Spring Compressor |
