Engine Flywheel Installation

Special Tools

• EN-652  Flywheel Holder
• EN-45059  Torque Angle Sensor Kit

For equivalent regional tools, refer to Special Tools .

1. Install the crankshaft position reluctor ring (1).

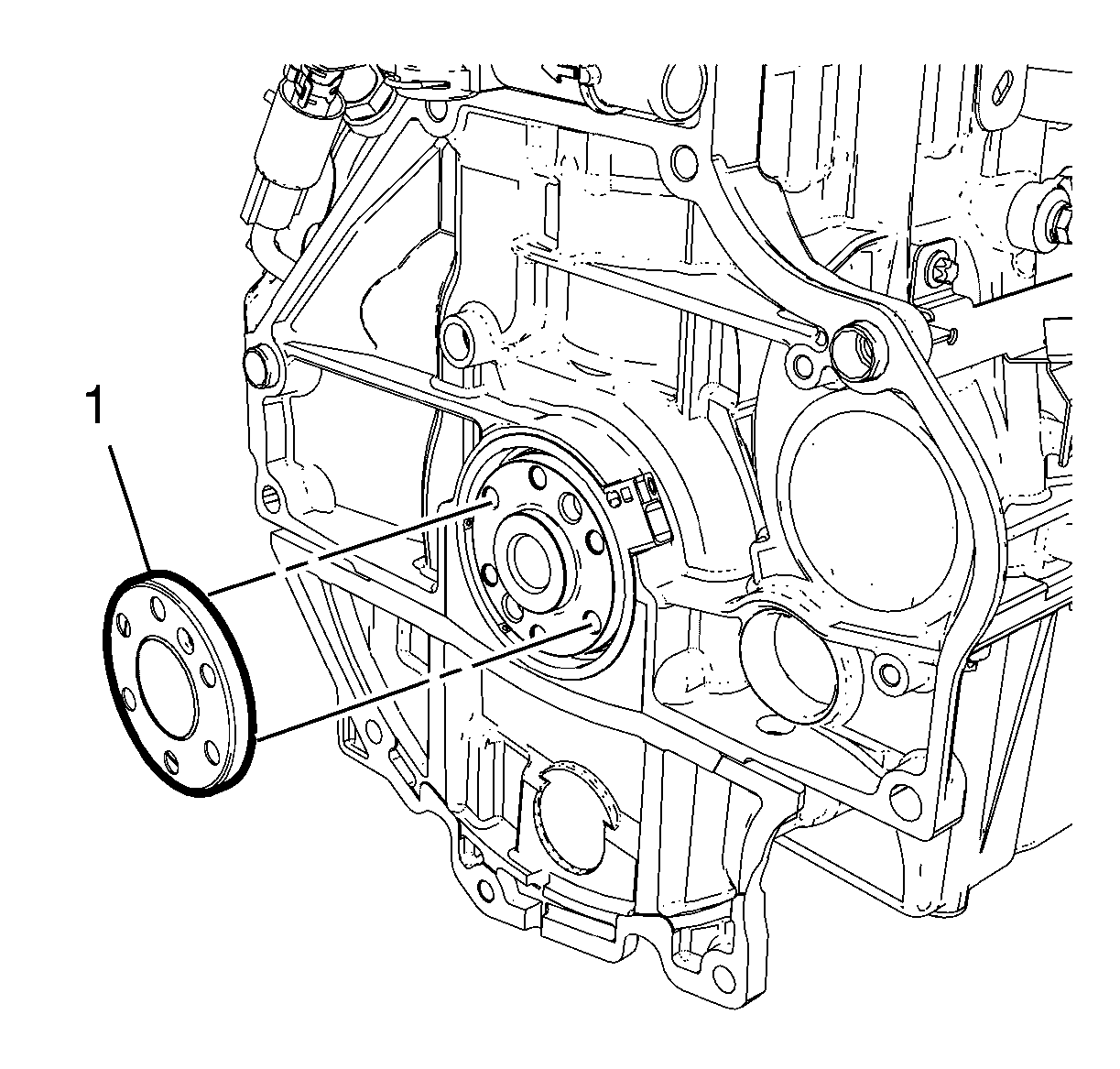

   Fig 1: Crankshaft Position Reluctor Ring

   Courtesy of GENERAL MOTORS COMPANY
2. Install the flywheel (2).

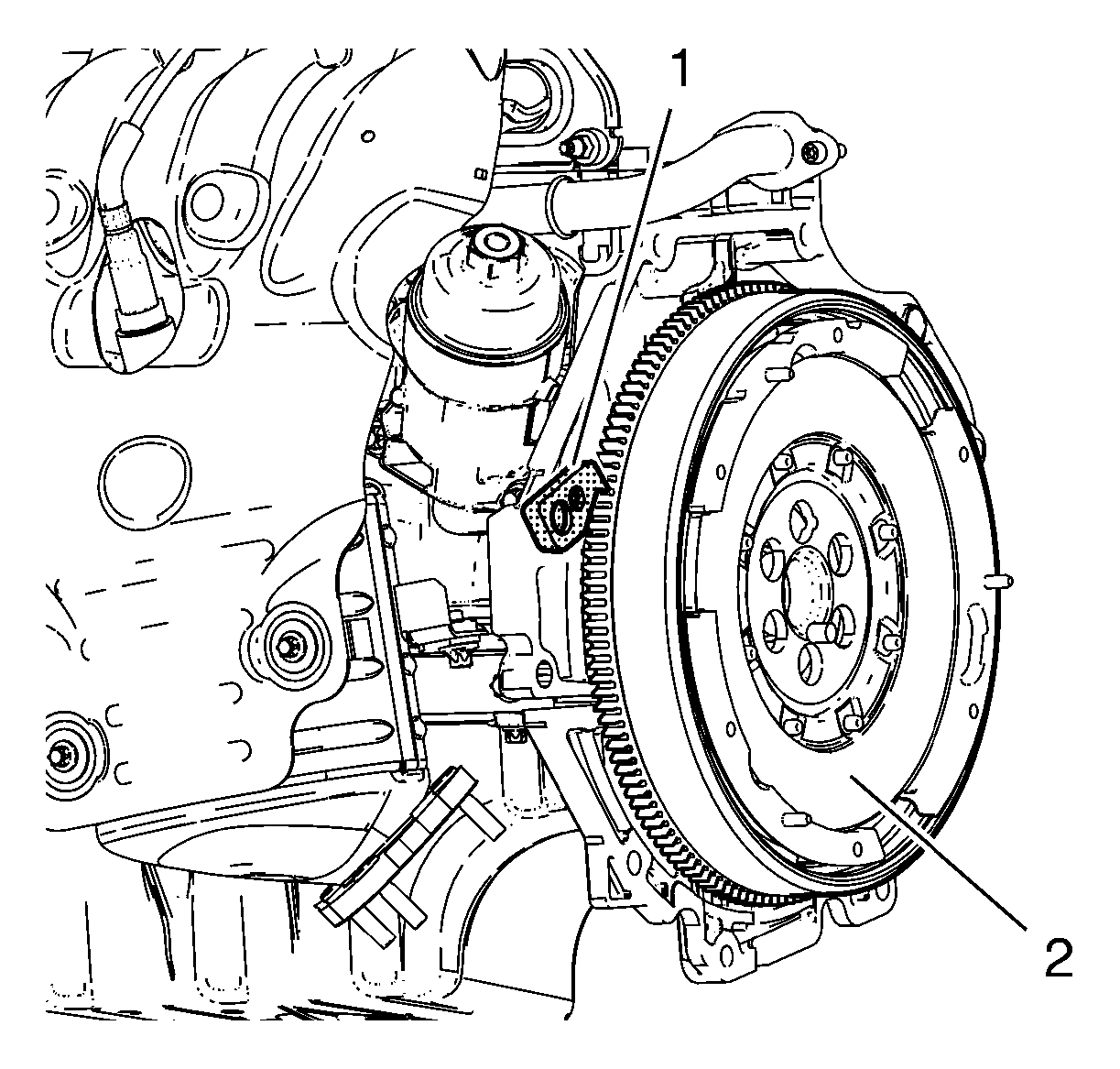

   Fig 2: Flywheel And Flywheel Holder

   Courtesy of GENERAL MOTORS COMPANY
3. Install the EN-652  holder (1).
4. Install the 6 NEW flywheel bolts (1, 2) and tighten the bolts in 3 passes using the EN-45059  sensor kit:

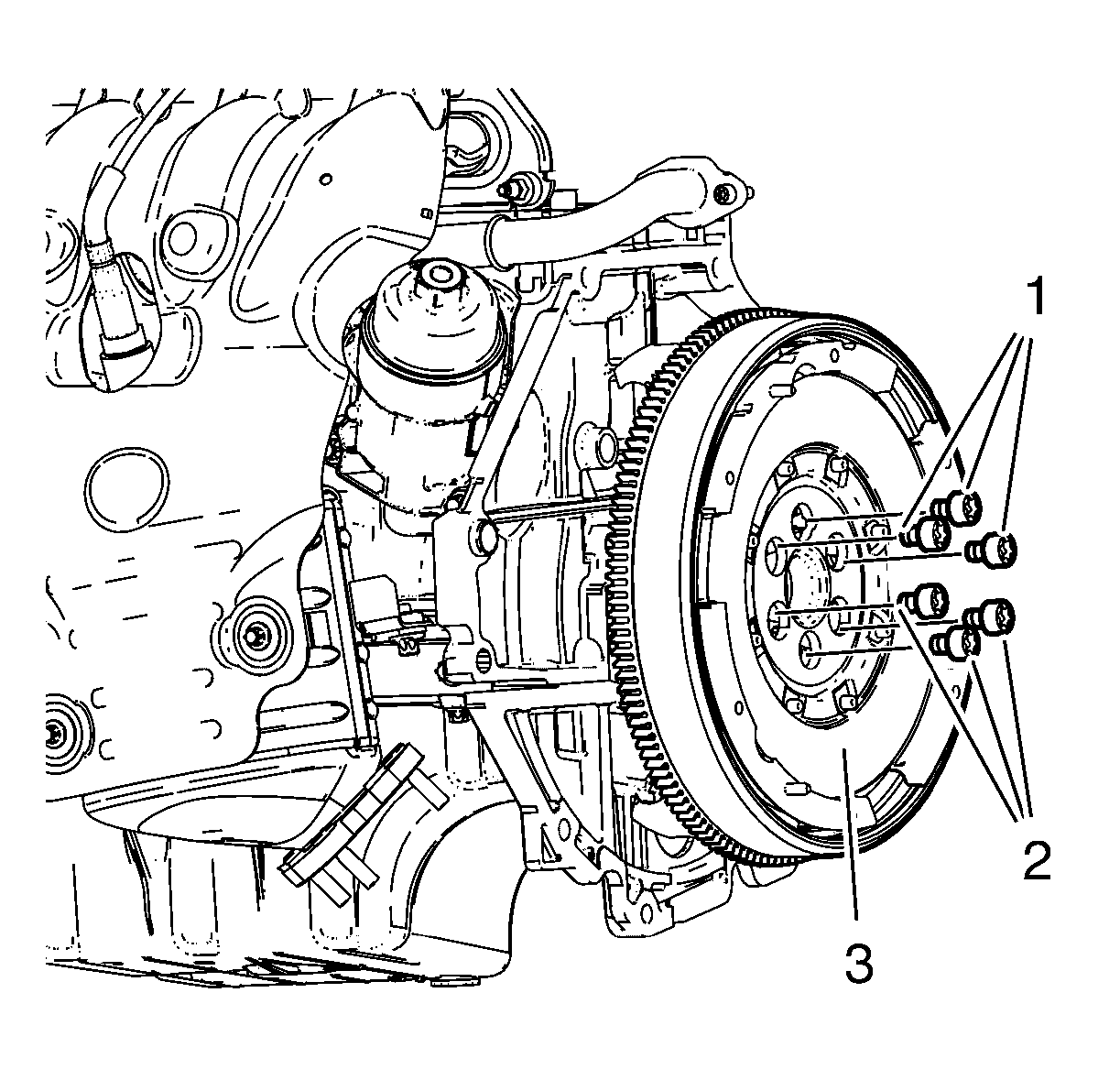

   Fig 3: Flywheel And Bolts

   Courtesy of GENERAL MOTORS COMPANY
   CAUTION: Refer to Fastener Caution .
   CAUTION: Refer to Torque-to-Yield Fastener Caution .
   1. First pass to 60 N.m (44 lb ft).
   2. Second pass to additional 45°.
   3. Third pass to an additional 15°.
5. Remove the EN-652  holder.
