Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the transmission rear mount (2).

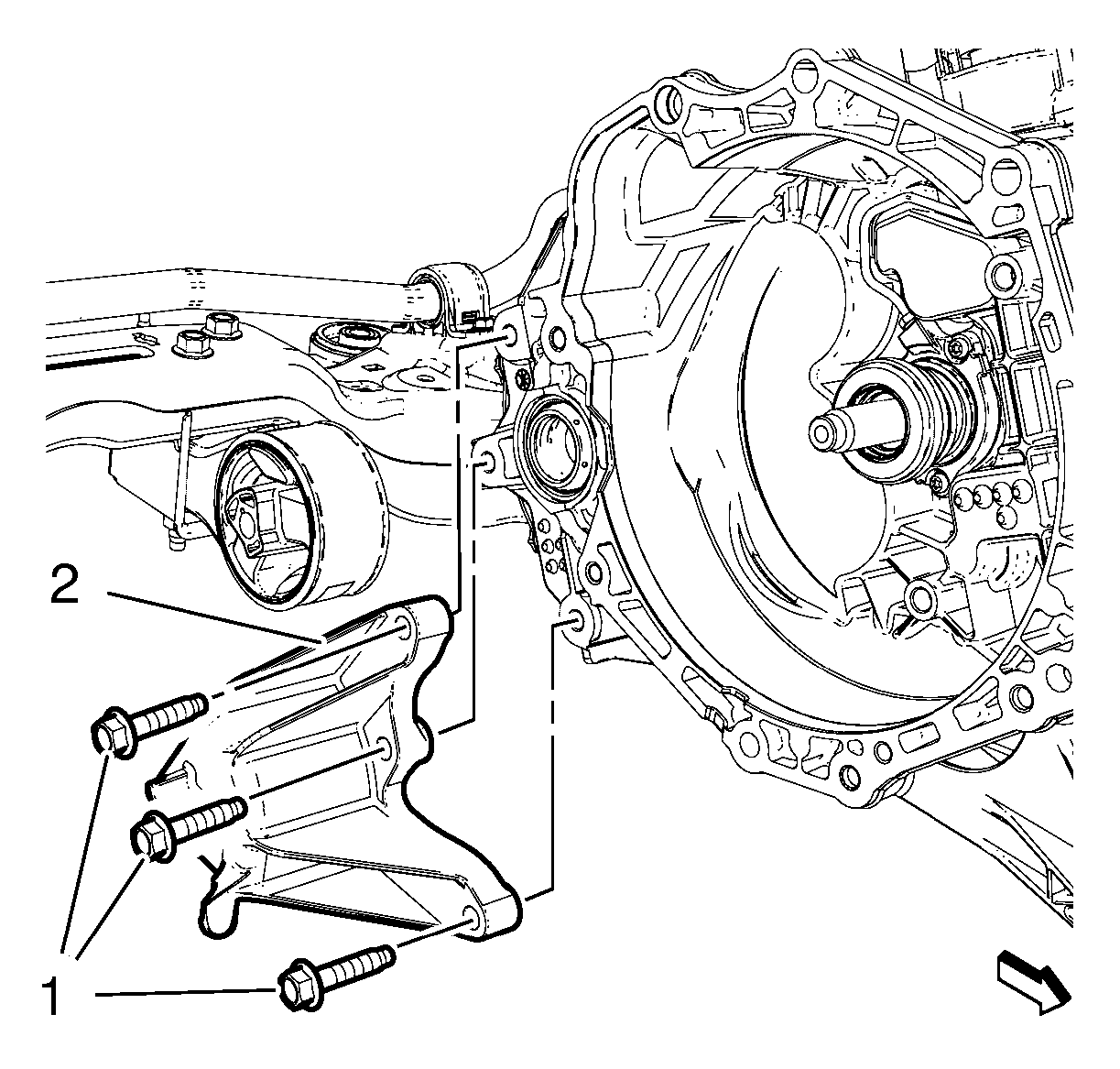

    Fig 1: Transmission Rear Mount And Bolts
    GM2191539Courtesy of GENERAL MOTORS COMPANY
  2. Install the 3 transmission rear mount bolts (1) and tighten to 100 N.m (74 lb ft).
    CAUTION: Refer to Fastener Caution .
  3. Install the transmission rear mount bolt (1) and tighten to 100 N.m (74 lb ft).

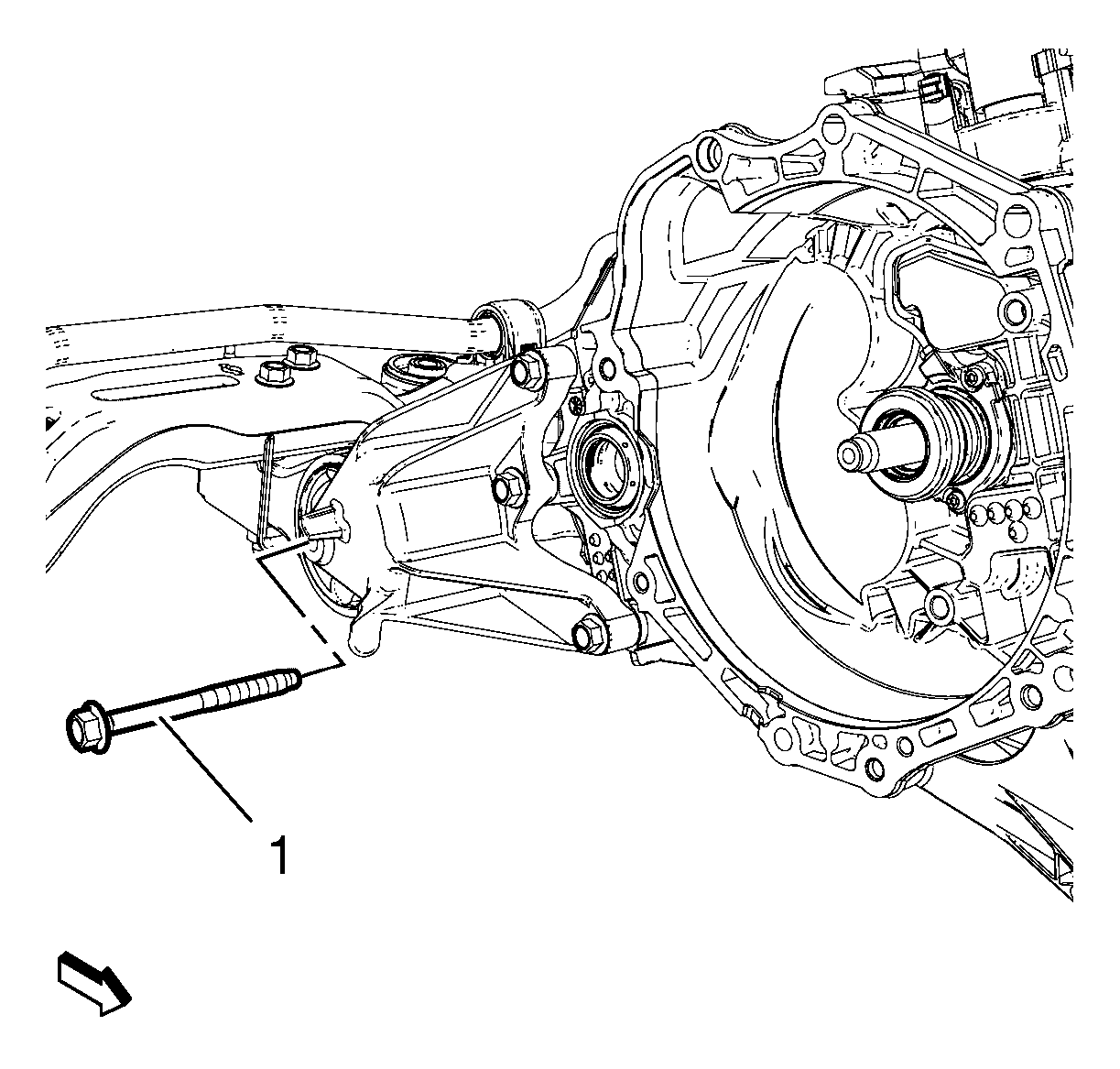

    Fig 2: Transmission Rear Mount Bolt
    GM2191538Courtesy of GENERAL MOTORS COMPANY
  4. Remove the jack stand.
  5. Install the 3 exhaust flexible pipe to catalytic converter nuts. Refer to Catalytic Converter Replacement (1.8L LUW and LWE) , Catalytic Converter Replacement (1.4L LUV) or Catalytic Converter Replacement (2.0L Diesel LUZ) .
  6. Lower the vehicle.
