Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission control lever trim cover. Refer to Automatic or Manual Transmission Control Lever Trim Cover Replacement .
  2. Remove the front floor console storage tray. Refer to Front Floor Console Stowage Tray Replacement .
  3. Lift upward and disengage but DO NOT remove both cable Lock adjusters (1) to release the internal cable assembly, one for each cable.
    Fig 1: Shift Lever And Select Lever Cable Adjust Locks
    GM2027556Courtesy of GENERAL MOTORS COMPANY
  4. Lock the position of the shift control lever with DT-527-A  adjuster (1) or a (5 mm 0.2 in) drill bit.
    Fig 2: Shift Control Lever
    GM2027649Courtesy of GENERAL MOTORS COMPANY
    NOTE: The hole of the shift control lever must be aligned to the hole in the shifter base so the pin (1) can pass through both. The shift control lever will be locked in the 1-2 neutral position. Not using the specified tools may lead to improper shift system adjustment.

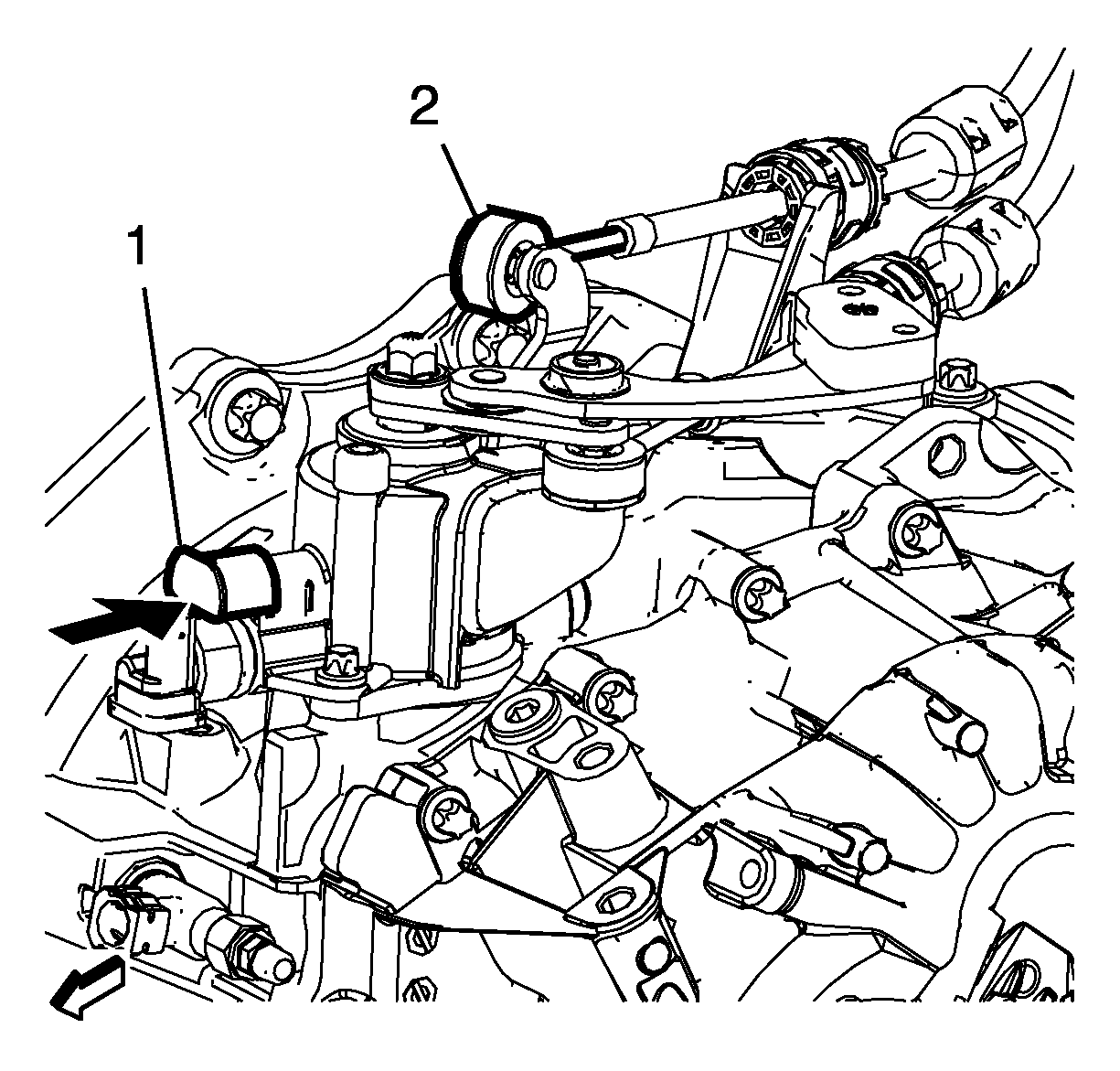

  5. Block the shift control housing, push the selector lever (2) backwards and push (arrow) the blocking device (1) towards the shift control housing.
    Fig 3: Selector Lever
    GM2859276Courtesy of GENERAL MOTORS COMPANY
