Section 3 (Engine Mechanical - 2.0L (LUZ) Diesel)
>>
Schematic Wiring Diagrams
>>
Engine Mechanical Wiring Schematics
>>
Oil Level and Pressure Control
Oil Level and Pressure Control
WARNING:
This page is about a different variant/trim than selected.

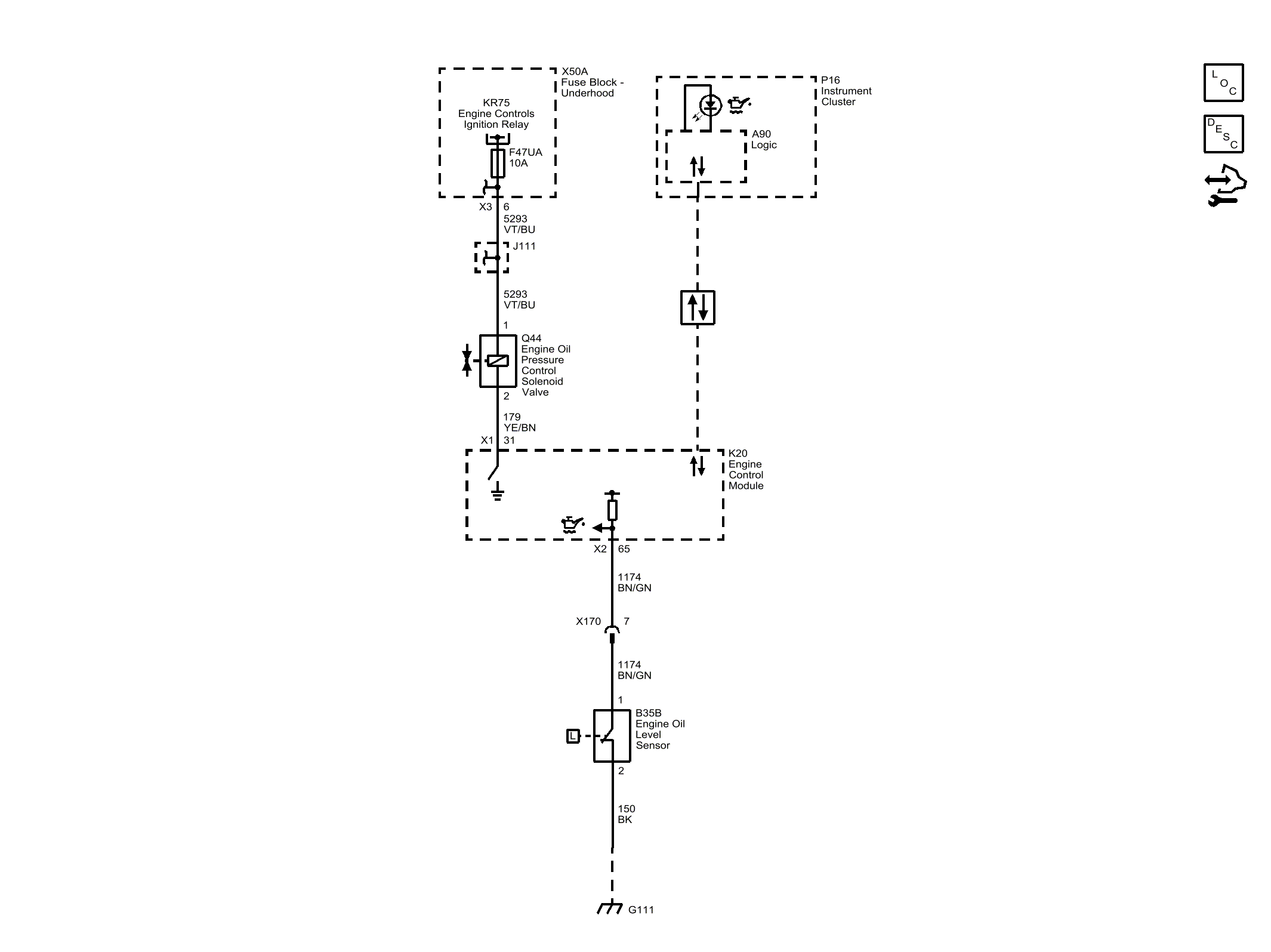

Fig 1: Oil Level and Pressure Control
Courtesy of GENERAL MOTORS COMPANY
