Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the timing belt tensioner (1) and loosely install the timing belt tensioner bolt (2).

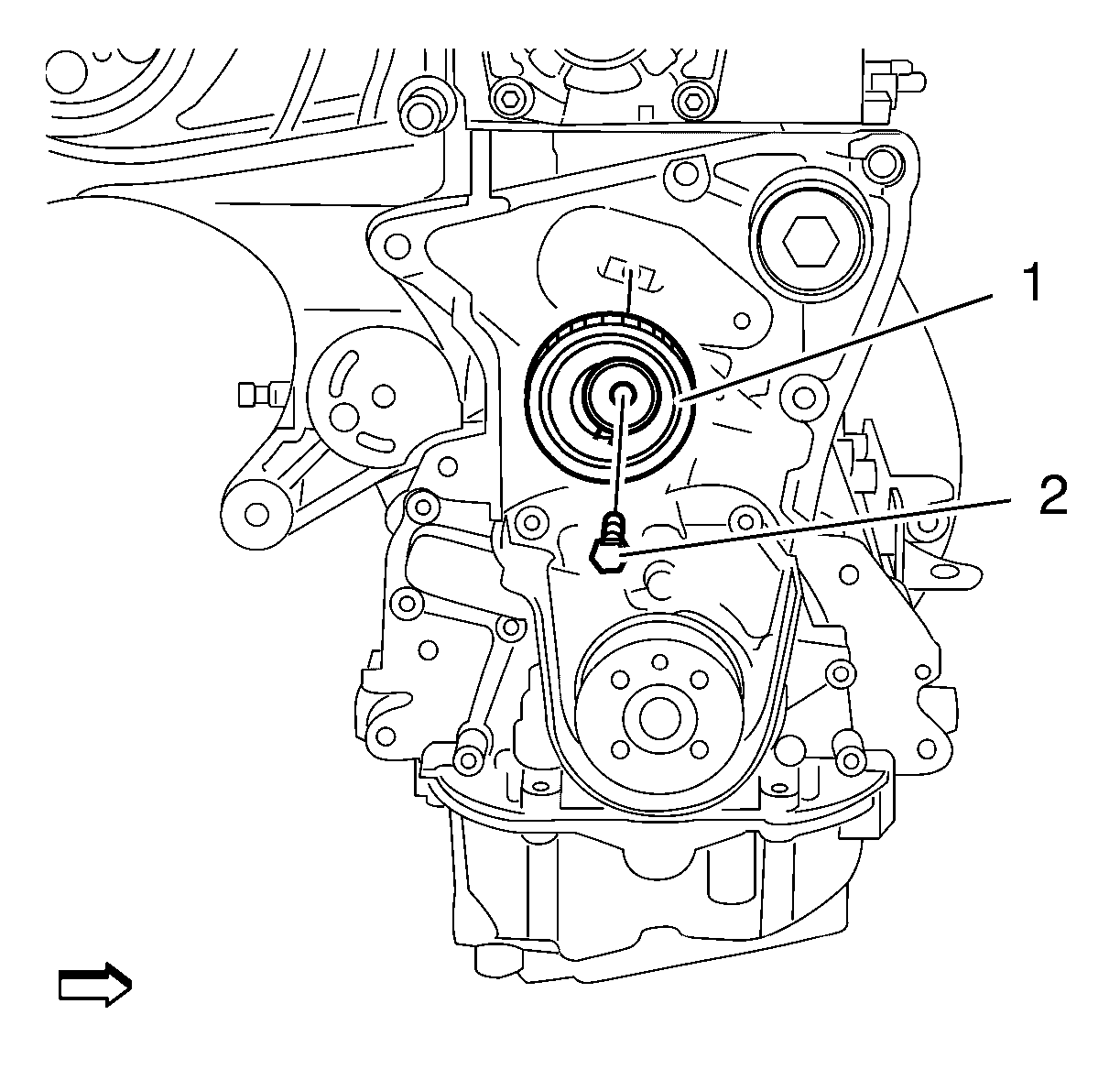

    Fig 1: Timing Belt Tensioner Bolt
    GM2190707Courtesy of GENERAL MOTORS COMPANY
    NOTE: Finally tighten the timing belt tensioner bolt after installing the timing belt.
  2. Install the timing belt. Refer to Timing Belt Replacement (New Belt)  and Timing Belt Replacement (Used Belt) .
  3. Close the hood.
