Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the timing belt tensioner bracket (1).

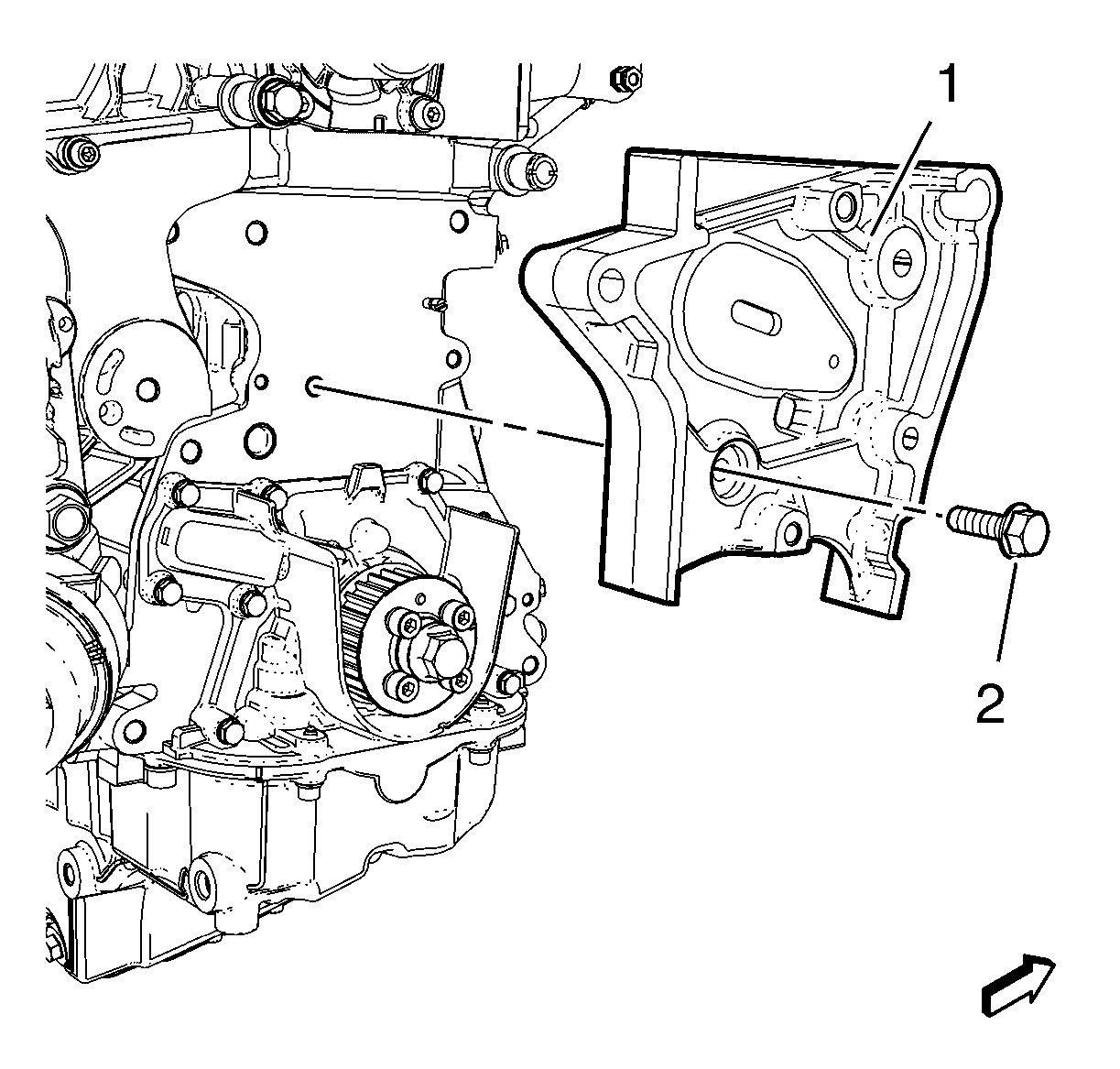

    Fig 1: Timing Belt Tensioner Bracket
    GM2190699Courtesy of GENERAL MOTORS COMPANY
  2. Install the timing belt tensioner bracket bolt (2) and tighten to 25 N.m (19 lb ft).
    CAUTION: Refer to Fastener Caution .
  3. Install the timing belt idler pulley - lower. Refer to Timing Belt Idler Pulley Replacement - Lower .
  4. Install the timing belt tensioner. Refer to Timing Belt Tensioner Replacement .
  5. Install the timing belt. Refer to Timing Belt Replacement (New Belt)  and Timing Belt Replacement (Used Belt) .
  6. Close the hood.
