Oil Pump Suction Pipe Replacement

WARNING: This page is about a different variant/trim than selected.

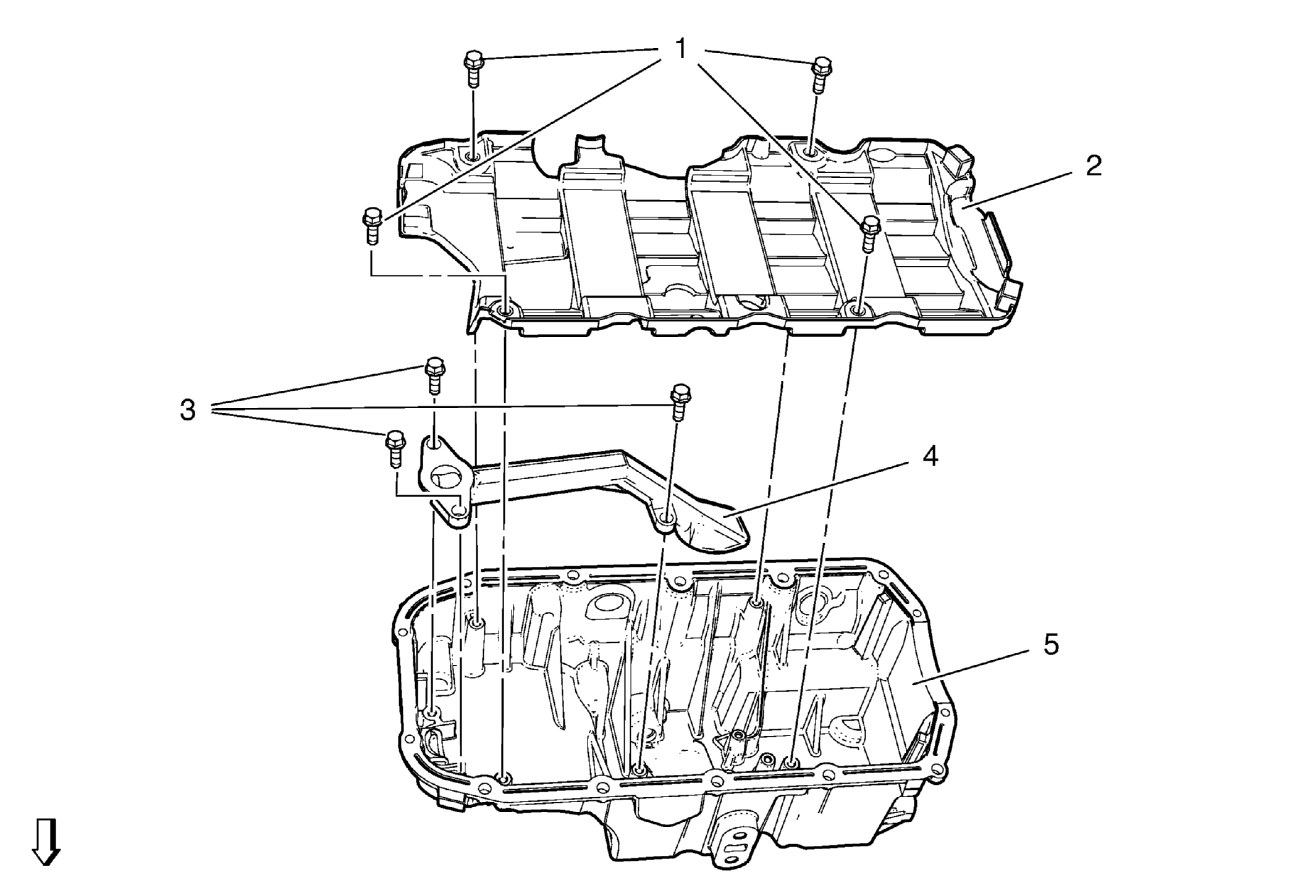

Fig 1: Oil Pump Suction Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the hood. Remove the oil pan. Refer to Oil Pan Replacement .
1	Oil Pan Baffle Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Oil Pan Baffle
3	Oil Pump Suction Pipe Bolt (Qty: 3) Tighten 9 N.m (80 lb in)
4	Oil Pump Suction Pipe TIP: Guarantee that no dirt contaminate the oil pump suction pipe.
5	Oil Pan
